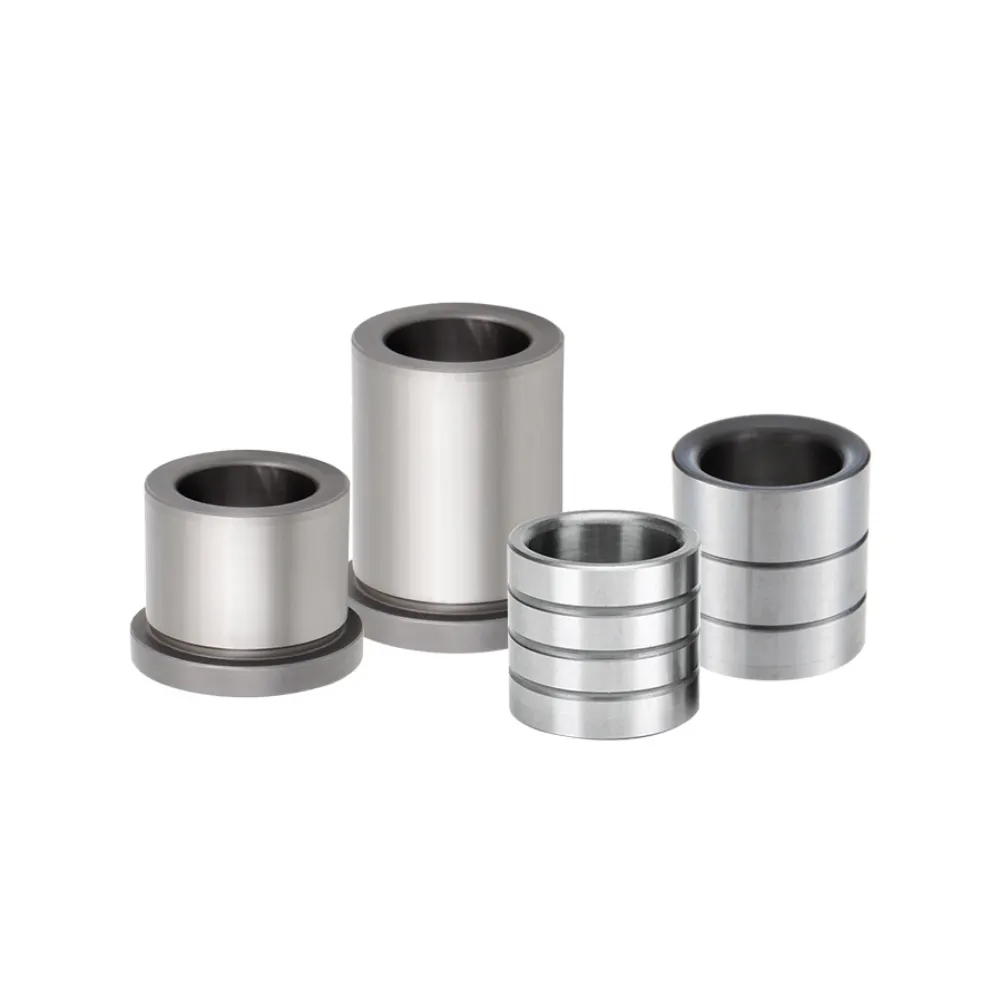

Ejector Plate Guide Bushing
Ejector Plate Guide Bushing is a key mold component used to support controlled movement of ejector plates within injection systems. It helps maintain accurate alignment during the ejection phase and ensures stable operation throughout repetitive molding cycles. Designed for industrial use, it delivers dependable performance, consistent motion behavior, and reliable functionality in precision tooling environments.
- Position Control: Improves ejector tracking accuracy
- Cycle Consistency: Maintains uniform operation rhythm
- Impact Absorption: Reduces shock during movement
- Maintenance Efficiency: Lowers servicing requirements
Product Description
Introduction
Ejector Plate Guide Bushing is a precision mold component designed to ensure accurate alignment and smooth movement of ejector plates in injection molds and die systems. It works together with guide pillars to maintain stable positioning of the ejection system during repeated opening and closing cycles. This helps improve molding accuracy, reduce mechanical deviation, and ensure consistent production quality in high-volume manufacturing environments.
Manufactured from high-quality bearing steel or hardened tool steel, Ejector Plate Guide Bushing provides excellent wear resistance, high strength, and long service life. Advanced CNC machining, precision internal grinding, and heat treatment processes ensure tight dimensional tolerances up to ±0.002 mm. The finely polished inner surface actively reduces friction between moving components, allowing smooth guiding performance even under continuous high-speed operation. This enhances system stability and reduces maintenance requirements over long-term use.
Ejector Plate Guide Bushing is widely applied in injection molding, plastic product manufacturing, automotive components, household appliance parts, and precision industrial tooling systems. It is suitable for both standard mold bases and customized mold structures, offering flexible design options such as inner diameter, outer diameter, length, and lubrication features. Its reliable performance makes it an essential component for maintaining stable ejector movement, improving mold efficiency, and ensuring long-term operational durability in demanding industrial environments.
Specifications
| Item | Description |
|---|---|
| Product Name | Ejector Plate Guide Bushing |
| Material | Bearing Steel / Hardened Tool Steel |
| Hardness | HRC 58–62 |
| Tolerance | ±0.002 mm |
| Inner Diameter | Standard or Customized |
| Outer Diameter | Standard or Customized |
| Length | Customized |
| Surface Finish | Precision Ground / Polished |
| Lubrication Type | Oil Groove Optional |
| Manufacturing Process | CNC Machining + Grinding + Heat Treatment |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Precise Ejection Alignment
Ejector Plate Guide Bushing ensures accurate positioning of ejector plates during mold opening and closing, helping maintain stable movement and reducing misalignment in repeated injection molding cycles.
Smooth Cycle Operation
It supports consistent motion of the ejector system, allowing stable performance during continuous production and improving overall efficiency in high-speed molding environments.
High Structural Strength
Manufactured from hardened steel materials, it withstands repeated mechanical stress and impact loads, ensuring reliable durability in demanding industrial applications.
Reduced Friction Loss
Precision-machined internal surfaces minimize contact resistance, promoting smoother movement and improving energy efficiency while extending component service life.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is an Ejector Plate Guide Bushing used for?
It is used in injection mold systems to guide and stabilize the movement of ejector plates during the ejection process.
2. How does an Ejector Plate Guide Bushing work?
It works with guide pillars to ensure precise alignment and smooth linear movement of the ejector system.
3. What materials are used for Ejector Plate Guide Bushing?
It is typically made from hardened steel or bearing steel for high strength and wear resistance.
4. Where is Ejector Plate Guide Bushing commonly applied?
It is widely used in plastic injection molds, automotive parts, household appliances, and precision tooling systems.
5. Can Ejector Plate Guide Bushing be customized?
Yes, it can be customized in size, tolerance, material, and lubrication design according to application needs.
