Product Description
Introduction

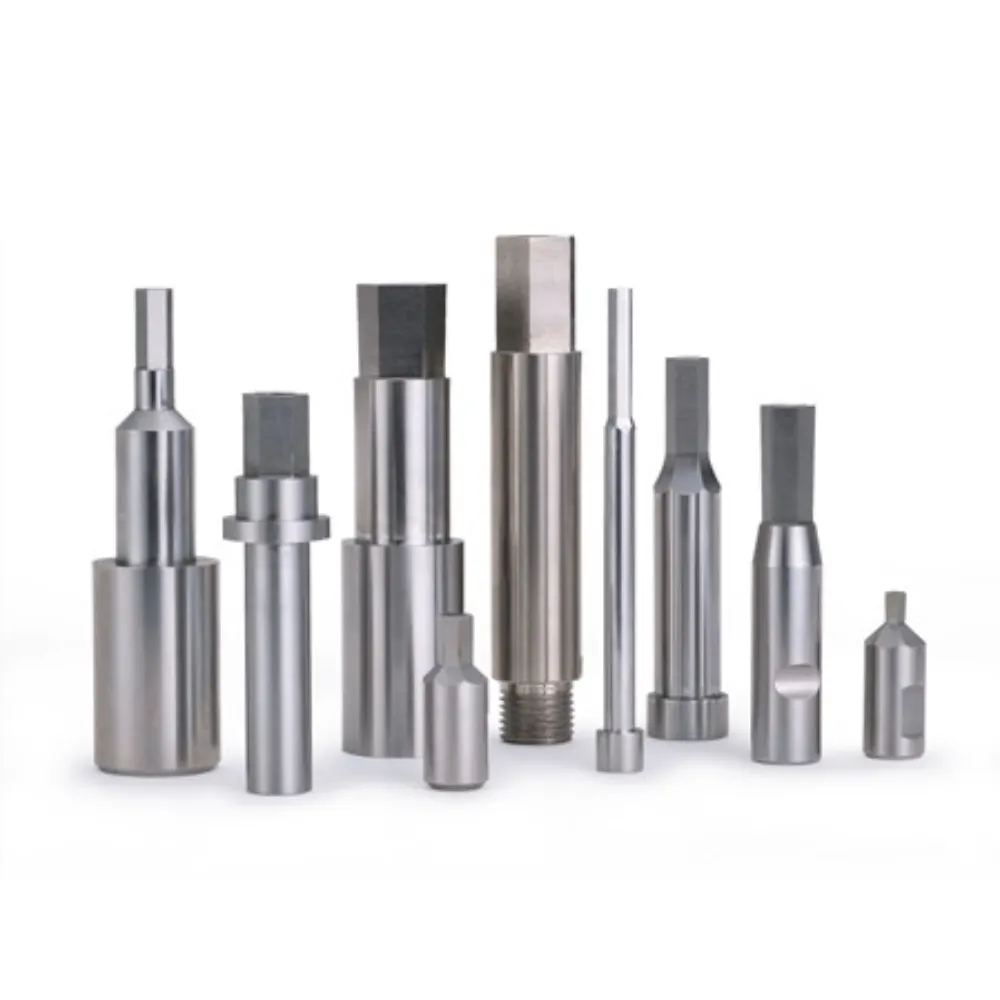

Hexagonal Punch is a precision tooling component designed for forming accurate hexagon-shaped holes in sheet metal parts. It is widely used in stamping die and progressive die systems where consistent geometry and high repeatability are required. Manufactured from premium tool steel, high speed steel, or tungsten carbide, it delivers excellent hardness, wear resistance, and structural stability for demanding industrial applications.
Produced through advanced CNC machining and precision grinding processes, Hexagonal Punch achieves tight dimensional tolerances up to ±0.002 mm. Vacuum heat treatment enhances material strength and ensures stable performance under continuous high-speed stamping conditions. Its optimized cutting geometry reduces punching resistance, improves forming efficiency, and helps extend tool service life in mass production environments.
Hexagonal Punch is widely applied in automotive manufacturing, electronics, connectors, terminals, and precision hardware industries. It is suitable for various stamping operations including punching, forming, and shaping hexagonal openings used for fastening and assembly structures. Custom specifications such as size, length, material grade, and surface coatings like TiN or TiCN can be produced according to customer requirements, making it a flexible and reliable solution for OEM tooling and non-standard die applications.
Technical Specifications
| Item | Description |
|---|---|
| Product Name | Hexagonal Punch |
| Shape | Hexagon |
| Material | Tool Steel / HSS / Carbide |
| Hardness | HRC 58–68 (depending on material) |
| Tolerance | ±0.002 mm |
| Size Range | Customized |
| Surface Finish | Precision Ground |
| Heat Treatment | Vacuum Heat Treatment |
| Manufacturing Process | CNC Machining + Grinding |
| Customization | OEM/ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Precise Hex Shape Formation
Hexagonal Punch delivers accurate six-sided hole geometry with consistent alignment, ensuring high precision in stamping applications and stable assembly fit in downstream manufacturing processes.
High Wear Resistance
Made from tool steel, HSS, or carbide, it offers strong wear resistance, maintaining cutting edge integrity during long-term high-volume stamping operations.
Reduced Punching Resistance
Optimized cutting design lowers friction during penetration, improving efficiency, reducing machine load, and enhancing overall stamping productivity.
Long Service Life
Advanced heat treatment and precision finishing extend tool durability, minimizing replacement frequency and reducing maintenance costs in continuous production environments.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Tolerance Precision Up to ±0.002mm
Selected authentic ingredients 1 piece is equivalent to 5 pieces
Batch processing and customization based on drawings, free sampling.
Application Range
The preferred choice across various industries.
