Precision CNC Machining for Robot Gearbox Housings

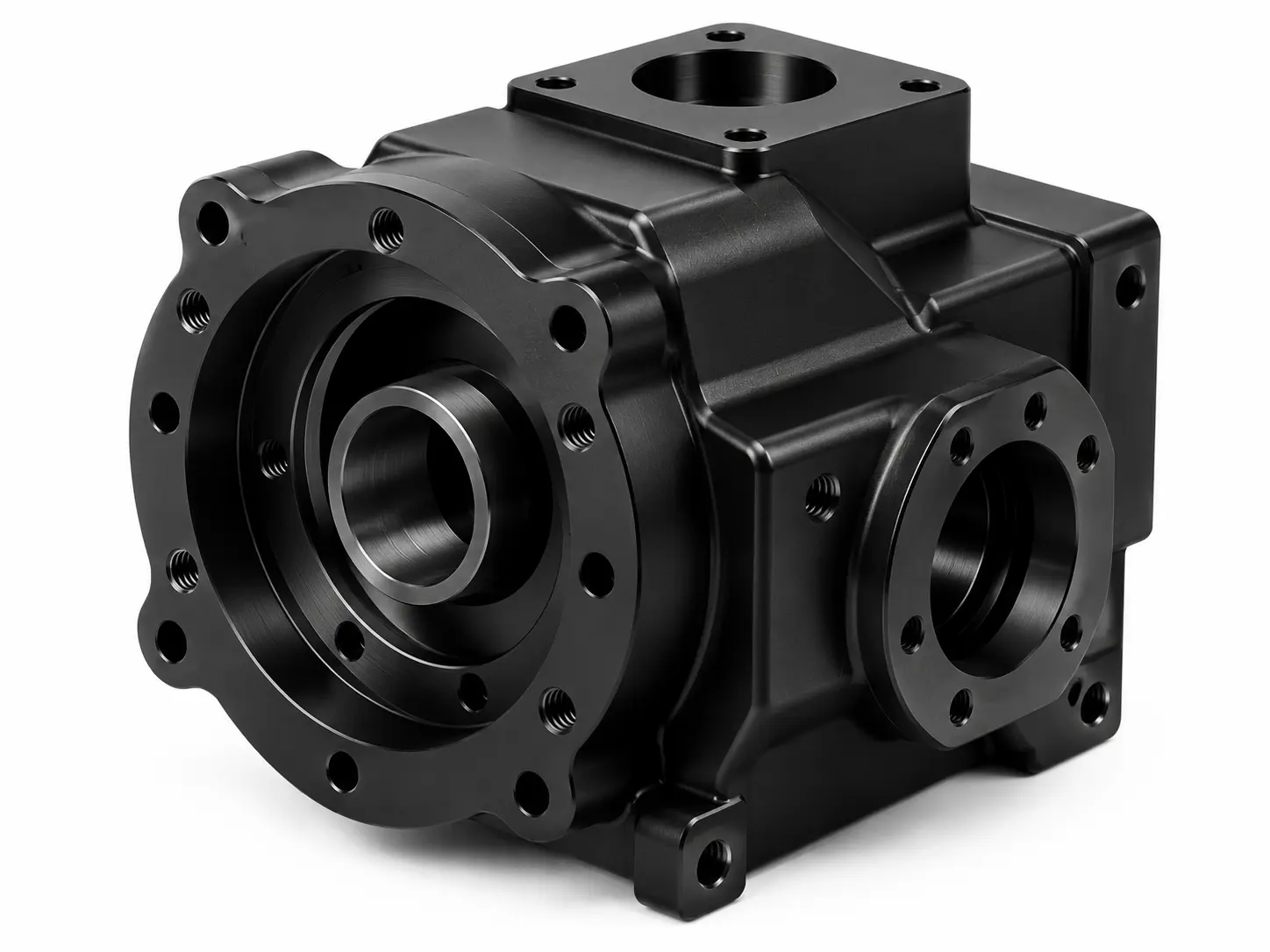

Robot Gearbox Housing CNC Machining
Precision CNC machining for robot gearbox housings with bearing seats, shaft bores, gear cavities, sealing surfaces, lubrication features, and critical transmission interfaces. Supports complex geometry, tight GD&T, 5-axis machining, and prototype-to-low-volume production.
- Precision Bearing Seats & Shaft Bores
- Multi-Bore Alignment & Runout Control
- 5-Axis CNC for Complex Gear Cavities
- Sealing & Lubrication Features
- Prototype & Low-Volume Production
Product Description
Introduction

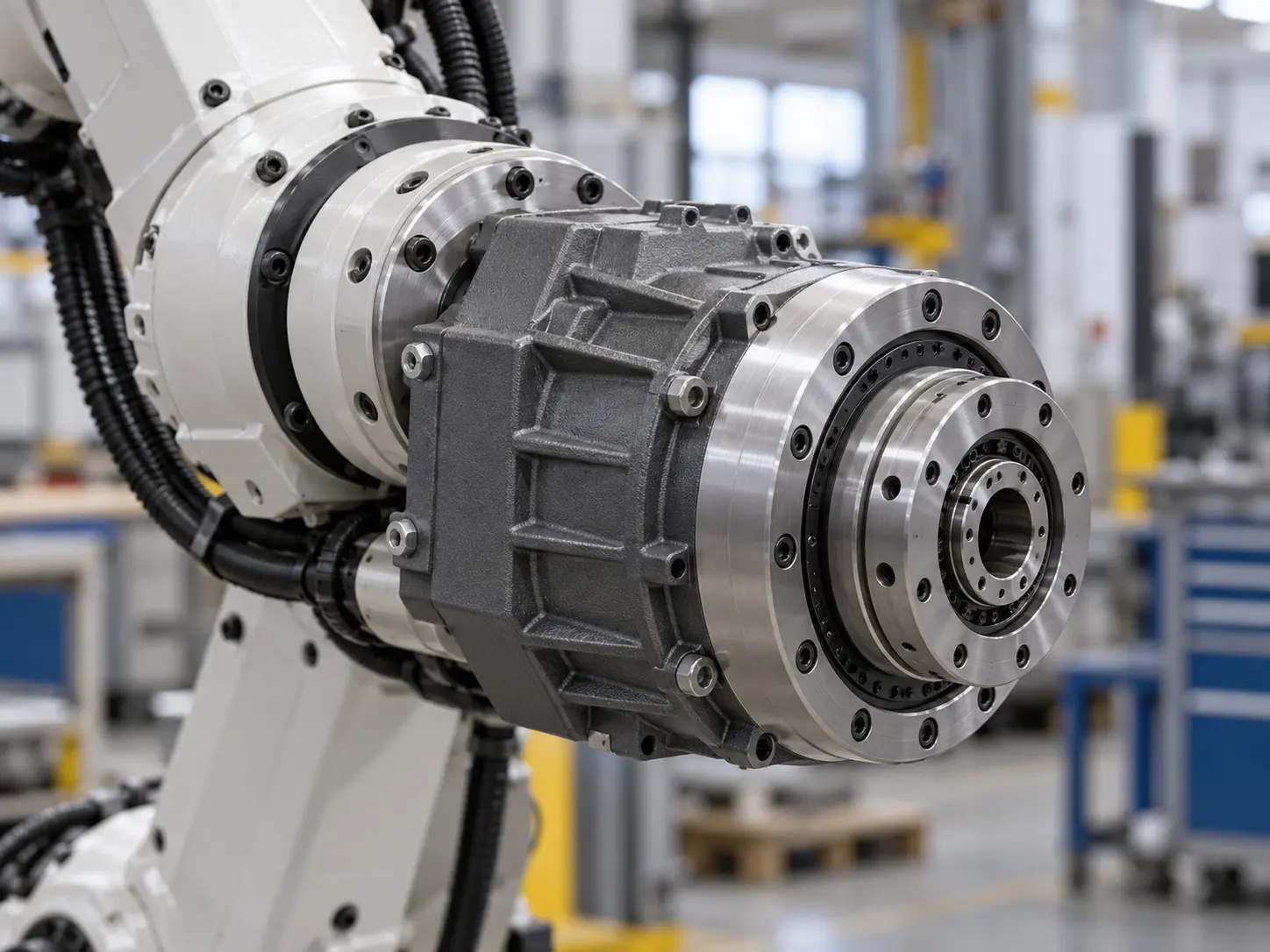

Robot Gearbox Housing CNC Machining is used to manufacture precision housings for robotic transmission systems where accurate gear alignment, bearing positioning, shaft support, rigidity, and repeatable motion are critical.

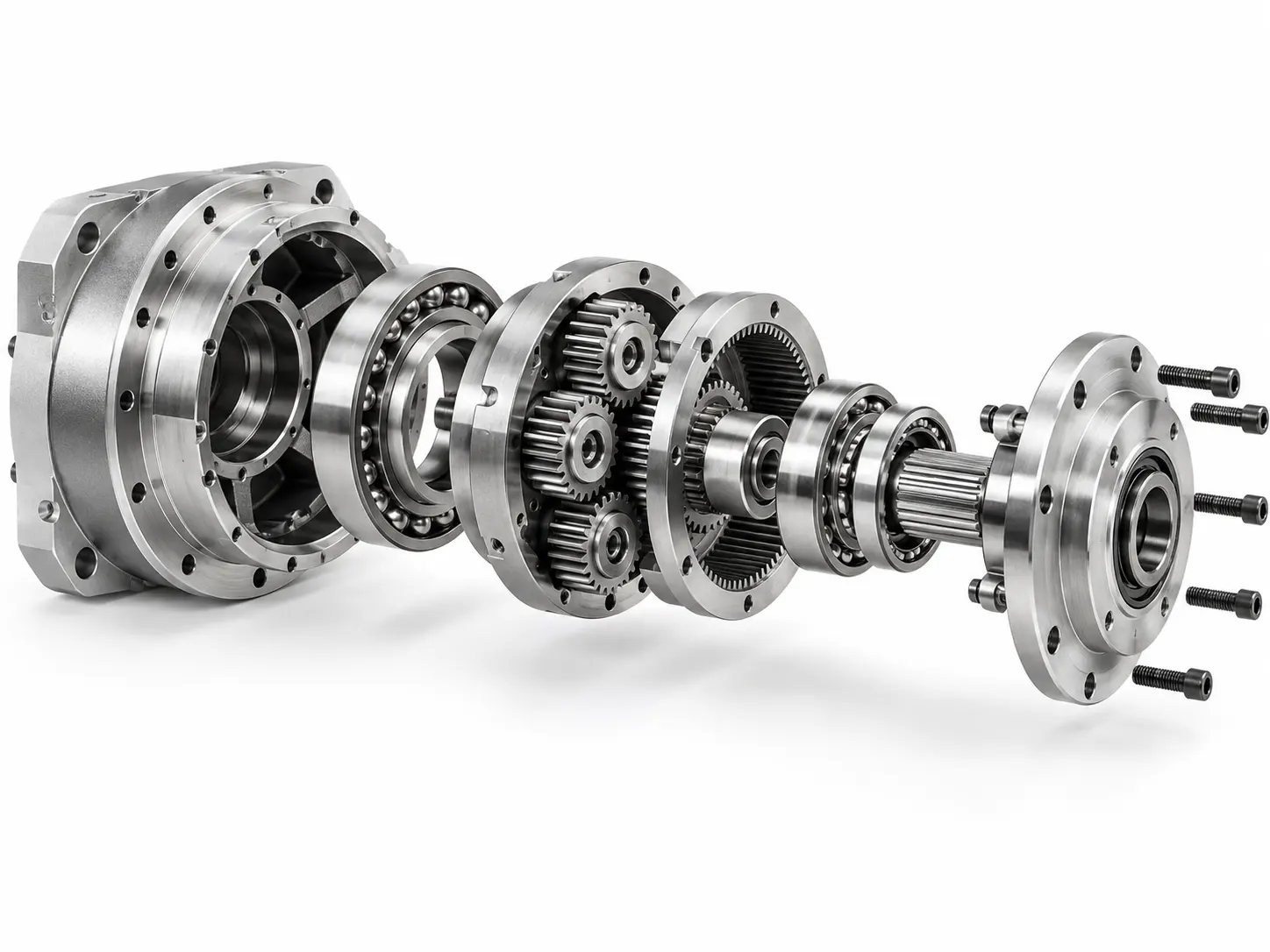

Robot gearbox housings often contain multiple bearing seats, shaft bores, gear cavities, locating shoulders, sealing surfaces, lubrication passages, mounting flanges, and closely controlled assembly datums. Small deviations in bore position, concentricity, runout, flatness, or perpendicularity can affect gear meshing, shaft alignment, bearing load, vibration, noise, and transmission efficiency.
Our CNC machining capabilities include 3-axis, 4-axis, and 5-axis milling, CNC turning, boring, drilling, threading, tapping, pocket machining, and precision finishing. Machining strategies, datum control, workholding, and inspection methods are selected according to gearbox architecture, critical bore relationships, GD&T requirements, sealing interfaces, and assembly conditions.
Gearbox housings can be machined from aluminum alloys, stainless steel, tool steel, titanium, and other engineering materials, with anodizing, hard anodizing, passivation, plating, polishing, coating, and other secondary processes available. Prototype, engineering sample, and low-volume production can be supported according to customer drawings.
Specifications
| Item | Specification |
|---|---|
| Product Name | Robot Gearbox Housing CNC Machining |
| Material | Aluminum / Stainless Steel / Titanium / Tool Steel / Engineering Plastics / Custom |
| Manufacturing Process | Milling / Turning / Boring / Drilling / Threading / Tapping / Precision Finishing |
| Part Geometry | Multi-Bore / Deep Cavity / Thin-Wall / Flanged / Complex Housing / Custom |
| Tolerance | Up to ±0.005 mm / According to Drawing |
| Surface Finish | Anodizing / Hard Anodizing / Passivation / Plating / Coating |
| Color | Natural / Black / Material-Dependent |
| Production Volume | Prototype and Low-Volume Production |
| Inspection | CMM / Height Gauge / Micrometer / Caliper / Custom Inspection Plan |
| Documentation | Inspection Reports and Material Documents Upon Request |
| Applications | Humanoid Robots / Collaborative Robots / Industrial Robots / Robotic Actuators / Precision Motion Systems |
| Custom Service | OEM and ODM Supported |
Three Key Customization Aspects, Tailored to Your Needs
Customized CNC machining solutions for complex robotic components and precision assembly requirements.
Precision Manufacturing, Excellent Quality
Multi-Bore Precision Machining
Precision boring and multi-axis machining help maintain critical relationships between bearing seats, shaft bores, and transmission interfaces for stable gearbox assembly.
Complex Gear Cavity Machining
5-axis machining supports deep cavities, multi-side features, mounting flanges, internal pockets, and complex housing geometry while reducing repeated setups.
Sealing & Lubrication Features
Sealing grooves, gasket surfaces, lubrication passages, threaded ports, and related features can be machined according to gearbox operating and maintenance requirements.
Precision Inspection

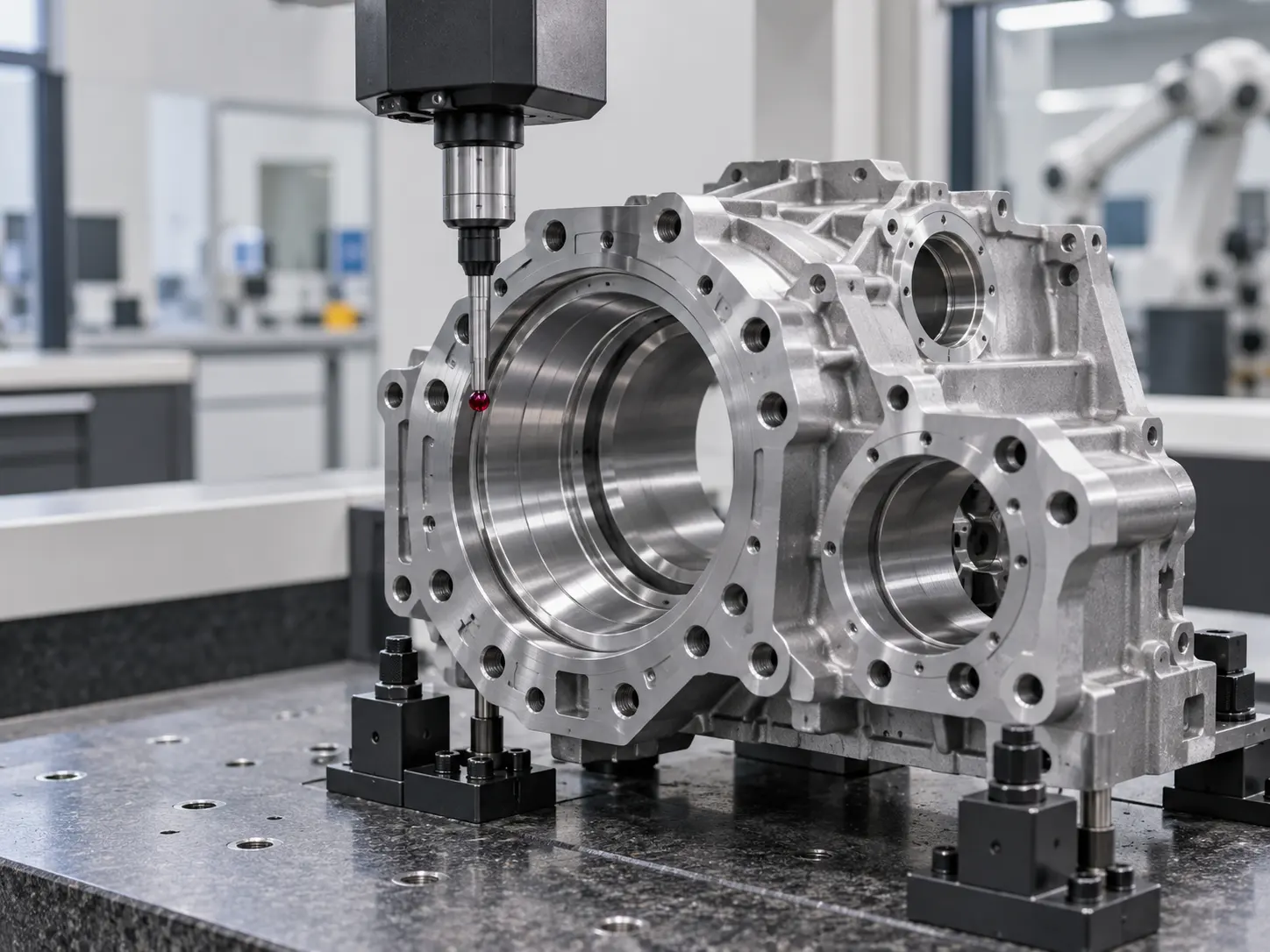

CMM, bore gauges, micrometers, roundness gauges, and other inspection equipment can verify bore size, position, concentricity, runout, flatness, and critical mounting datums.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a robot gearbox housing?
A robot gearbox housing is a structural component that supports gears, shafts, bearings, seals, and related transmission elements within a robotic drive system.
Q2: What features require high precision in gearbox housings?
Critical features commonly include bearing seats, shaft bores, gear cavities, locating shoulders, sealing surfaces, and mounting datums.
Q3:Why are bore alignment and concentricity important?
Accurate bore alignment helps maintain proper shaft and bearing position, supporting smooth gear meshing and reducing vibration, uneven loads, and assembly issues.
Q4: What materials are commonly used for robot gearbox housings?
Common materials include aluminum alloys, stainless steel, tool steel, and titanium, selected according to weight, strength, rigidity, wear, thermal conditions, and operating environment.
Q5: Can 5-axis CNC machining be used for gearbox housings?
Yes. 5-axis machining is suitable for housings with deep cavities, multi-angle features, complex mounting interfaces, and multiple critical surfaces.
