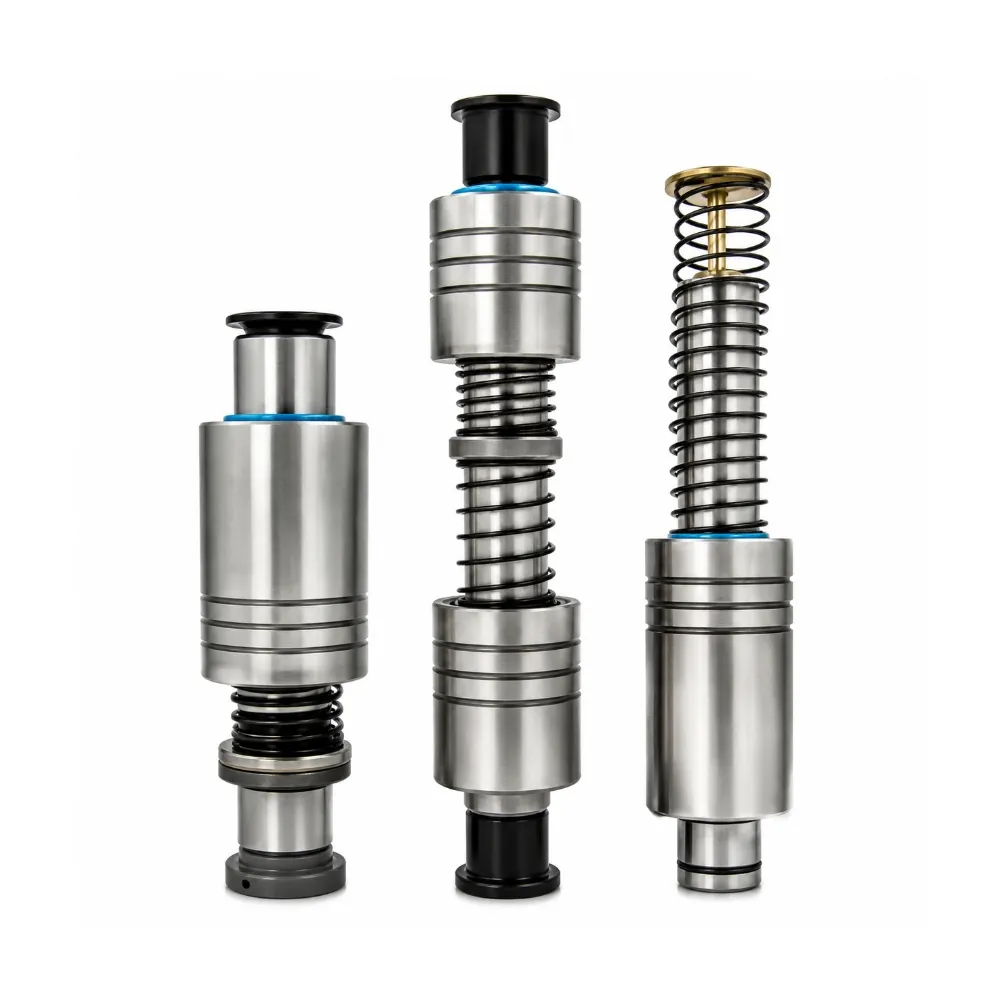

spring mold guide pillar
Product Description
Introduction
Spring Mold Guide Pillar is a precision-engineered component used in mold guiding systems to ensure accurate alignment between mold plates during stamping, injection molding, and spring forming processes. It works together with guide bushings to maintain stable movement, reduce wear, and improve mold life. With high rigidity and excellent dimensional accuracy, the guide pillar plays a critical role in ensuring consistent production quality and reducing downtime caused by misalignment.
Manufactured from high-quality hardened steel such as SUJ2 or equivalent tool steel, the spring mold guide pillar is processed through heat treatment and precision grinding. This ensures excellent wear resistance, low friction performance, and long service life even under high-load and high-cycle operating conditions. The surface is often coated or polished to further enhance smooth movement and corrosion resistance, making it suitable for demanding industrial environments.
This guide pillar is widely used in spring molds, stamping dies, and plastic injection molds where precise alignment is required. It is compatible with standard mold base systems such as HASCO, DME, and MISUMI. The product is available in various diameters and lengths, and custom sizes can be manufactured according to customer drawings. It is an essential component for improving mold accuracy, stability, and production efficiency.
Specifications
| Item | Description |
|---|---|
| Product Name | Spring Mold Guide Pillar |
| Material | SUJ2 / SKD11 / SCM440 / Customized |
| Hardness | HRC 58–62 (after heat treatment) |
| Surface Treatment | Hard chrome plating / polishing / black coating |
| Precision Grade | High precision grinding (±0.005mm optional) |
| Straightness | ≤ 0.01mm / 100mm |
| Roughness | Ra 0.2 – Ra 0.8 |
| Diameter Range | 5mm – 50mm |
| Length Range | 20mm – 500mm |
| Customization | Available based on drawings |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Stable Alignment
Spring mold guide pillar ensures consistent mold positioning during high-speed operations, minimizing deviation between upper and lower dies and improving forming accuracy under continuous industrial production conditions.
Enhanced Surface Durability
Advanced heat-treated surface increases resistance against abrasion and micro-cracks, maintaining performance stability even under heavy stamping cycles and long-term mechanical stress applications.
Smooth Motion Control
Precision ground finish reduces friction between guide pillar and bush system, enabling smoother mold movement, lowering energy loss, and improving overall operational efficiency in production lines.
Extended Tool Life
Optimized material structure and hardness distribution reduce deformation risk, significantly extending mold component lifespan and lowering maintenance frequency in demanding manufacturing environments.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a spring mold guide pillar used for?
It is used to ensure precise alignment between mold plates in stamping, injection molding, and spring forming systems, improving stability and reducing wear during repeated production cycles.
Q2: What materials are available for this guide pillar?
Common materials include hardened steel such as SUJ2, SKD11, and SCM440. Custom materials can also be produced based on specific application requirements.
Q3: Can the size of the guide pillar be customized?
Yes, the diameter, length, and tolerance can be customized according to customer drawings or mold system specifications for OEM and ODM production.
Q4: Which mold standards are compatible?
It is compatible with international standards such as HASCO, DME, MISUMI, DIN, and ISO, ensuring easy integration into global mold systems.
Q5: What surface treatments are available?
Options include hard chrome plating, fine polishing, and anti-rust coating, all designed to improve wear resistance and extend service life.
