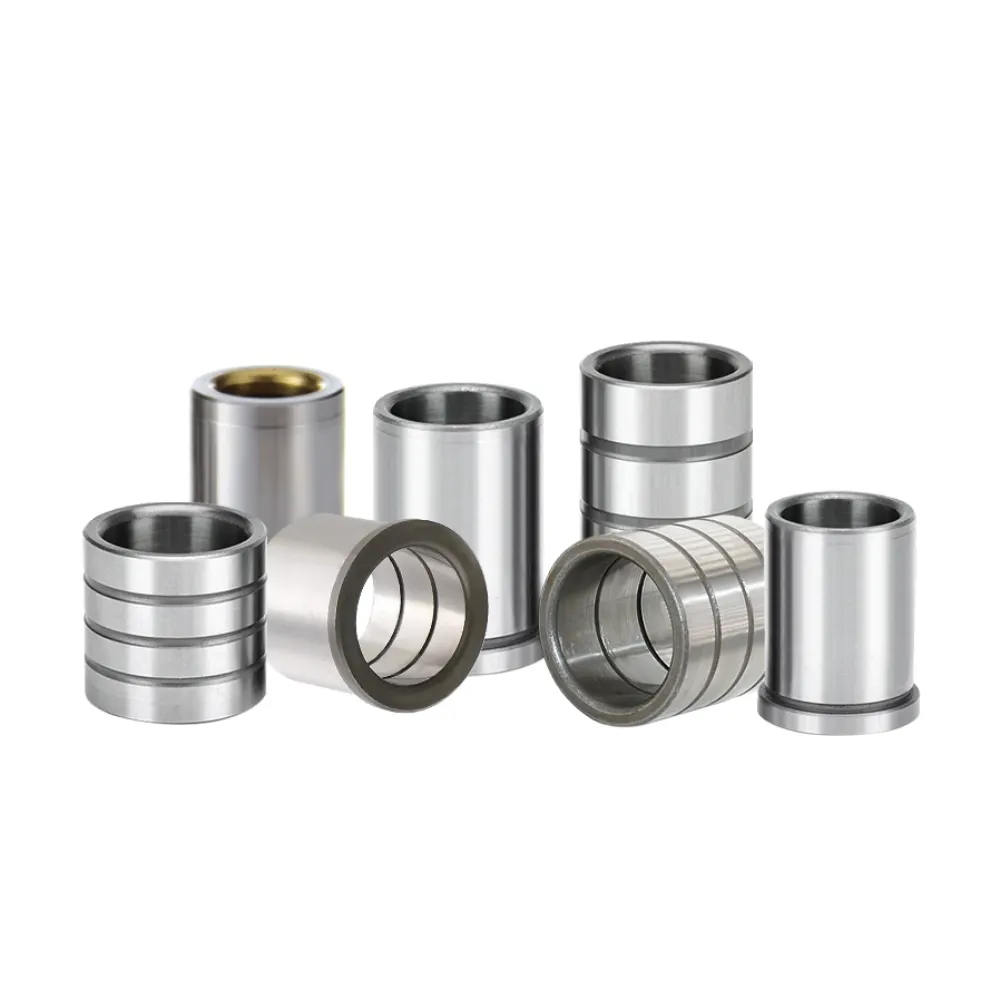

Fixed Guide Bushing
Fixed Guide Bushing is designed to provide stable and accurate support within mold assemblies where precise positioning is required. It ensures firm installation of guiding elements, helping maintain structural consistency during operation. With a rigid configuration and dependable performance characteristics, it supports reliable mold functionality in various industrial environments. This component is widely used in systems that require secure alignment, long-term stability, and consistent mechanical performance under repetitive production conditions.
Product Description
Introduction
Fixed Guide Bushing is a precision component used in mold systems to ensure stable and accurate positioning of guide pillars within mold base assemblies. It provides rigid support without relative movement, helping maintain consistent alignment between mold components during assembly and operation. This structure improves overall mold stability and reduces positional deviation during repeated production cycles.
The product is manufactured from high-quality bearing steel, alloy steel, or hardened tool steel, and processed through heat treatment and precision machining. These manufacturing techniques ensure excellent hardness, strong wear resistance, and stable dimensional accuracy under demanding working conditions. The fixed structure design offers high rigidity and dependable performance, making it suitable for applications where precise positioning and structural strength are essential.
Fixed Guide Bushing is widely used in injection mold bases, stamping dies, plastic mold frames, die casting molds, automotive mold systems, industrial machinery, and heavy-duty tooling equipment. It is particularly suitable for applications requiring strong alignment control and stable structural support. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or specific technical requirements. This makes it a reliable solution for improving mold accuracy, enhancing structural stability, and ensuring long-term performance in industrial manufacturing environments.
Specifications
| Item | Description |
|---|---|
| Product Name | Fixed Guide Bushing |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Fixed / Press Fit Type |
| Surface Finish | Precision Ground |
| Tolerance | High Precision Standard |
| Installation Type | Press Fit / Interference Fit |
| Size Range | Standard and Custom Sizes |
| Service Life | Long Cycle Durability |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Strong Positional Locking Stability
Fixed structure prevents relative movement, ensuring rigid alignment between mold components and maintaining consistent positioning during repeated assembly operations.
Enhanced Structural Rigidity Support
High-strength design improves overall mold frame stability, reducing deformation risk under heavy load and maintaining reliable system integrity.
Improved Assembly Accuracy Control
Precision machining ensures tight fit installation, enhancing alignment accuracy and reducing deviation during mold setup and operation cycles.
Long Term Wear Resistance
Hardened material surface resists abrasion and deformation, supporting extended service life under continuous industrial working conditions.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Fixed Guide Bushing used for?
It is used in mold systems to provide rigid and stable positioning support for guide components.
2. How is it different from sliding or ball types?
It has no relative movement structure, offering fixed alignment instead of sliding or rolling motion.
3. What materials are commonly used?
Common materials include bearing steel, alloy steel, and hardened tool steel with heat treatment.
4. Where is it typically applied?
It is widely used in injection molds, stamping dies, die casting molds, and heavy-duty tooling systems.
5. Can it be customized?
Yes, OEM customization is available, including size, tolerance, material, and structural requirements.
