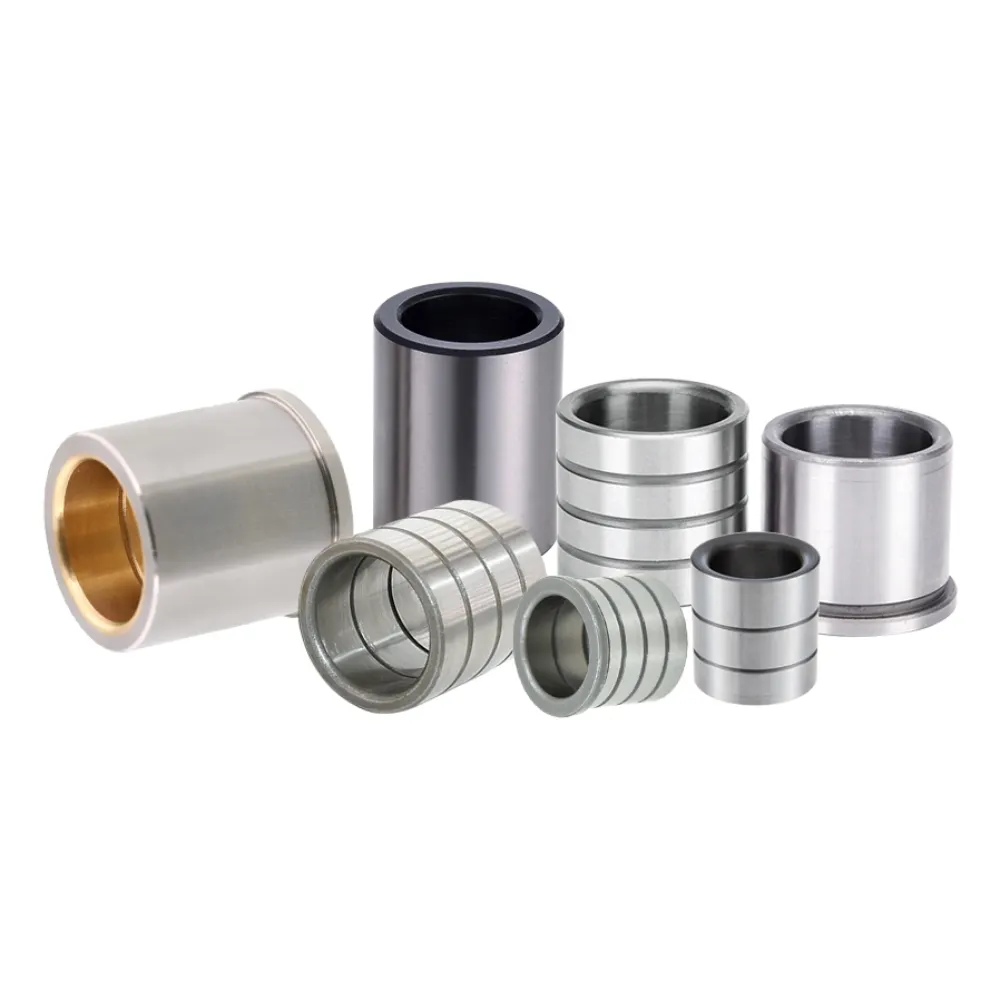

Stripper Plate Guide Bushing
Stripper Plate Guide Bushing is a key die component used to control and stabilize stripper plate movement in stamping systems. It helps maintain precise alignment during punching operations, reducing mechanical deviation and improving process reliability. Designed for industrial use, it supports consistent performance in high-speed production and is suitable for various metal forming and progressive die applications.
- Precise Fit: Ensures stable assembly positioning
- Shock Resistance: Handles stamping impact load
- Reduced Downtime: Improves production continuity
- Long Term Stability: Maintains consistent performance
Product Description
Introduction
Stripper Plate Guide Bushing is a precision component used in stamping die systems to ensure accurate alignment and smooth movement of stripper plates during punching operations. It works in coordination with guide pillars to maintain stable positioning, reduce deviation, and improve overall die accuracy. It is widely applied in metal forming processes where consistent guiding performance is essential for efficient production.
Manufactured from high-quality bearing steel or hardened tool steel, Stripper Plate Guide Bushing offers excellent wear resistance, high strength, and long service life. Advanced CNC machining, precision grinding, and heat treatment processes ensure tight dimensional tolerances up to ±0.002 mm. The finely finished inner surface reduces friction between moving parts, allowing smooth operation even under high-speed and continuous stamping conditions. This ensures stable performance and reduces maintenance requirements in long-term production use.
Stripper Plate Guide Bushing is widely used in automotive sheet metal stamping, electronics manufacturing, household appliance production, progressive die systems, and precision hardware industries. It is suitable for both standard and customized die structures, providing flexible design options such as inner diameter, outer diameter, length, and lubrication grooves. Its reliable performance makes it an essential component in high-volume stamping environments, helping improve efficiency, extend tool life, and maintain consistent product quality across demanding industrial applications.
Specifications
| Item | Description |
|---|---|
| Product Name | Stripper Plate Guide Bushing |
| Material | Bearing Steel / Hardened Tool Steel |
| Hardness | HRC 58–62 |
| Tolerance | ±0.002 mm |
| Inner Diameter | Standard or Customized |
| Outer Diameter | Standard or Customized |
| Length | Customized |
| Surface Finish | Precision Ground |
| Lubrication Type | Oil Groove Optional |
| Manufacturing Process | CNC Machining + Grinding + Heat Treatment |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Alignment Accuracy
Stripper Plate Guide Bushing ensures precise positioning of stripper plates within stamping dies, reducing misalignment and maintaining stable operation during high-speed punching processes for consistent production quality.
Smooth Operational Movement
Precision machining of the inner surface reduces friction between components, enabling smooth guiding motion and improving overall efficiency in continuous stamping operations.
High Wear Resistance
Manufactured from hardened steel materials, it provides strong resistance to abrasion and deformation, ensuring long service life under repetitive high-load industrial conditions.
Stable Die Performance
Designed for heavy-duty stamping environments, it maintains structural stability under repeated cycles, supporting reliable die operation and reducing downtime in production lines.
