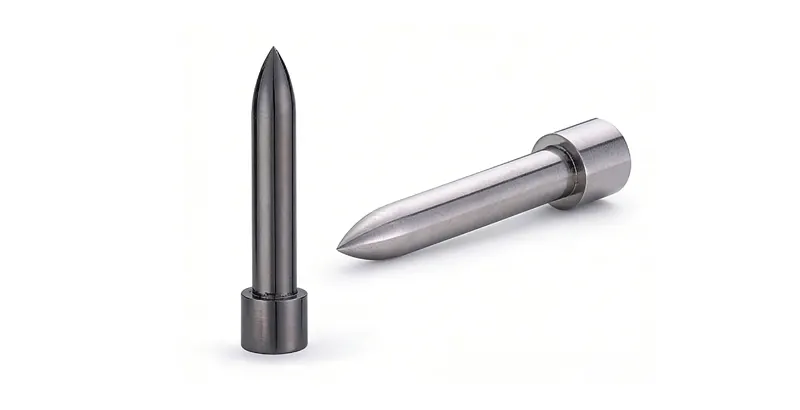

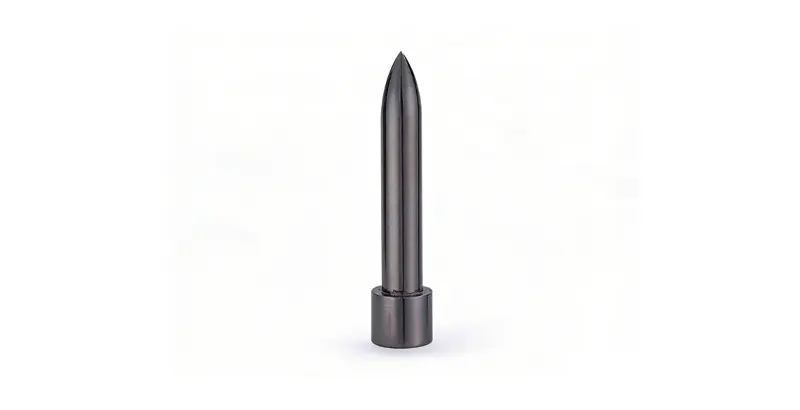

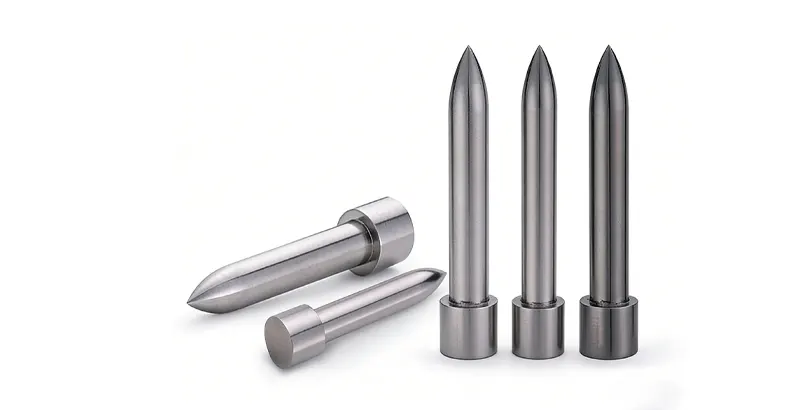

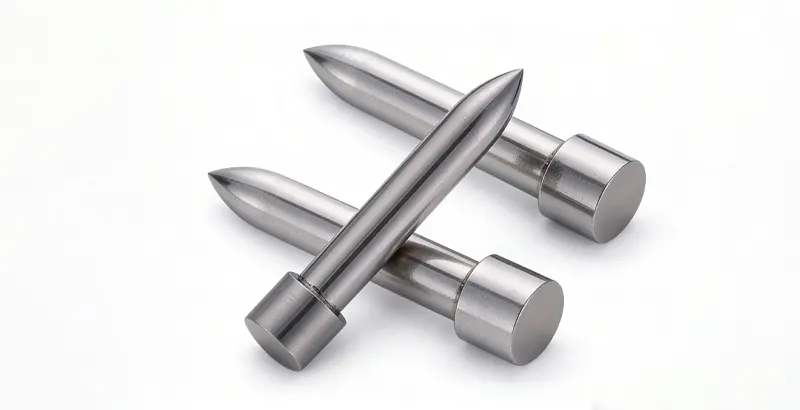

Guide Ejector Pin
A guide ejector pin is a precision mold component designed to ensure accurate alignment and smooth ejection of molded parts in injection molding systems. The guide ejector pin works in combination with ejector plates and guide components to maintain stable movement during the ejection process, reducing friction and preventing misalignment.
- Product Material: Bearing Steel, High-Speed Steel, Powdered High-Speed Steel, Tungsten Steel
- Product Hardness: Hardness varies depending on material and heat treatment
- Product Tolerance: ±0.002mm
- Product Specification: Non-standard customization available
- Product Application: Hardware Molds
Product Description
Introduction
The guide ejector pin improves molding efficiency by ensuring stable ejection performance, reducing cycle interruptions, and minimizing wear on mold components. Compared with standard ejector pins, it provides better guiding accuracy, smoother operation, and longer service life under high-speed production conditions. This component is widely used in automotive molding, electronics manufacturing, consumer plastic products, and precision injection mold systems where consistent ejection, high reliability, and reduced maintenance costs are essential for production stability.
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Wear Resistance
Made from premium steel and precision processed, offering enhanced wear resistance and long durability. Ideal for mass hole processing and high-speed continuous stamping, improving production capacity.
High Hardness
Durable and resistant to high temperatures, withstanding temperatures above 600°C. It offers 3 times greater wear resistance than standard processes and a 35% increase in hardness.
High Precision
Crafted with meticulous grinding processes, achieving tolerance accuracy within ±0.002mm. The one-time matching forming minimizes mold setup costs.
High Quality
Precision manufacturing ensures strong stability, high bending resistance, and minimal deformation. The product’s service life is increased by 35%.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Customizable Solutions
We offer tailored products and services based on your specific requirements, ensuring a perfect fit for your needs.
High-Quality Materials
We use premium materials for all our products, ensuring durability, reliability, and long-term performance.
Fast Delivery
With a large inventory and efficient production processes, we provide quick delivery at competitive prices, helping you save both time and costs.
Application Range
The preferred choice across various industries.
