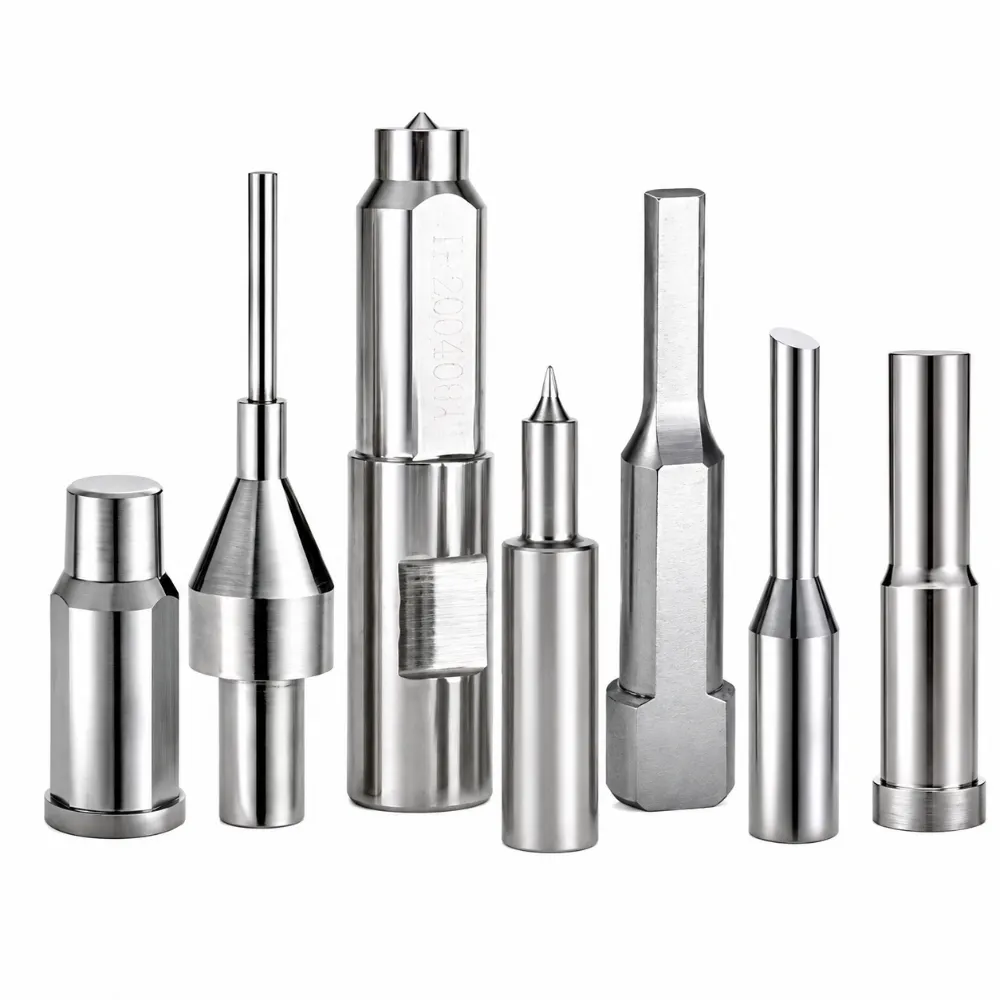

HSS Punch Pin
HSS Punch Pins are high-performance tooling parts used in stamping and forming systems. Made from high-speed steel, they combine strength and durability for industrial applications. Designed for continuous operation, they maintain stable geometry under stress. Precision machining and heat treatment ensure reliable quality, making them suitable for demanding die work requiring consistent output and long operational life.
Product Description
Introduction
HSS Punch Pins (High Speed Steel Punch Pins) are precision-engineered tooling components widely used in metal stamping dies and progressive die systems. Manufactured from premium high-speed steel grades such as M2, SKH51, and SKH9, they provide an excellent balance of hardness, toughness, and wear resistance. These punch pins are designed for stable and reliable performance in high-speed and continuous production environments.
Through advanced CNC machining and precision grinding processes, HSS Punch Pins achieve tight dimensional tolerances up to ±0.002 mm. The vacuum heat treatment process enhances material hardness to HRC 58–64 while maintaining good toughness, helping to reduce deformation and cracking during heavy-duty stamping operations. Their smooth surface finish also minimizes friction and improves overall punching efficiency.
HSS Punch Pins are widely applied in automotive manufacturing, electronics, connectors, terminals, and precision hardware industries. They are suitable for various stamping operations including punching, forming, and piercing. Custom specifications such as diameter, length, head shape, and coatings (TiN, TiCN, etc.) are available to meet OEM requirements, making them a reliable solution for demanding industrial tooling applications.
Technical Specifications
| Item | Description |
|---|---|
| Product Name | HSS Punch Pin |
| Material | M2 / SKH51 / SKH9 / High Speed Steel |
| Hardness | HRC 58–64 |
| Tolerance | ±0.002 mm |
| Diameter | Customized |
| Length | Customized |
| Surface Finish | Precision Ground |
| Heat Treatment | Vacuum Heat Treatment |
| Manufacturing Process | CNC Machining + Precision Grinding |
| Customization | OEM/ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Wear Resistance
HSS Punch Pins made from premium high-speed steel provide excellent wear resistance, maintaining cutting performance during long-term stamping operations and reducing tool wear in high-volume production environments.
Stable Hardness Performance
With hardness ranging from HRC 58–64, these punch pins retain stable mechanical properties even under high-temperature and continuous impact conditions in stamping dies.
Precision Dimensional Control
Advanced CNC machining and precision grinding ensure tight tolerances up to ±0.002 mm, delivering consistent accuracy and reliable punching results for complex die applications.
Strong Toughness & Durability
Optimized heat treatment improves toughness, allowing the punch pin to withstand repeated impact loads while reducing risks of cracking and extending overall service life.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Tolerance Precision Up to ±0.002mm
Selected authentic ingredients 1 piece is equivalent to 5 pieces
Batch processing and customization based on drawings, free sampling.
Application Range
The preferred choice across various industries.
