Inner Guide Pillar

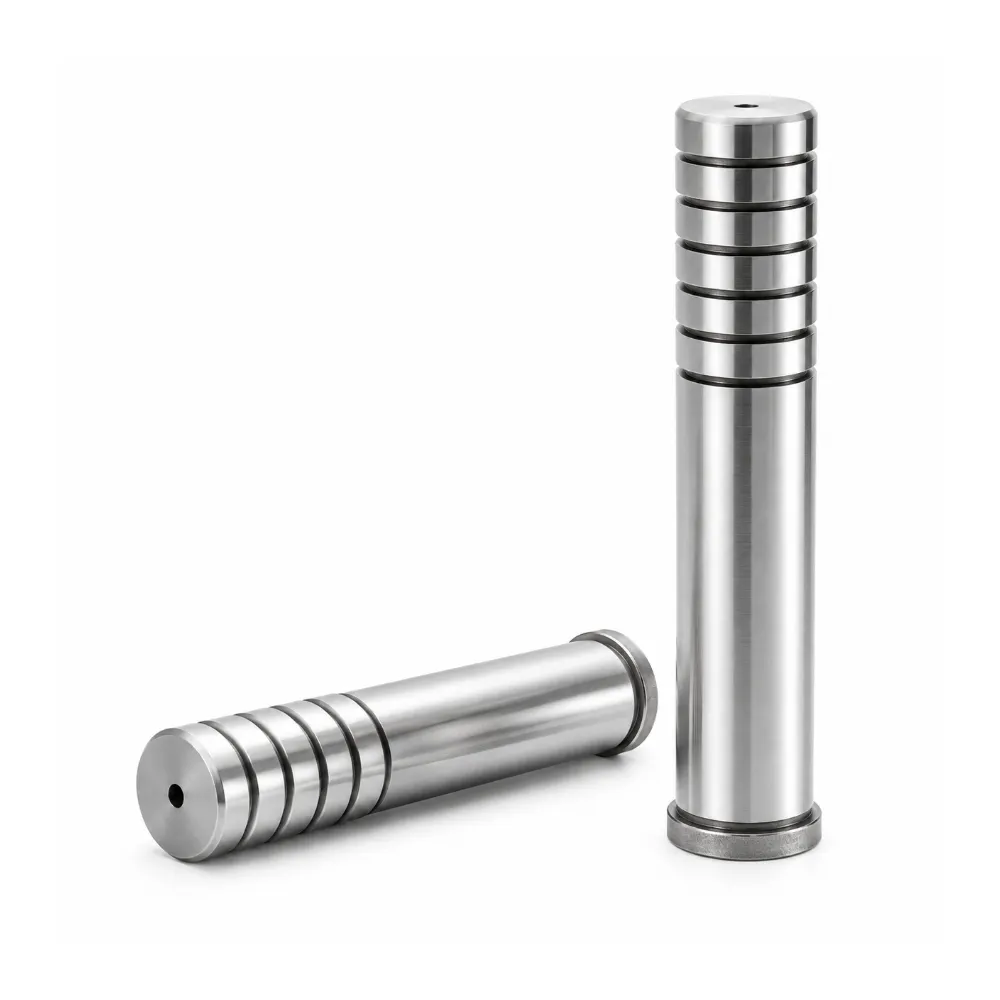

Inner Guide Pillar is engineered for precise internal guidance in molds, dies, and tooling assemblies where accurate positioning is critical. Its compact structure allows efficient installation within limited spaces while supporting smooth and controlled component movement. Manufactured from hardened bearing steel and finished through high-precision grinding processes, it offers excellent durability, dimensional stability, and wear resistance. This guide pillar is widely used in precision tooling applications requiring reliable alignment, repeatable performance, and long-term operational consistency.
- Fits Tight Tooling Spaces: Maximizes guidance within compact assemblies.
- Maintains Consistent Internal Positioning: Supports accurate movement throughout operation.
- Minimizes Unwanted Plate Displacement: Helps improve die running stability.
- Compatible With Standard Tooling Systems: Simplifies installation and component replacement.
Product Description
Introduction
Inner Guide Pillar is a precision guiding component designed for stamping dies, progressive dies, mold bases, and precision tooling systems. Installed inside the die or mold assembly, it provides accurate internal guidance and positioning between moving plates, helping maintain alignment throughout repeated production cycles. Its compact design makes it particularly suitable for tooling systems that require precise movement control within limited installation space.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Inner Guide Pillar undergoes precision machining, heat treatment, grinding, and polishing processes to achieve outstanding hardness, dimensional accuracy, and wear resistance. The precision-ground surface ensures smooth engagement with guide bushings, reducing friction and supporting stable operation under continuous industrial conditions. Its hardened structure helps extend service life while maintaining reliable guiding performance.
Inner Guide Pillars are widely used in metal stamping dies, precision punch tools, progressive die systems, automotive molds, electronic component molds, and industrial tooling assemblies. Available in a variety of diameters, lengths, and tolerance grades, they can meet the requirements of both standard and custom mold structures. OEM manufacturing and non-standard customization services are available according to customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Inner Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø6 mm – Ø60 mm |
| Length Range | 30 mm – 500 mm |
| Guiding Type | Internal Guidance |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit |
| Precision Grade | High Precision |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Optimized For Internal Die Layouts
Designed for installation within compact tooling assemblies, helping maximize available space while maintaining dependable guidance and positioning performance.
Consistent Guidance Throughout Production
Provides reliable internal alignment during repetitive manufacturing cycles, supporting stable operation and helping maintain overall tooling precision.
Reduced Component Movement Deviation
Helps control plate movement accurately, minimizing unwanted displacement and improving the consistency of die operation under working conditions.
Easy Integration With Standard Tooling
Compatible with many standard die and mold configurations, simplifying installation, replacement, and maintenance across various industrial applications.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is an Inner Guide Pillar?
An Inner Guide Pillar is a precision guiding component installed inside molds and dies to provide accurate alignment and controlled movement between working plates.
What is the function of an Inner Guide Pillar?
Its primary function is to maintain internal positioning accuracy, reduce movement deviation, and support smooth operation during repeated production cycles.
What materials are commonly used for Inner Guide Pillars?
Inner Guide Pillars are typically manufactured from SUJ2 or GCr15 bearing steel, offering high hardness, excellent wear resistance, and long service life.
Can Inner Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, surface treatments, and special specifications can be produced according to customer drawings and application requirements.
Where are Inner Guide Pillars commonly used?
They are widely used in stamping dies, progressive dies, punch tooling, mold bases, automotive molds, electronic component molds, and precision industrial tooling systems.
