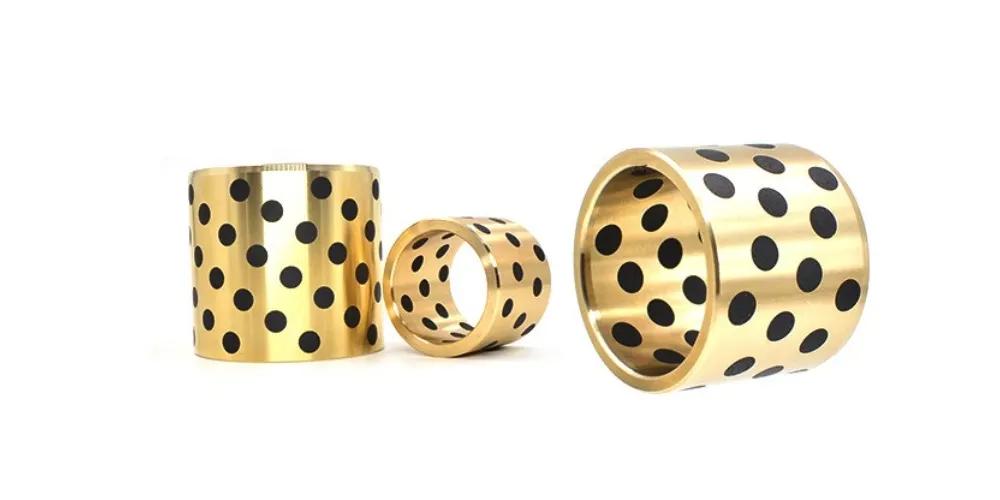

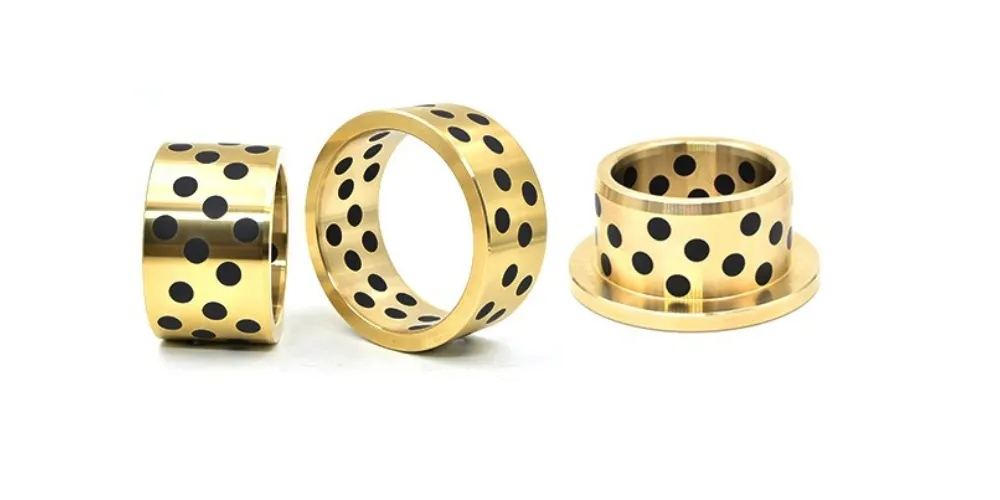

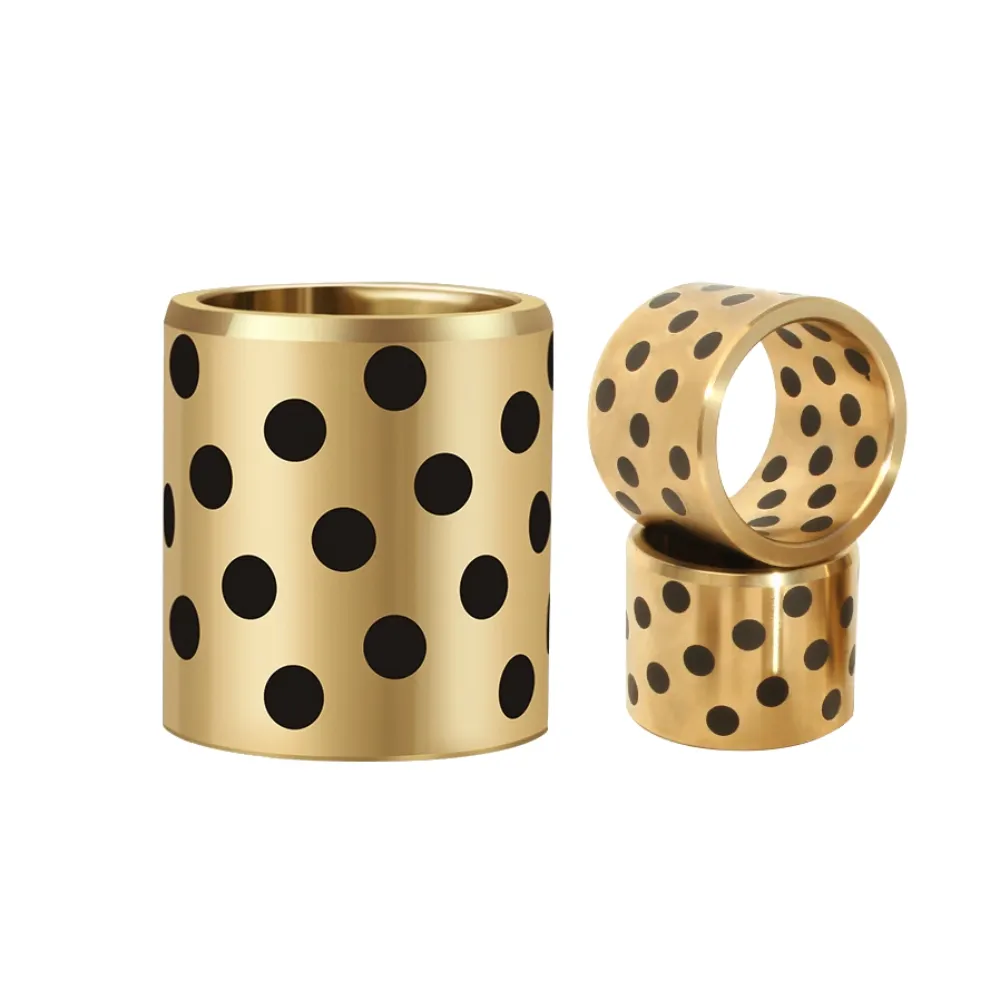

Self-Lubricating Guide Bushing
Self-Lubricating Guide Bushing is a maintenance-free mold component designed to ensure smooth and stable guiding motion in die systems. It operates without external lubrication, reducing system complexity and downtime. Built with durable composite materials, it performs reliably under continuous use. Suitable for precision manufacturing, it supports efficient operation, consistent alignment, and long-term industrial stability.
- Self Lubrication System: Provides continuous internal lubrication support
- Heat Reduction: Minimizes friction heat during operation
- Extended Durability: Enhances long-term service performance
- Stable Motion Control: Maintains consistent guiding accuracy
Product Description
Introduction
Self-Lubricating Guide Bushing is an advanced mold guiding component designed for precise alignment and smooth motion in stamping dies and injection mold systems. It eliminates the need for external lubrication by using embedded solid lubricants, enabling stable and maintenance-free operation. It is widely used in high-speed and continuous production environments where reliability and reduced downtime are essential.
Manufactured from high-quality bronze-based composite materials combined with graphite or PTFE solid lubrication technology, Self-Lubricating Guide Bushing provides excellent wear resistance and low friction performance. The internal lubrication structure ensures consistent self-lubrication during operation, reducing heat generation and minimizing metal-to-metal contact. Through precision CNC machining and strict dimensional control, it achieves tight tolerances up to ±0.002 mm, ensuring accurate guiding performance and long-term stability under heavy load conditions.
Self-Lubricating Guide Bushing is widely applied in automotive molds, electronics manufacturing, progressive die systems, household appliances, and precision hardware production. It is especially suitable for clean production environments where oil contamination must be avoided. Custom options such as inner diameter, outer diameter, length, lubrication type, and material composition are available to meet specific engineering requirements. This flexibility makes it a reliable solution for OEM tooling, non-standard mold designs, and high-performance guiding systems across a wide range of industrial applications.
Specifications
| Item | Description |
|---|---|
| Product Name | Self-Lubricating Guide Bushing |
| Material | Bronze + Graphite / PTFE Composite |
| Lubrication Type | Solid Lubricant Embedded (Oil-Free) |
| Hardness | HB 60–90 (Material Dependent) |
| Tolerance | ±0.002 mm |
| Inner Diameter | Customized |
| Outer Diameter | Customized |
| Length | Customized |
| Surface Finish | Precision Ground / Self-Lubricating Surface |
| Maintenance | Oil-Free / Maintenance-Free |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Maintenance-Free Operation
Self-Lubricating Guide Bushing eliminates the need for external oiling systems, reducing maintenance workload and ensuring continuous operation in automated production environments with minimal downtime.
Low Friction Performance
Embedded solid lubricants such as graphite or PTFE provide stable low-friction movement, reducing wear between guide components and improving overall mold efficiency.
High Wear Resistance
The bronze-based composite structure offers strong resistance to abrasion and deformation, ensuring long service life even under high-speed and high-load working conditions.
Stable Precision Guiding
Precision machining ensures accurate alignment with guide pillars, maintaining consistent motion stability and improving overall stamping and molding accuracy in industrial applications.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
