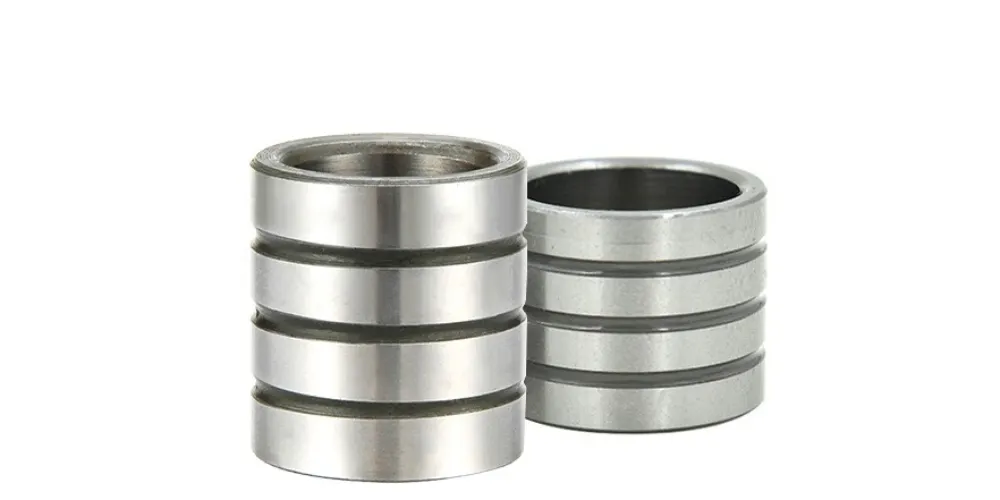

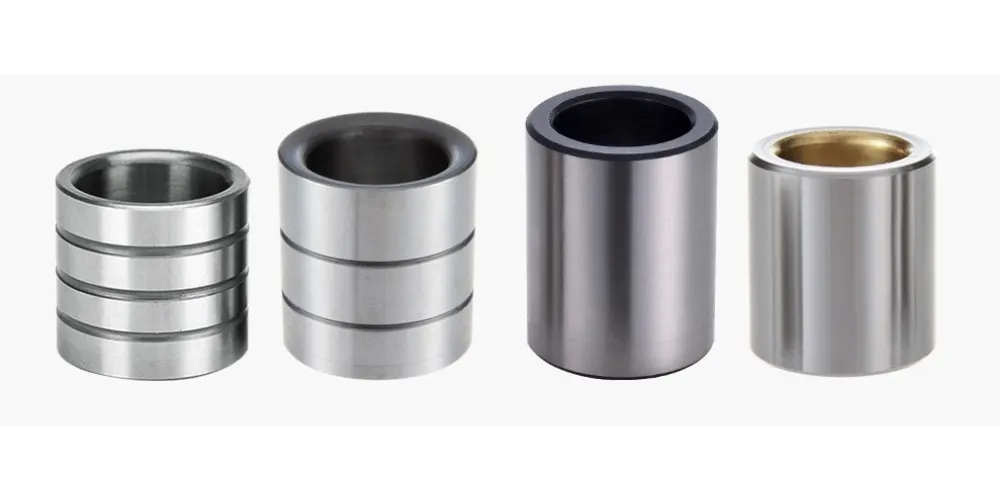

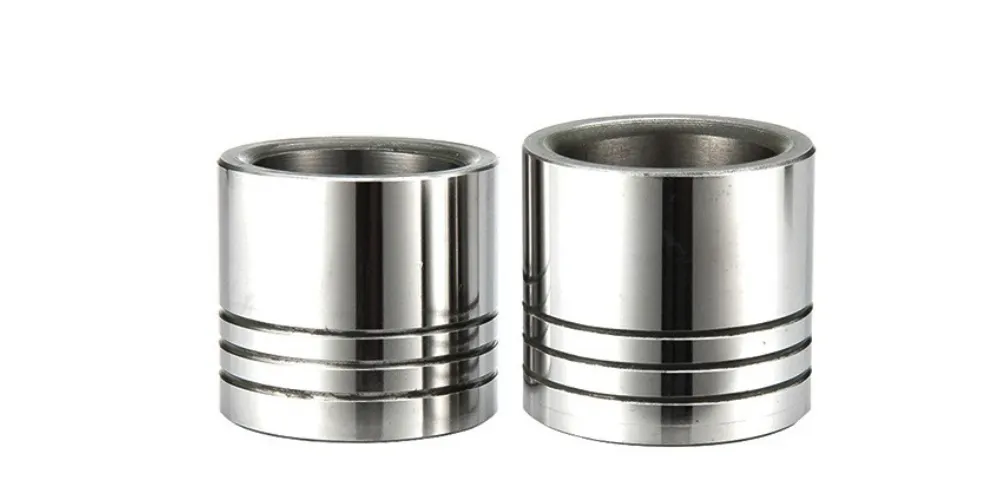

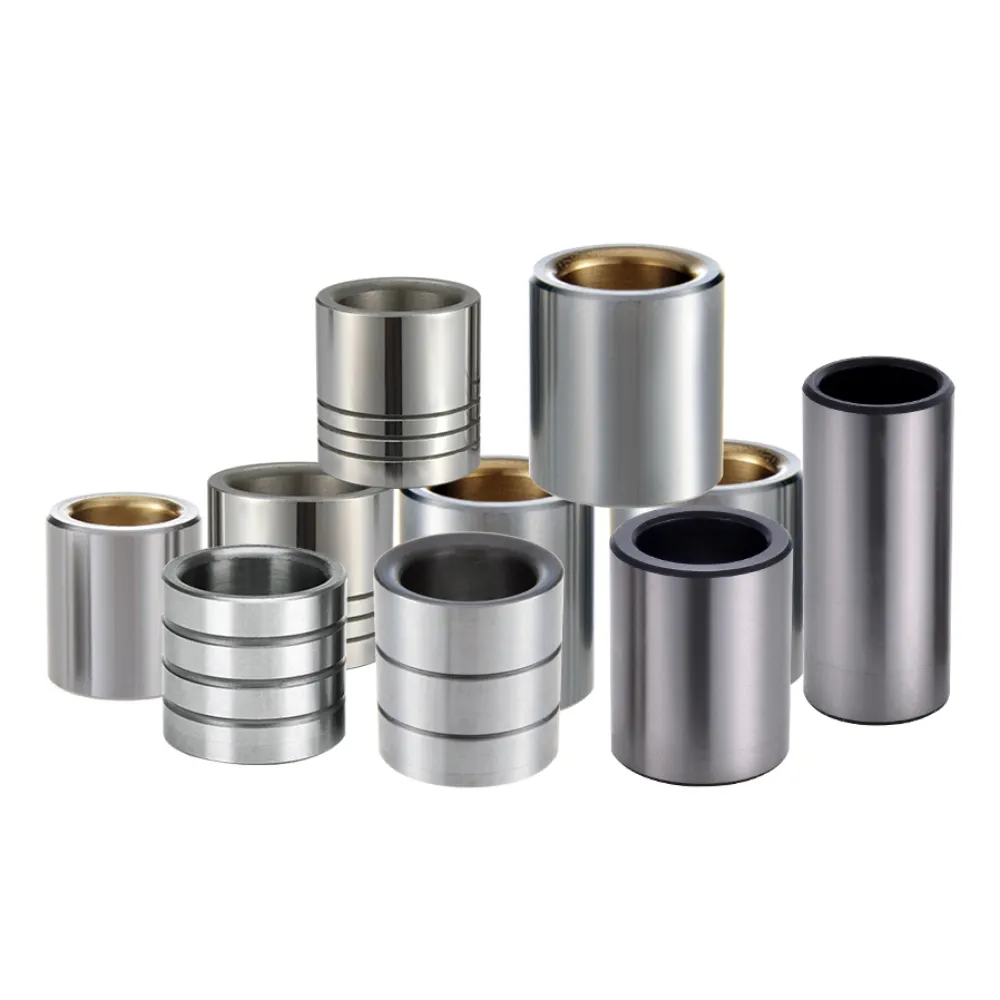

Precision Guide Sleeve
Precision Guide Sleeve is a core component used in mold systems to support accurate alignment and controlled movement between guiding elements. It helps maintain stable operation during production cycles and improves overall manufacturing consistency. Designed for industrial applications, it delivers dependable performance under repeated use and is suitable for various stamping and injection molding equipment.
- Alignment Stability: Maintains precise component positioning
- Low Maintenance: Reduces servicing frequency
- Wear Protection: Extends component lifespan
- High Compatibility: Fits standard mold systems
Product Description
Introduction
Precision Guide Sleeve is a high-precision mold alignment component designed to ensure accurate positioning and stable linear movement in stamping dies, injection molds, and industrial tooling systems. It works in combination with guide pillars or guide rods to maintain consistent alignment between mold parts, reduce mechanical deviation, and improve overall production accuracy. It is widely used in precision manufacturing environments where reliability and repeatability are essential.
Manufactured from high-quality bearing steel or hardened tool steel, Precision Guide Sleeve offers excellent wear resistance, structural strength, and long service life. Advanced CNC machining, precision internal grinding, and heat treatment processes ensure tight dimensional tolerances up to ±0.002 mm. The finely finished inner surface reduces friction and enables smooth sliding motion, maintaining stable performance even under high-speed and continuous operating conditions.
Precision Guide Sleeve is widely applied in automotive molds, electronics production, household appliance tooling, progressive die systems, and precision hardware manufacturing. It is suitable for both standard and customized mold structures, supporting a wide range of industrial applications. With flexible customization options such as inner diameter, outer diameter, length, lubrication grooves, and material selection, it can meet diverse engineering requirements and ensure reliable performance in demanding production environments.
Specifications
| Item | Description |
|---|---|
| Product Name | Precision Guide Sleeve |
| Material | Bearing Steel / Hardened Tool Steel |
| Hardness | HRC 58–62 |
| Tolerance | ±0.002 mm |
| Inner Diameter | Standard or Customized |
| Outer Diameter | Standard or Customized |
| Length | Customized |
| Surface Finish | Precision Ground / Polished |
| Lubrication Type | Oil Groove Optional |
| Manufacturing Process | CNC Machining + Grinding + Heat Treatment |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Positioning Precision
Precision Guide Sleeve ensures accurate alignment between guide components, maintaining stable mold positioning and reducing deviation during high-speed stamping and injection molding operations.
Smooth Sliding Performance
The finely polished inner surface reduces friction, enabling smooth linear movement and improving overall operational efficiency in continuous production environments.
Excellent Durability
Manufactured from hardened steel materials, it provides strong resistance to wear and deformation, ensuring long service life under heavy-duty industrial use.
Stable Load Capacity
Designed for demanding applications, it maintains structural integrity under high pressure and repeated cycles, ensuring reliable performance in complex mold systems.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
