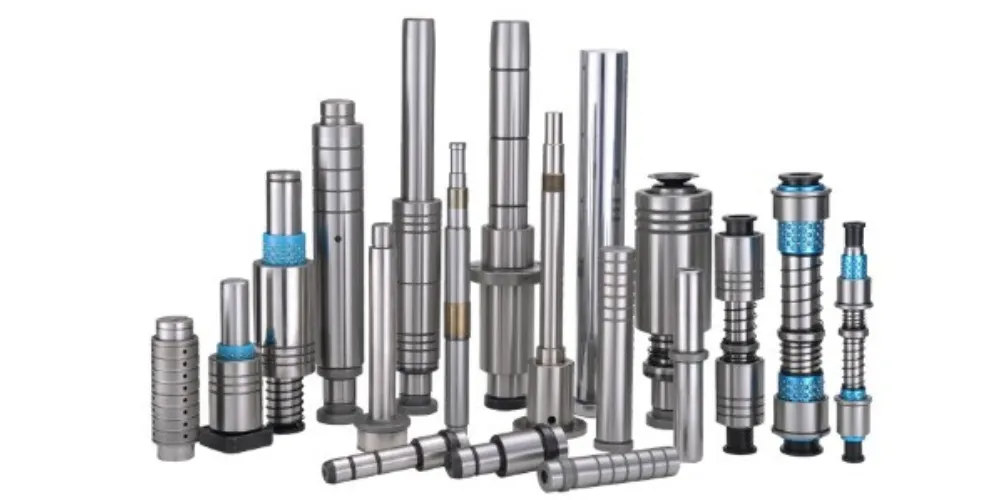

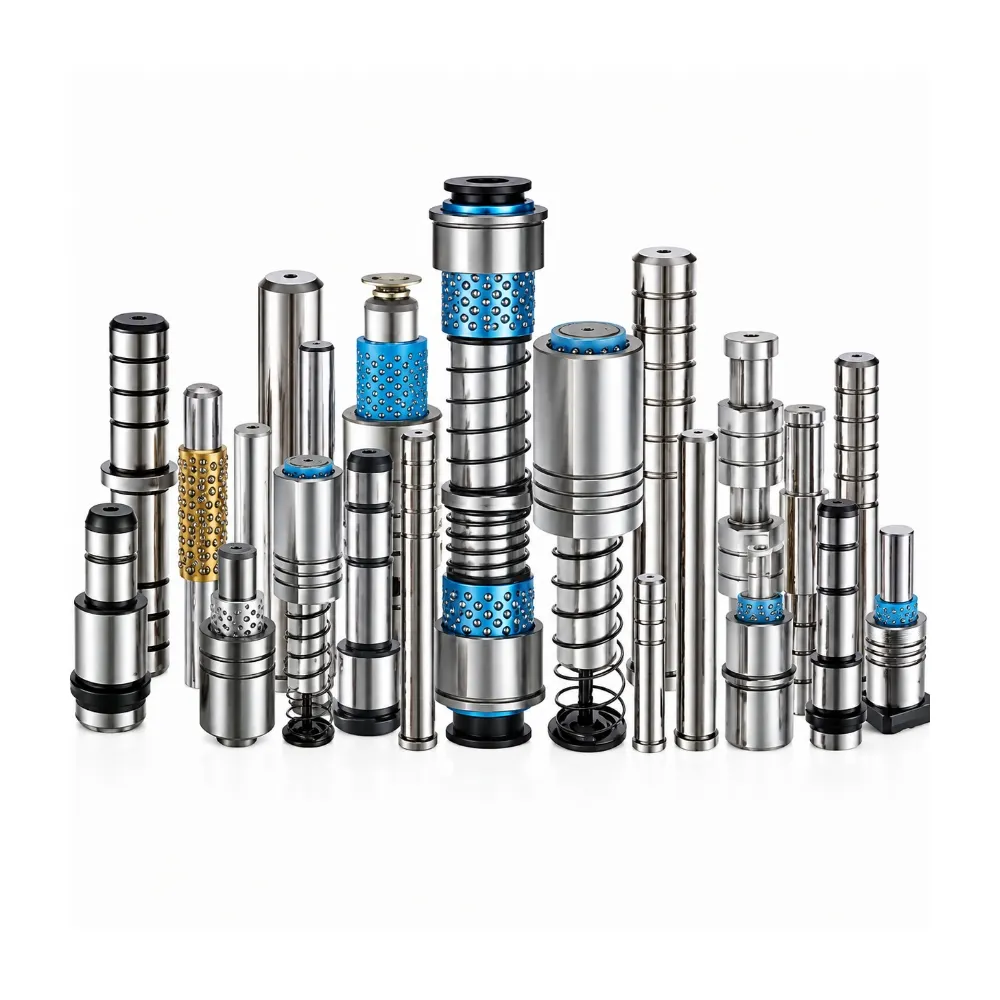

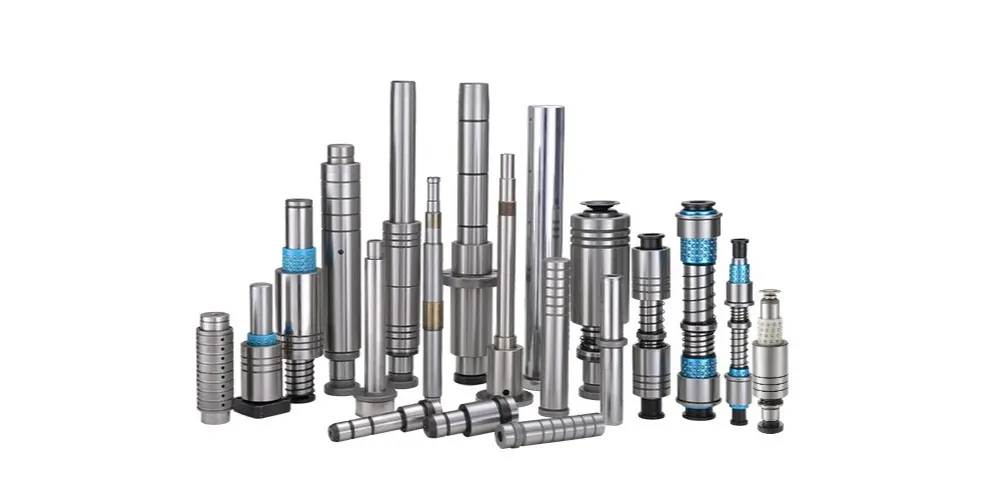

Custom Guide Pillar Machining
- Enables Custom Design Flexibility: Supports non-standard mold requirements.
- Delivers Precise Machining Control: Ensures consistent dimensional accuracy.
- Improves Steel Performance Stability: Enhances strength and durability.
- Supports Multiple Surface Options: Adapts to varied application needs.
Product Description
Introduction
Custom Guide Pillar Machining is a precision manufacturing service designed to produce high-accuracy guide pillars for molds, dies, and industrial tooling systems. It focuses on delivering tailored dimensions, tolerances, and surface requirements according to customer drawings, ensuring perfect compatibility with specific mold structures. This service is widely used in injection molds, stamping dies, and precision engineering applications where standard components cannot meet special design requirements.
Manufactured using advanced CNC machining, precision turning, heat treatment, grinding, and polishing processes, Custom Guide Pillar Machining ensures excellent dimensional accuracy and surface quality. High-grade bearing steel such as SUJ2 or GCr15 is commonly used to provide superior hardness, wear resistance, and fatigue strength. Each component is carefully processed to maintain strict tolerances, ensuring stable guiding performance under continuous industrial operation.
Custom Guide Pillar Machining is widely applied in automotive molds, electronic component molds, connector tooling systems, medical device molds, and high-precision automation equipment. It supports OEM and ODM manufacturing requirements, allowing full customization of diameter, length, hardness, surface treatment, and mounting design. This makes it an ideal solution for complex tooling projects requiring reliable and long-lasting guide components.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Custom Guide Pillar Machining |
| Material | SUJ2 / GCr15 Bearing Steel |
| Processing Method | CNC Turning / Grinding / Heat Treatment |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø8 mm – Ø120 mm |
| Length Range | 50 mm – 1800 mm |
| Straightness | ≤0.003 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Tolerance Grade | High Precision / Custom |
| Installation Type | Press Fit / Custom Design |
| Operating Condition | Continuous Industrial Use |
| Service Life | Long-Term Durability |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Supports Complex Custom Specifications
Enables production of non-standard guide pillar dimensions and designs, meeting unique mold structure requirements and specialized engineering applications.
Ensures High Machining Accuracy
Advanced CNC processing and grinding techniques guarantee tight tolerances, improving consistency and dimensional precision across all manufactured components.
Improves Material Performance Reliability
High-grade steel combined with controlled heat treatment enhances strength, hardness, and long-term operational stability under industrial conditions.
Enhances Manufacturing Flexibility
Supports various surface treatments, hardness levels, and structural modifications to adapt to diverse tooling and mold system requirements.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is Custom Guide Pillar Machining?
Custom Guide Pillar Machining is a manufacturing process that produces guide pillars according to specific drawings, dimensions, and tolerance requirements for mold and tooling systems.
What industries use Custom Guide Pillar Machining?
It is widely used in injection mold manufacturing, stamping dies, automotive tooling, electronics, medical devices, and precision industrial equipment.
What materials are used in guide pillar machining?
Common materials include SUJ2 and GCr15 bearing steel, known for high hardness, wear resistance, and long-term durability.
Can guide pillars be fully customized?
Yes. Diameter, length, hardness, surface treatment, tolerance, and structural design can all be customized based on customer requirements.
What manufacturing processes are used?
Typical processes include CNC turning, heat treatment, precision grinding, and polishing to ensure high accuracy and stable performance.
