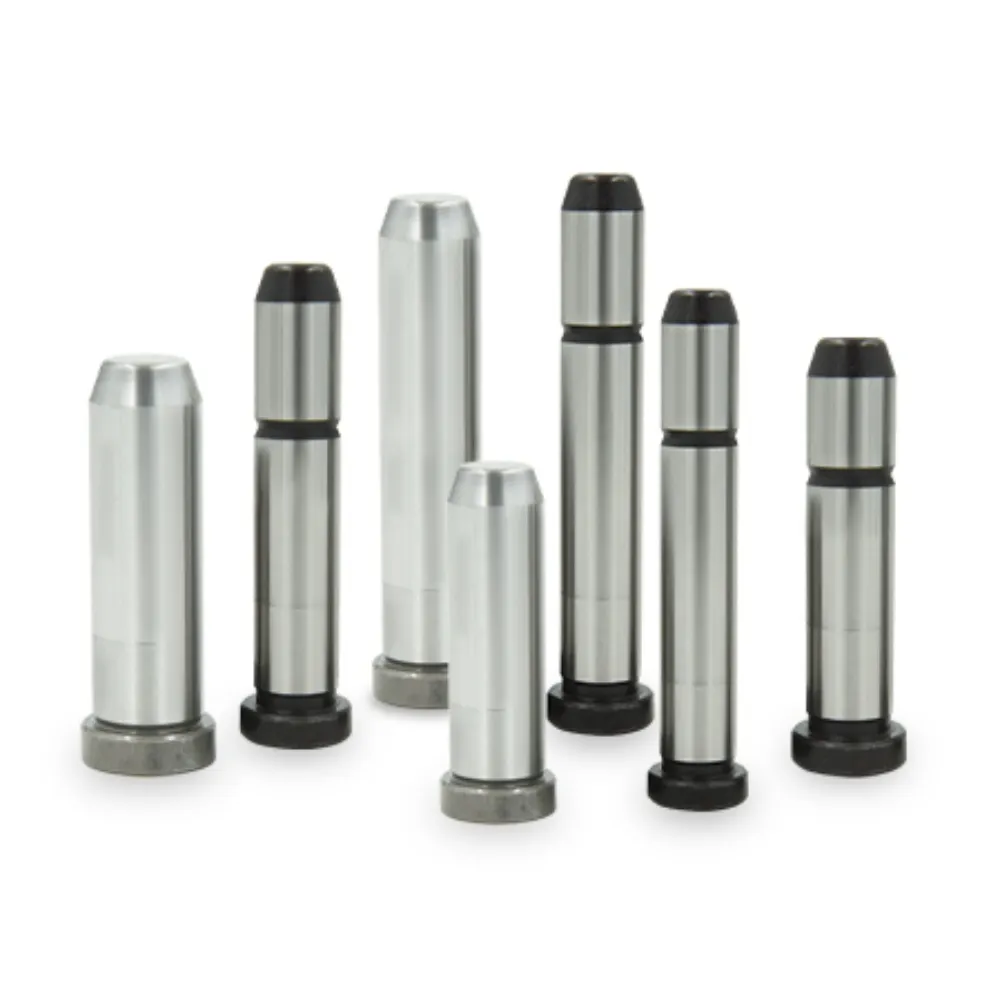

Die Casting Angled Guide Pillar
The die casting angled guide pillar is a specialized component used in molds requiring controlled inclined motion. It supports precise guiding for side actions and core pulling systems in die casting equipment. Engineered from hardened steel, it offers strong rigidity and consistent performance under high-pressure operating conditions. Its angled design improves mechanical coordination within complex mold structures. With fine surface finishing, it ensures smooth contact with mating parts and reliable alignment in continuous industrial production environments.
- Precision Angle Path Stability: Maintains consistent motion during operation cycles
- Enhanced Core Pulling Efficiency: Improves smooth side action performance control
- Reduced Mold Wear Impact: Minimizes friction damage on contact surfaces
- High Strength Load Resistance: Supports heavy pressure die casting systems
Product Description
Introduction
The die casting angled guide pillar is a precision-engineered mold component designed to support directional guiding in complex die casting systems. It is specifically used in molds that require inclined or non-linear movement, ensuring accurate alignment between moving parts during opening and closing operations. This structure is essential for core-pulling and side-action mechanisms commonly found in advanced die casting applications.
Manufactured from high-strength hardened alloy steel, the angled guide pillar provides excellent durability and resistance to wear under high pressure and continuous operation. Its precision-ground surface reduces friction and ensures smooth interaction with guide components, helping maintain stable performance even in demanding production environments. The optimized angled design improves motion control and reduces mechanical stress on mold assemblies.
This component can be customized in angle, length, diameter, and tolerance to meet different tooling requirements. It is compatible with international mold standards such as ISO and DIN, and can also be produced according to OEM drawings. Widely used in automotive parts manufacturing, aluminum and zinc die casting, and precision industrial tooling, the die casting angled guide pillar delivers reliable alignment and long-lasting performance in modern production systems.
Specifications
| Item | Description |
|---|---|
| Product Name | Die Casting Angled Guide Pillar |
| Type | Inclined / Angled Guide Post |
| Material | SUJ2 / GCr15 / 100Cr6 / SKD steel |
| Hardness | HRC 58–62 |
| Surface Treatment | Precision grinding / heat treatment |
| Angle Range | Custom (commonly 10°–45°) |
| Straightness | ≤ 0.005 mm |
| Roundness | ≤ 0.003 mm |
| Length Range | 100 mm – 800 mm (customizable) |
| Tolerance | ISO / DIN standard or OEM |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Optimized Angular Motion Control
The angled structure enables precise directional movement, ensuring accurate coordination between core pulling components and improving mold synchronization during complex die casting cycles.
Improved Structural Load Balance
Force is distributed more evenly along the inclined guide path, reducing stress concentration and enhancing overall stability of high-pressure die casting mold assemblies.
High Precision Assembly Fit
Machined with tight tolerances, the guide pillar ensures accurate matching with corresponding components, minimizing deviation and maintaining consistent mold positioning accuracy.
Extended Performance Reliability
Heat-treated alloy steel construction provides strong fatigue resistance, ensuring dependable operation and stable guiding performance under long-term continuous industrial production conditions.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a die casting angled guide pillar used for?
It is used in die casting molds to guide inclined movement, especially in core pulling and side-action mechanisms.
Q2: What materials are commonly used?
It is typically made from hardened alloy steel such as GCr15, SUJ2, or 100Cr6 for high strength and wear resistance.
Q3: Can the angle be customized?
Yes, the angle can be customized according to mold design requirements, usually ranging from 10° to 45° or as needed.
Q4: Is it compatible with standard mold systems?
Yes, it can be manufactured according to ISO, DIN, and JIS standards and is compatible with most international die casting systems.
Q5: What industries use angled guide pillars?
It is widely used in automotive parts, aluminum and zinc die casting, precision tooling, and industrial manufacturing applications.
