Precision CNC Machining for Harmonic Drive Housings
Product Description
Introduction

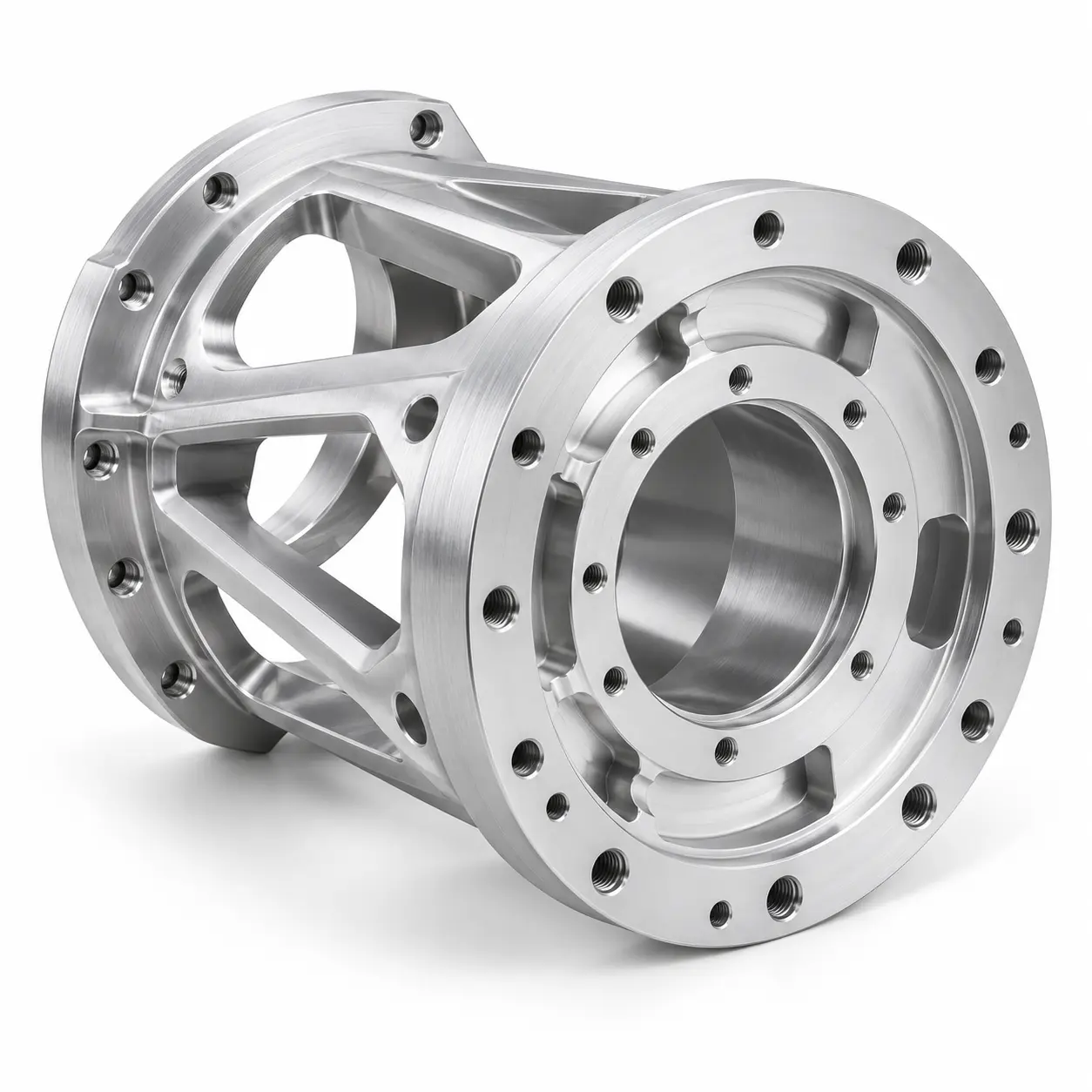

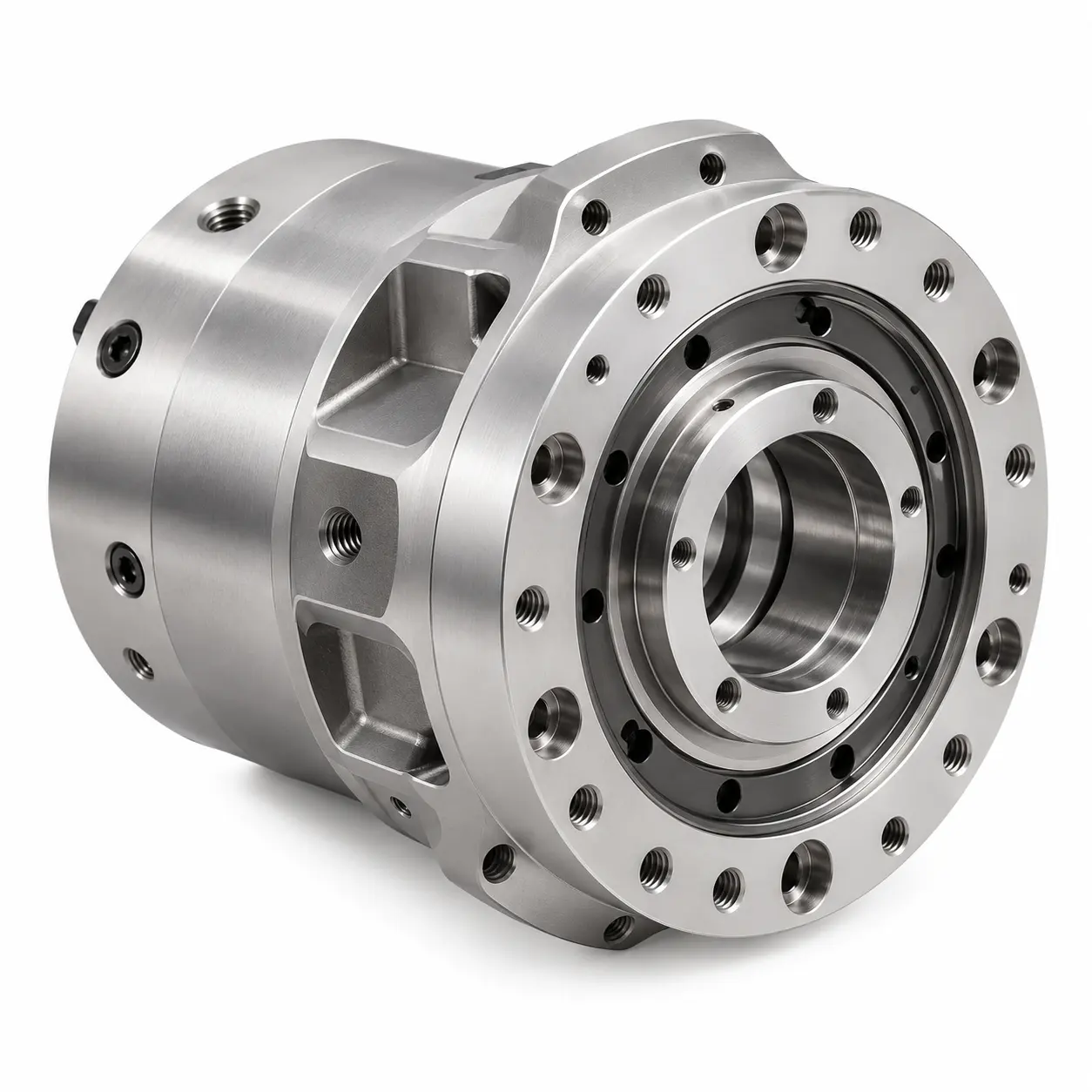

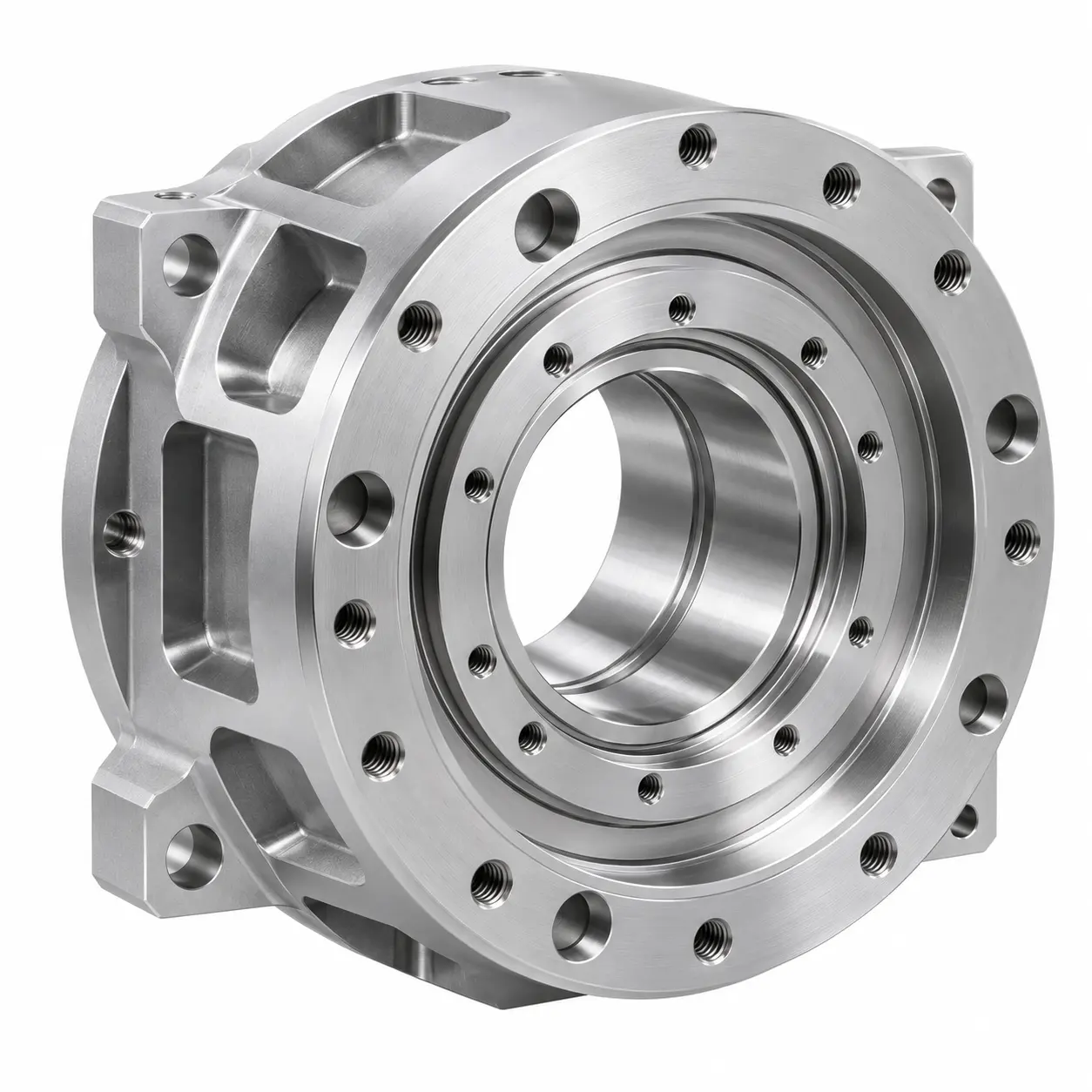

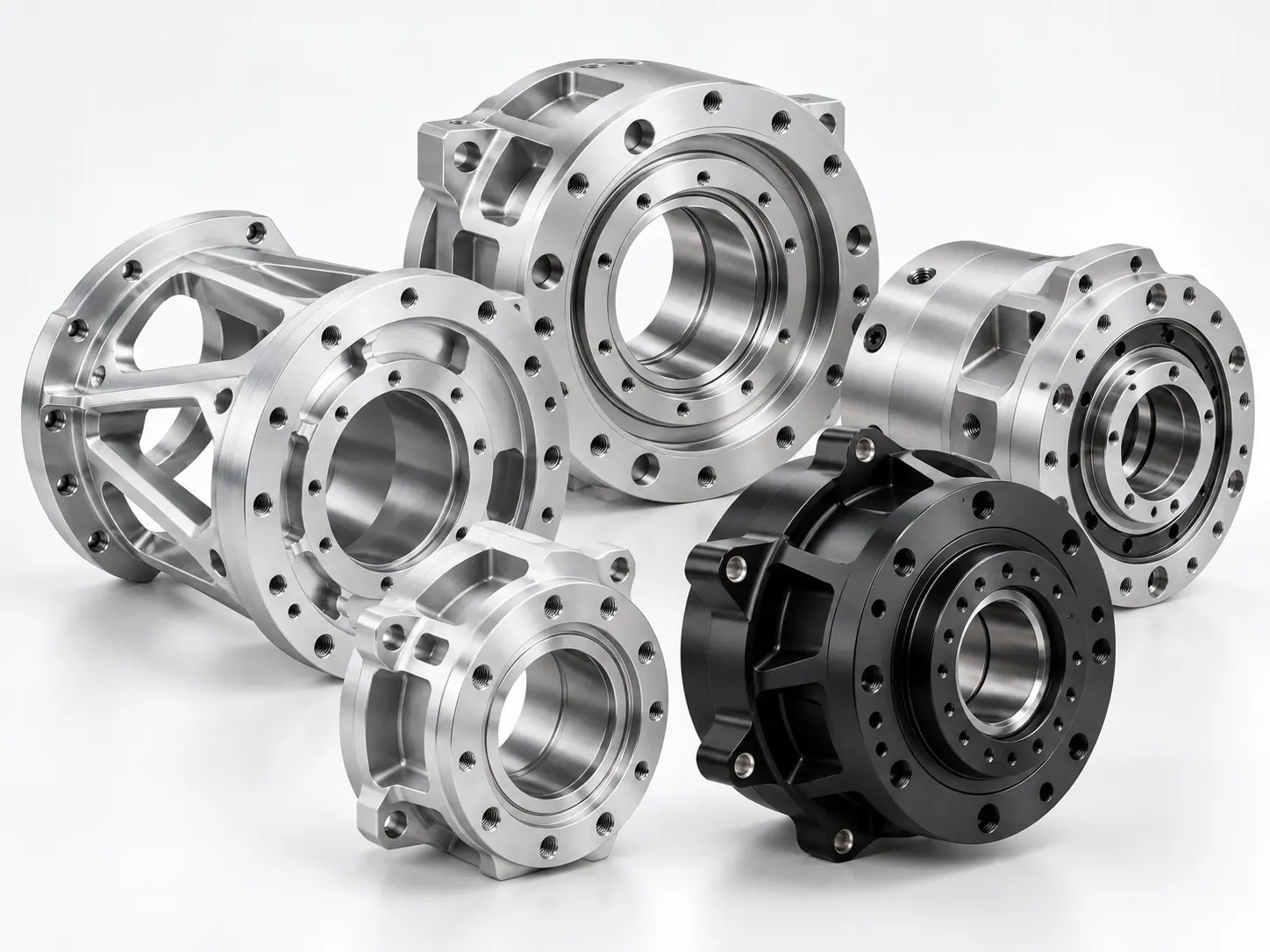

Harmonic Drive Housing CNC Machining is used to manufacture precision housings and mounting structures for compact robotic reduction systems where accurate bearing location, gearbox alignment, rigidity, and repeatable motion are critical.
These housings often include precision bearing seats, concentric bores, reducer mounting interfaces, locating shoulders, thin-wall sections, cable-clearance features, and multi-directional mounting holes. Small deviations in concentricity, runout, bore position, or mounting datums can affect reducer alignment and robotic joint performance.
Our capabilities include 3-axis, 4-axis, and 5-axis CNC milling, boring, drilling, threading, turning, and precision finishing. Housing geometry, datum strategy, workholding, and inspection methods are selected according to critical reducer and bearing interfaces.
Common materials include aluminum alloys, stainless steel, titanium, and other engineering metals, with anodizing, hard anodizing, passivation, polishing, plating, and coating available.
Specifications
| Item | Specification |
|---|---|
| Product Name | Harmonic Drive Housing CNC Machining |
| Material | Aluminum / Stainless Steel / Titanium / Tool Steel / Engineering Plastics / Custom |
| Manufacturing Process | Milling / Turning / Boring / Drilling / Threading / Tapping / Precision Finishing |
| Part Geometry | Thin-Wall / Deep Cavity / Multi-Surface / Compact Housing |
| Tolerance | Up to ±0.005 mm / According to Drawing |
| Surface Finish | Anodizing / Hard Anodizing / Passivation / Plating / Coating |
| Color | Natural / Black / Material-Dependent |
| Production Volume | Prototype and Low-Volume Production |
| Inspection | CMM / Height Gauge / Micrometer / Caliper / Custom Inspection Plan |
| Documentation | Inspection Reports and Material Documents Upon Request |
| Applications | Humanoid Robots / Collaborative Robots / Industrial Robots / Robotic Actuators / Precision Joint Modules |
| Custom Service | OEM and ODM Supported |
Three Key Customization Aspects, Tailored to Your Needs
Customized CNC machining solutions for complex robotic components and precision assembly requirements.
Precision Manufacturing, Excellent Quality
Precision Reducer Interfaces
Critical reducer and bearing mounting features are machined to support accurate mechanical alignment.
Concentric Bore Machining
Precision bores and locating features help maintain alignment between rotating components.
Lightweight Housing Design
Thin walls, pockets, ribs, and aluminum structures can reduce weight while maintaining rigidity.
Precision Inspection
CMM and bore measurement can verify dimensions, positions, runout, and other critical features.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a harmonic drive housing?
It is the structural component used to support and position a harmonic-drive-type reducer, bearings, shafts, and related mounting interfaces.
Q2: What features require high precision?
Bearing seats, concentric bores, locating shoulders, reducer mounting faces, and assembly datums are typically critical.
Q3:What materials are commonly used?
Aluminum alloys are widely used for lightweight designs, while stainless steel and titanium may be selected for higher strength or demanding environments.
Q4: Can 5-axis CNC machining be used?
Yes. It is suitable for housings with multi-angle features, deep cavities, and multiple precision interfaces.
Q5: Can prototypes be produced?
Yes. Prototype, engineering sample, and low-volume production can be supported according to drawings.
