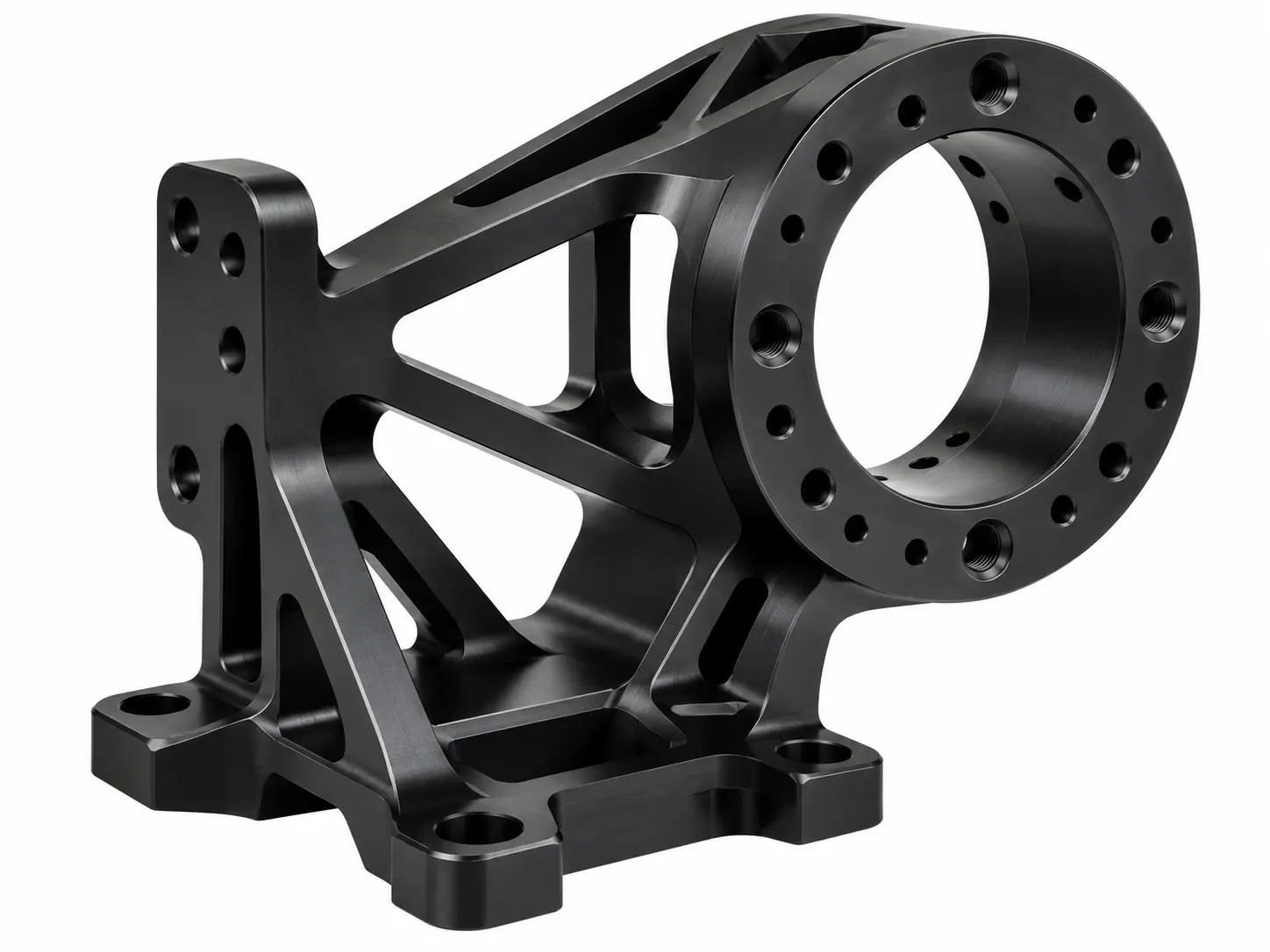

Precision CNC Machining for Robot Structural Brackets
Robot Structural Brackets CNC Machining
Precision CNC machining for robot structural brackets, including actuator mounts, sensor brackets, frame connectors, mounting plates, and lightweight support components. Supports complex geometry, tight GD&T, 5-axis machining, and prototype-to-low-volume production.
- 5-Axis CNC for Complex Brackets
- Precision Hole Position & Mounting Datums
- Lightweight Ribbed & Pocketed Structures
- Aluminum / Stainless Steel / Titanium
- Prototype & Low-Volume Production
Product Description
Introduction
Robot Structural Brackets CNC Machining is used to manufacture precision mounting and load-bearing components for robotic arms, joints, actuators, sensors, frames, and end-of-arm systems. Accurate machining helps maintain structural alignment, assembly repeatability, and rigidity while supporting lightweight robotic design.
Robotic structural brackets often include mounting holes, locating features, pockets, ribs, thin-wall sections, angled interfaces, cable-clearance features, and multi-directional attachment points. Small deviations in hole position, flatness, perpendicularity, or mounting datums can affect frame alignment, actuator positioning, sensor installation, and overall robotic assembly accuracy.
Our CNC machining capabilities include 3-axis, 4-axis, and 5-axis milling, drilling, boring, threading, tapping, pocket machining, and precision finishing. Machining strategies, datum control, fixturing, and inspection methods are selected according to bracket geometry, load direction, GD&T requirements, mounting interfaces, and weight targets.
Structural brackets can be machined from aluminum alloys, stainless steel, titanium, tool steel, and engineering plastics, with anodizing, hard anodizing, passivation, polishing, plating, coating, and other secondary processes available. Prototype, engineering sample, and low-volume production can be supported according to customer drawings.
Specifications
| Item | Specification |
|---|---|
| Product Name | Robot Structural Brackets CNC Machining |
| Material | Aluminum / Stainless Steel / Titanium / Tool Steel / Engineering Plastics / Custom |
| Manufacturing Process | Milling / Turning / Boring / Drilling / Threading / Tapping / Precision Finishing |
| Part Geometry | L-Brackets / U-Brackets / Frame Connectors / Mounting Plates / Ribbed Structures / Custom |
| Tolerance | Up to ±0.005 mm / According to Drawing |
| Surface Finish | Precision Machined / Ground / Polished / Custom |
| Color | Natural / Black / Material-Dependent |
| Production Volume | Prototype and Low-Volume Production |
| Inspection | CMM / Height Gauge / Micrometer / Caliper / Custom Inspection Plan |
| Documentation | Inspection Reports and Material Documents Upon Request |
| Applications | Robot Arms / Joint Modules / Actuator Mounts / Sensor Mounts / Frames / End Effectors |
| Custom Service | OEM and ODM Supported |
Three Key Customization Aspects, Tailored to Your Needs
Customized CNC machining solutions for complex robotic components and precision assembly requirements.
Precision Manufacturing, Excellent Quality

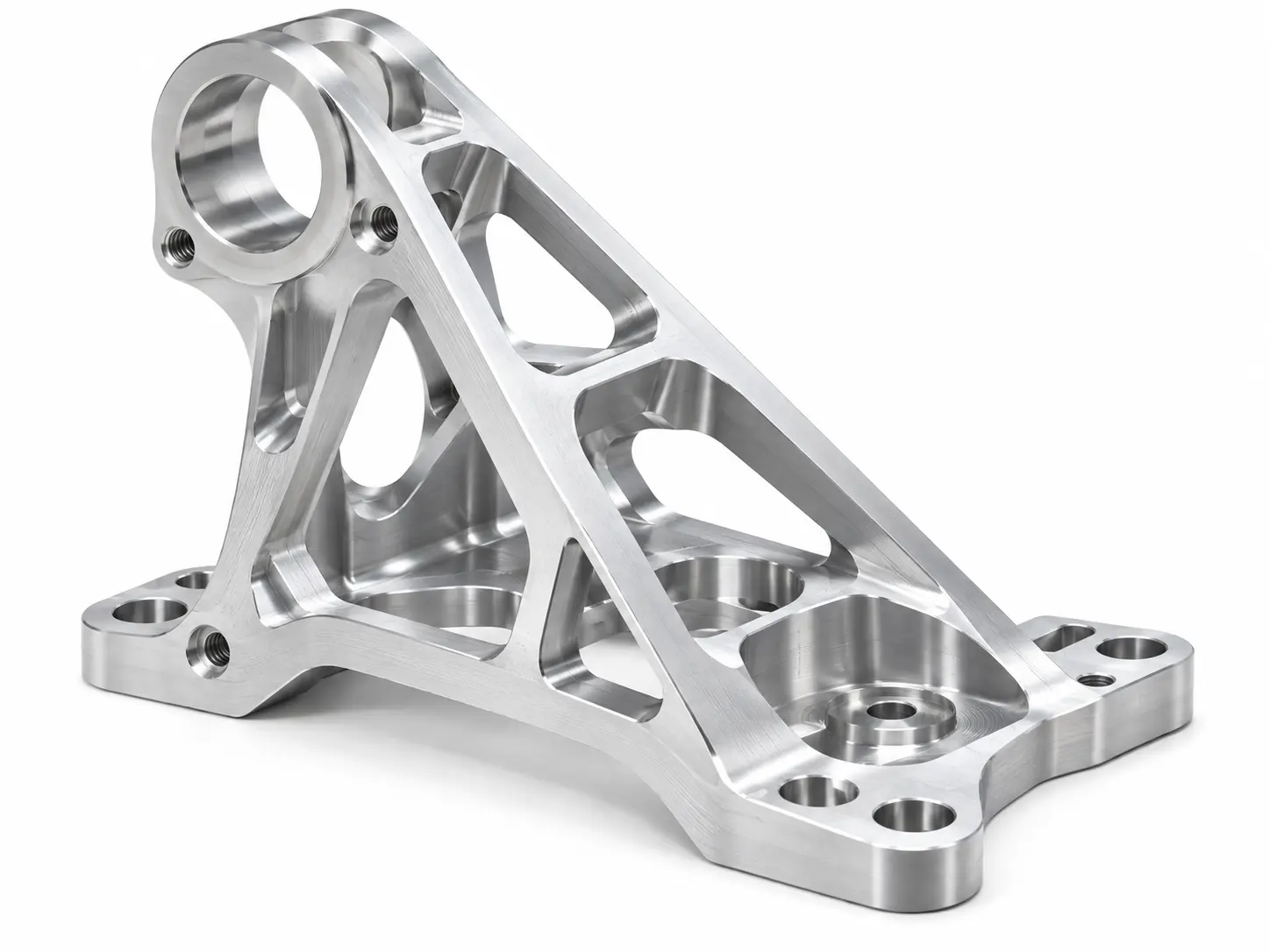

Lightweight Structural Machining
5-axis machining supports ribbed structures, deep pockets, angled mounting faces, thin-wall sections, and multi-side features while helping reduce setups and maintain dimensional consistency.
Precision Mounting Interfaces
Mounting holes, locating features, bolt patterns, and interface surfaces are carefully machined to support accurate alignment between robotic frames, actuators, joints, and sensors.

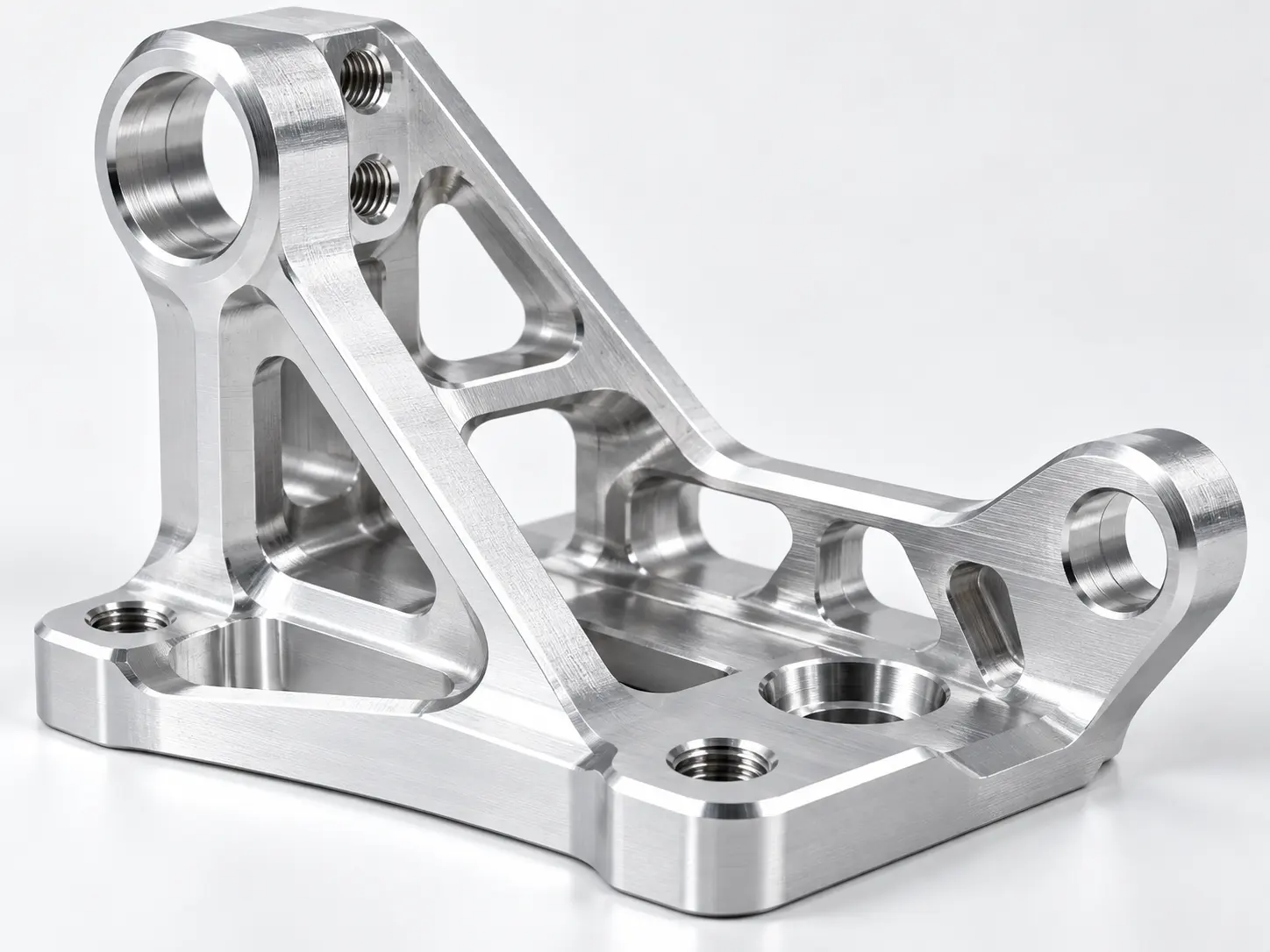

Strength-to-Weight Optimization
Aluminum, titanium, stainless steel, and other materials can be selected according to load, rigidity, weight, corrosion resistance, and operating conditions.

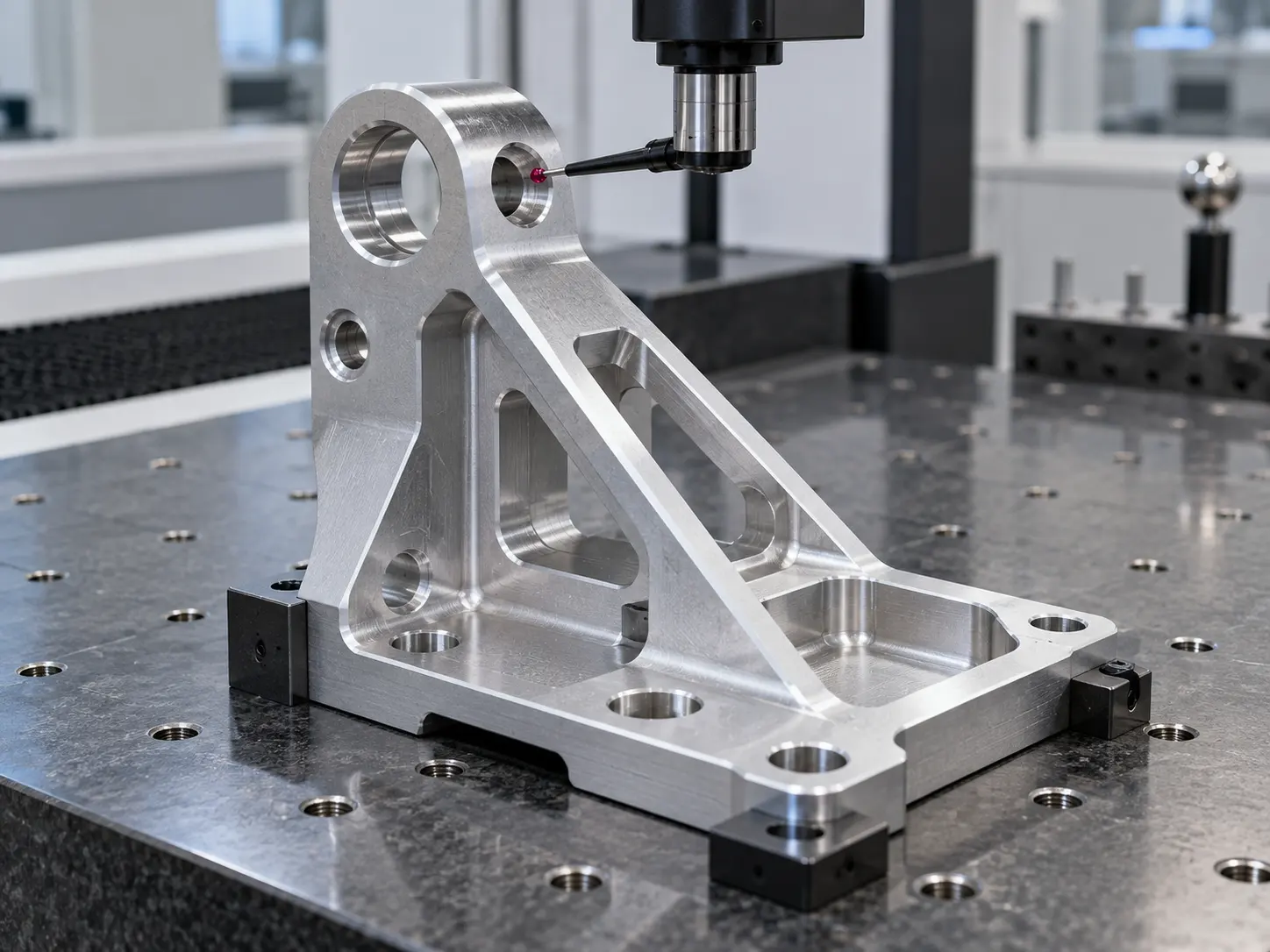

Precision Inspection
CMM, bore gauges, micrometers, and other measuring equipment can verify bore size, position, concentricity, runout, flatness, and mounting features before assembly.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What are structural brackets used for in robotics?

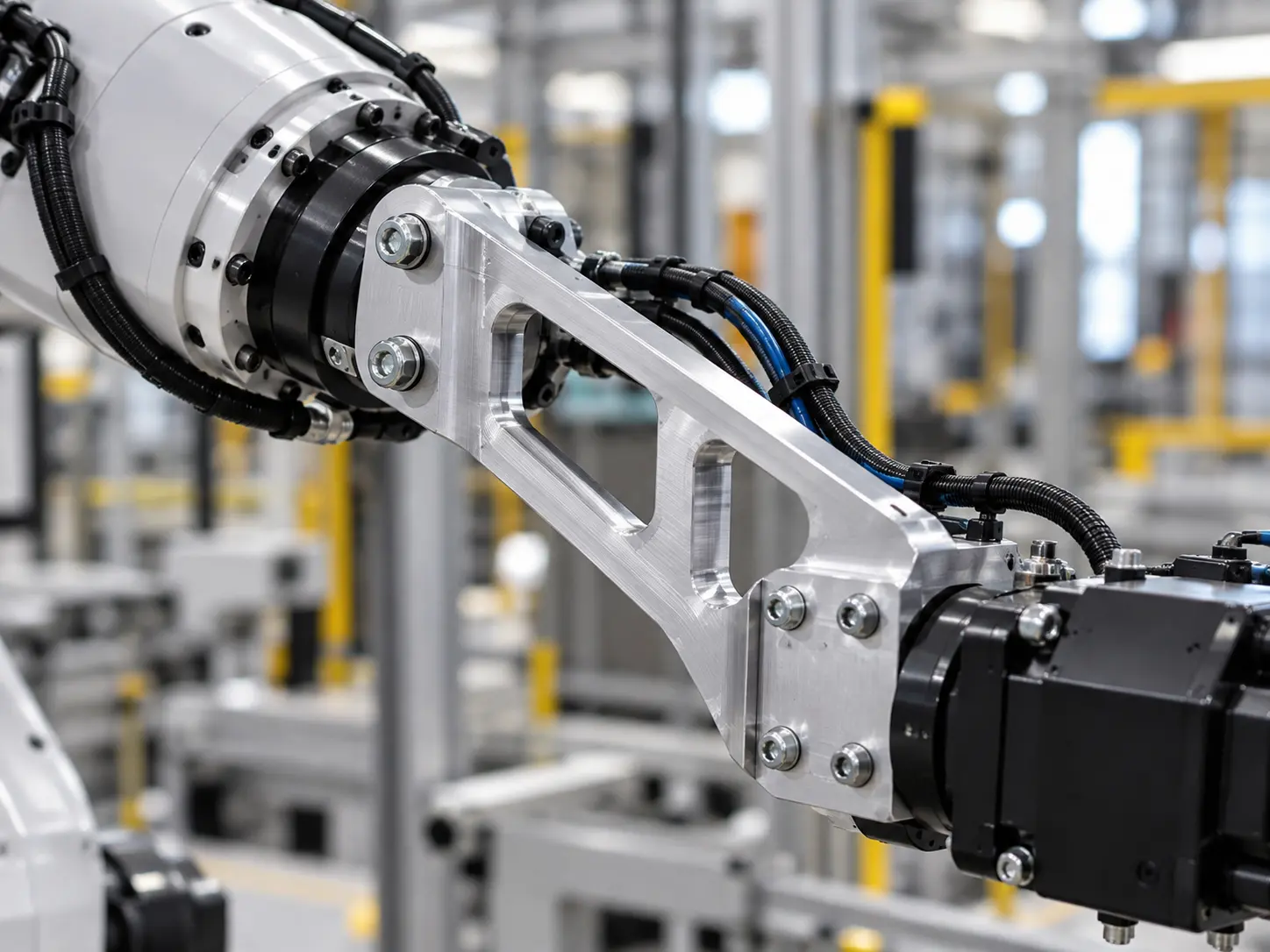

Structural brackets connect and support robotic arms, joints, actuators, sensors, frames, and end-effector systems while maintaining mechanical alignment and rigidity.
Q2: What types of robotic brackets can be CNC machined?
Common parts include L-brackets, U-brackets, actuator mounts, sensor brackets, frame connectors, mounting plates, ribbed supports, and custom structural components.
Q3:Why are hole position and flatness important?
Accurate hole position and flat mounting surfaces help maintain component alignment, reduce assembly stress, and improve repeatability between connected robotic modules.
Q4: What materials are commonly used for robotic structural brackets?
Common materials include aluminum alloys, stainless steel, titanium, copper alloys, and engineering plastics, selected according to weight, rigidity, heat dissipation, corrosion resistance, and application requirements.
Q5: Can lightweight bracket structures be CNC machined?
Yes. CNC machining can produce pockets, ribs, thin walls, cutouts, and optimized structural features to reduce weight while maintaining required stiffness and mounting accuracy.
