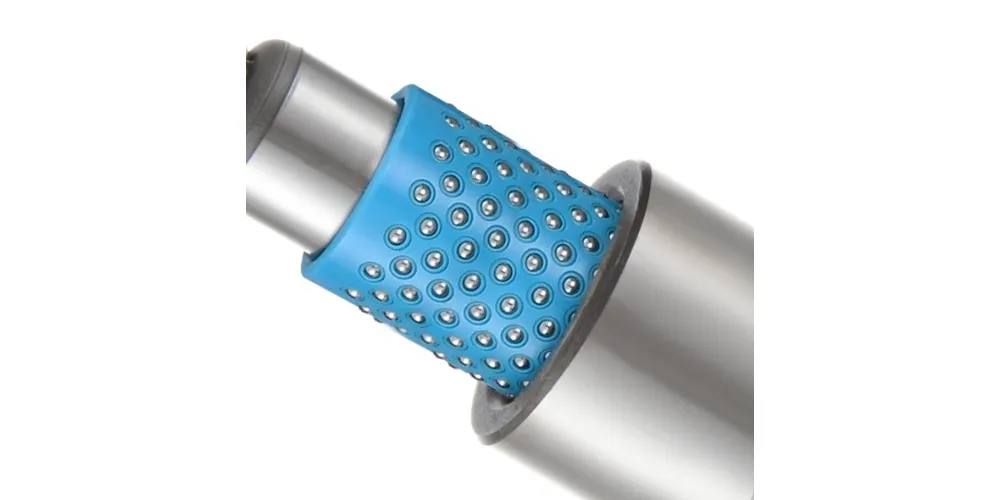

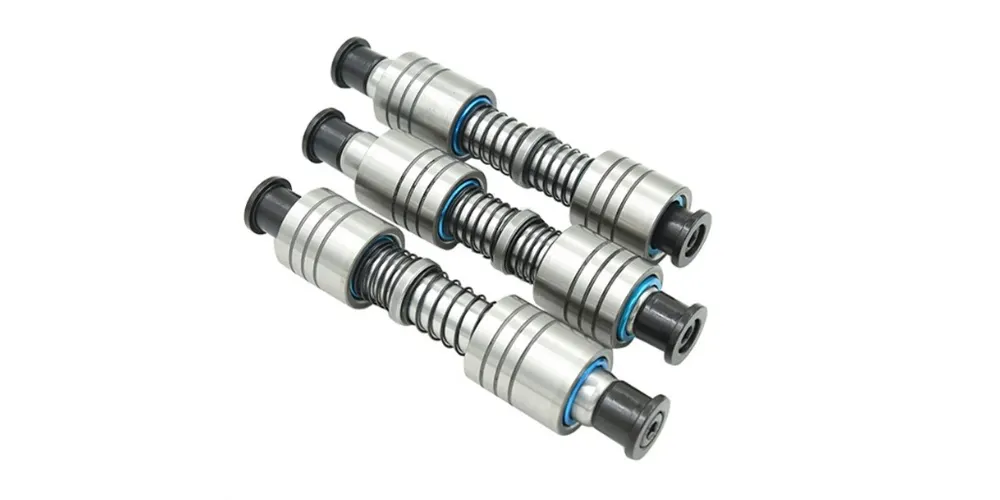

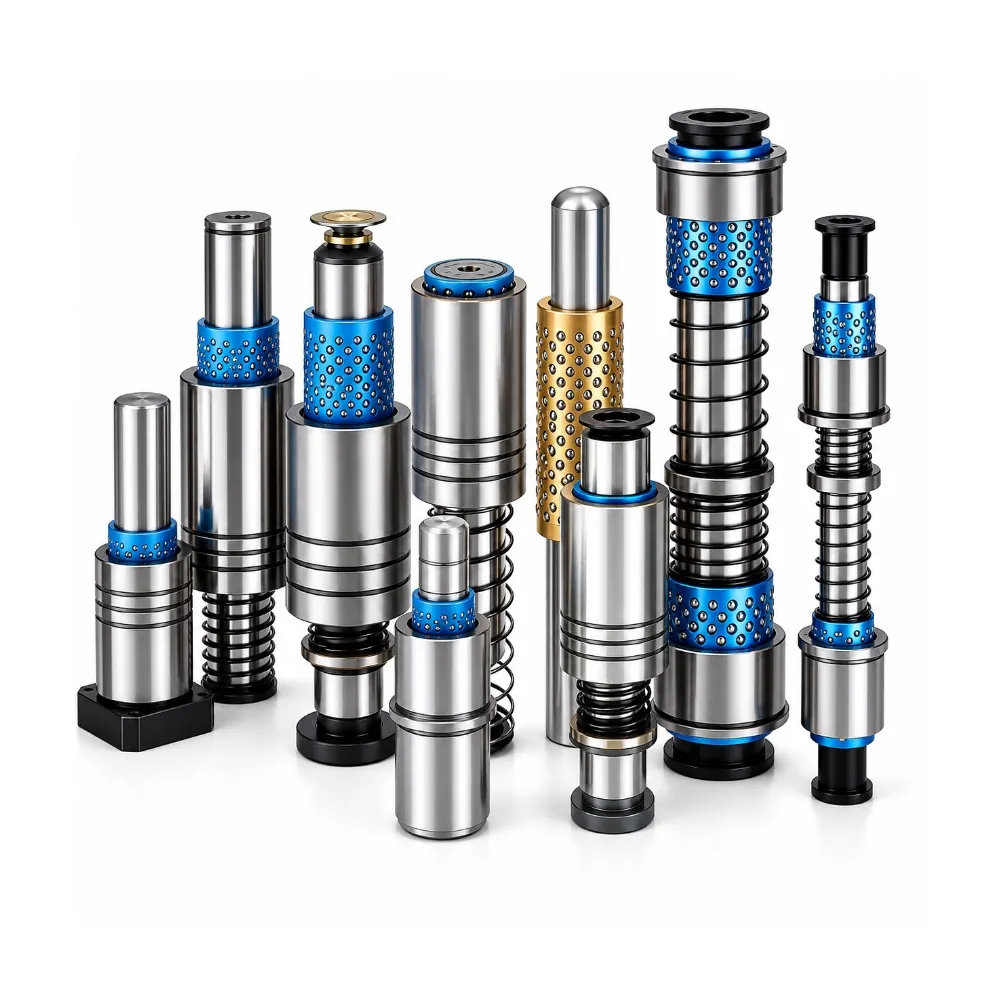

High Speed Stamping Die Guide Pillar
High Speed Stamping Die Guide Pillar is engineered for precision stamping applications where rapid cycle speeds and accurate die alignment are critical. Produced from premium hardened bearing steel, it offers outstanding fatigue resistance, wear protection, and structural stability under repeated impact loads. The precision-ground guiding surface enables smooth die movement while maintaining consistent positioning accuracy. Widely used in progressive dies, metal forming tools, connector stamping systems, and automotive component production, it supports reliable high-volume manufacturing performance.
- Optimized For Progressive Die Systems: Supports accurate multi-stage stamping operations.
- Improves Punching Accuracy Consistency: Helps maintain uniform production quality.
- Resists Repeated Impact Loading: Delivers durability under continuous stamping.
- Boosts High Volume Productivity: Supports efficient large-scale manufacturing.
Product Description
Introduction
High Speed Stamping Die Guide Pillar is a precision guiding component specifically engineered for progressive dies, high-speed stamping dies, metal forming tools, and precision press tooling systems. Designed to maintain exceptional alignment accuracy during rapid stamping operations, it helps ensure smooth die movement, consistent product quality, and stable production performance. Its advanced guiding function minimizes vibration and positioning errors in high-cycle manufacturing environments.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the High Speed Stamping Die Guide Pillar undergoes precision turning, vacuum heat treatment, grinding, and polishing processes. These advanced manufacturing techniques provide outstanding hardness, wear resistance, fatigue strength, and dimensional stability. The precision-ground guiding surface reduces friction while maintaining accurate alignment throughout continuous high-speed stamping operations.
High Speed Stamping Die Guide Pillars are widely used in progressive stamping dies, automotive metal stamping tools, connector manufacturing molds, electronic component tooling, precision punching dies, and high-volume production systems. Available in multiple diameters, lengths, and tolerance grades, they can meet both standard tooling requirements and customized engineering specifications. OEM and ODM services are available according to customer drawings and technical requirements.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | High Speed Stamping Die Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø120 mm |
| Length Range | 80 mm – 1800 mm |
| Guiding Type | High-Speed Die Guidance |
| Straightness | ≤0.003 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | Ultra High Precision |
| Operating Condition | High-Speed Continuous Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Optimized For Progressive Die Applications
Designed to deliver dependable guidance in progressive tooling systems, supporting accurate part production throughout complex stamping sequences.
Improves Punching Precision Consistency
Maintains precise die alignment during rapid press operations, helping achieve uniform results and reduce dimensional variation.
Withstands Repetitive Impact Loading
Engineered to resist fatigue caused by continuous stamping forces, ensuring reliable performance under demanding production conditions.
Supports High-Volume Manufacturing Efficiency
Stable guiding performance helps maintain production speed, reduce downtime, and improve overall operational productivity in stamping facilities.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a High Speed Stamping Die Guide Pillar?
A High Speed Stamping Die Guide Pillar is a precision guiding component used in high-speed stamping dies to ensure accurate alignment and stable die movement.
What are the advantages of a High Speed Stamping Die Guide Pillar?
It provides high alignment accuracy, excellent fatigue resistance, smooth operation, reduced wear, and reliable performance in high-cycle stamping applications.
What materials are commonly used for High Speed Stamping Die Guide Pillars?
High Speed Stamping Die Guide Pillars are typically manufactured from SUJ2 or GCr15 bearing steel, offering high hardness, durability, and wear resistance.
Can High Speed Stamping Die Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, mounting configurations, surface treatments, and special specifications can be manufactured according to customer drawings and production requirements.
Where are High Speed Stamping Die Guide Pillars commonly used?
They are widely used in progressive dies, precision stamping dies, automotive stamping tools, connector manufacturing dies, metal forming equipment, and high-volume production systems.
