Precision CNC Machining for Robot Base Plates
Robot Base Plate CNC Machining
Precision CNC machining for robot base plates with accurate bolt patterns, dowel locations, flat datum surfaces, cable openings, threaded holes, and custom mounting features. Supports large-format machining, tight GD&T, custom materials, and prototype-to-low-volume production.Recommended supporting points.Precision Robot Bolt & Dowel Patterns
- Flat Mounting Datums & Position Control
- Custom Cable Openings & Structural Pockets
- Aluminum / Carbon Steel / Stainless Steel
- Prototype, One-Off & Low-Volume Production
Product Description
Introduction

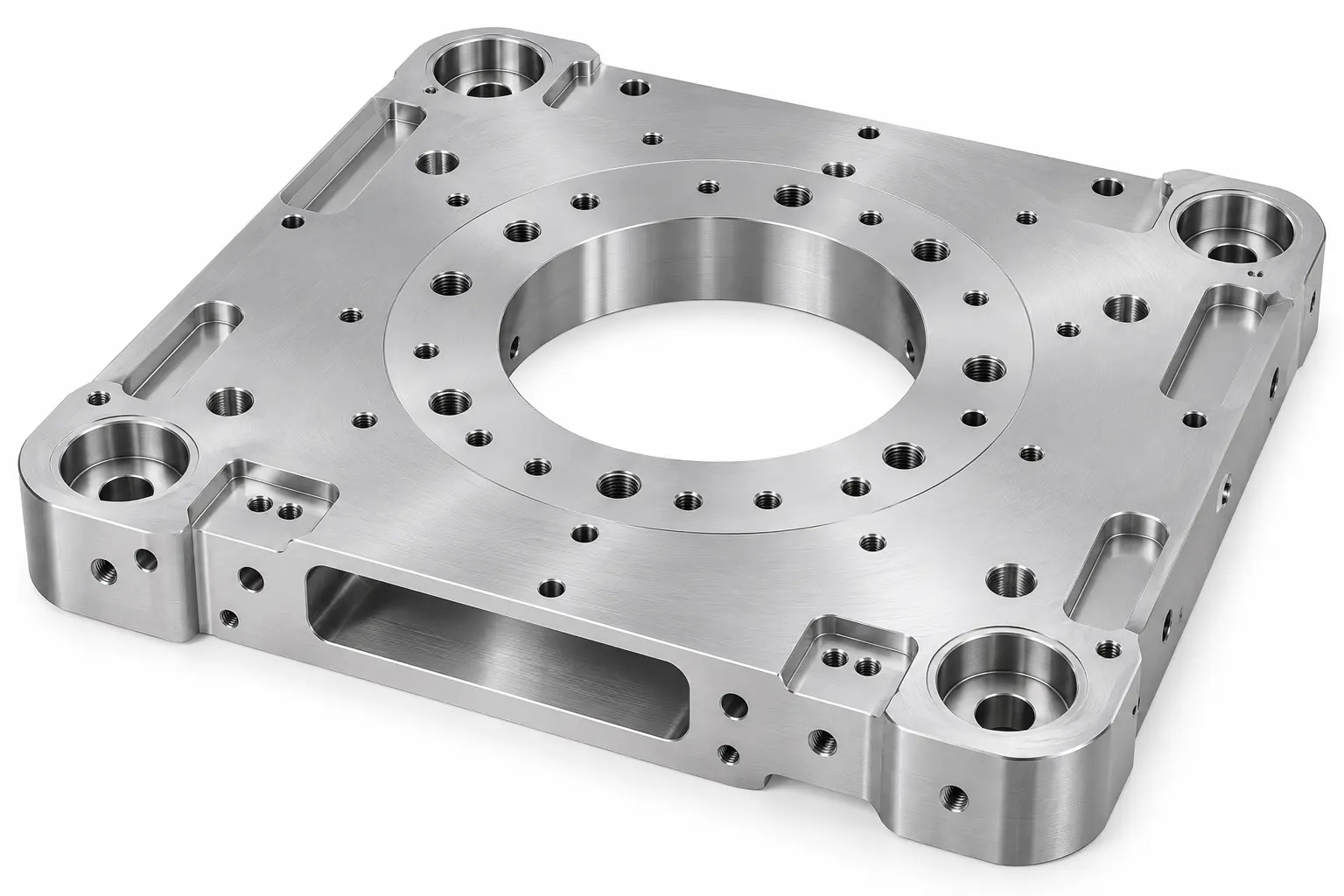

Robot Base Plate CNC Machining is used to manufacture rigid mounting foundations for industrial robots, collaborative robots, robotic cells, automated equipment, and custom motion systems. The base plate establishes a stable reference between the robot and the supporting floor, frame, machine, or automation platform.
Robot base plates often include large flat mounting surfaces, robot bolt patterns, precision dowel holes, locating features, threaded holes, counterbores, cable openings, recessed pockets, and structural mounting interfaces. Small deviations in flatness, hole position, parallelism, or datum location can affect robot installation, alignment, structural stability, and repeatability after assembly or maintenance.
Our CNC machining capabilities include 3-axis and 5-axis milling, drilling, boring, threading, tapping, counterboring, pocket machining, and precision surface finishing. Machining strategies, workholding, datum control, and inspection methods are selected according to base plate size, thickness, mounting pattern, flatness requirements, and installation conditions.
Robot base plates can be machined from aluminum alloys, carbon steel, stainless steel, tool steel, and other engineering materials, with anodizing, black oxide, plating, passivation, painting, powder coating, and other secondary treatments available. Prototype, custom one-off, and low-volume production can be supported according to customer drawings.
Specifications
| Item | Specification |
|---|---|
| Product Name | Robot Base Plate CNC Machining |
| Material | Aluminum / Carbon Steel / Stainless Steel / Tool Steel / Custom |
| Manufacturing Process | Milling / Turning / Boring / Drilling / Threading / Tapping / Precision Finishing |

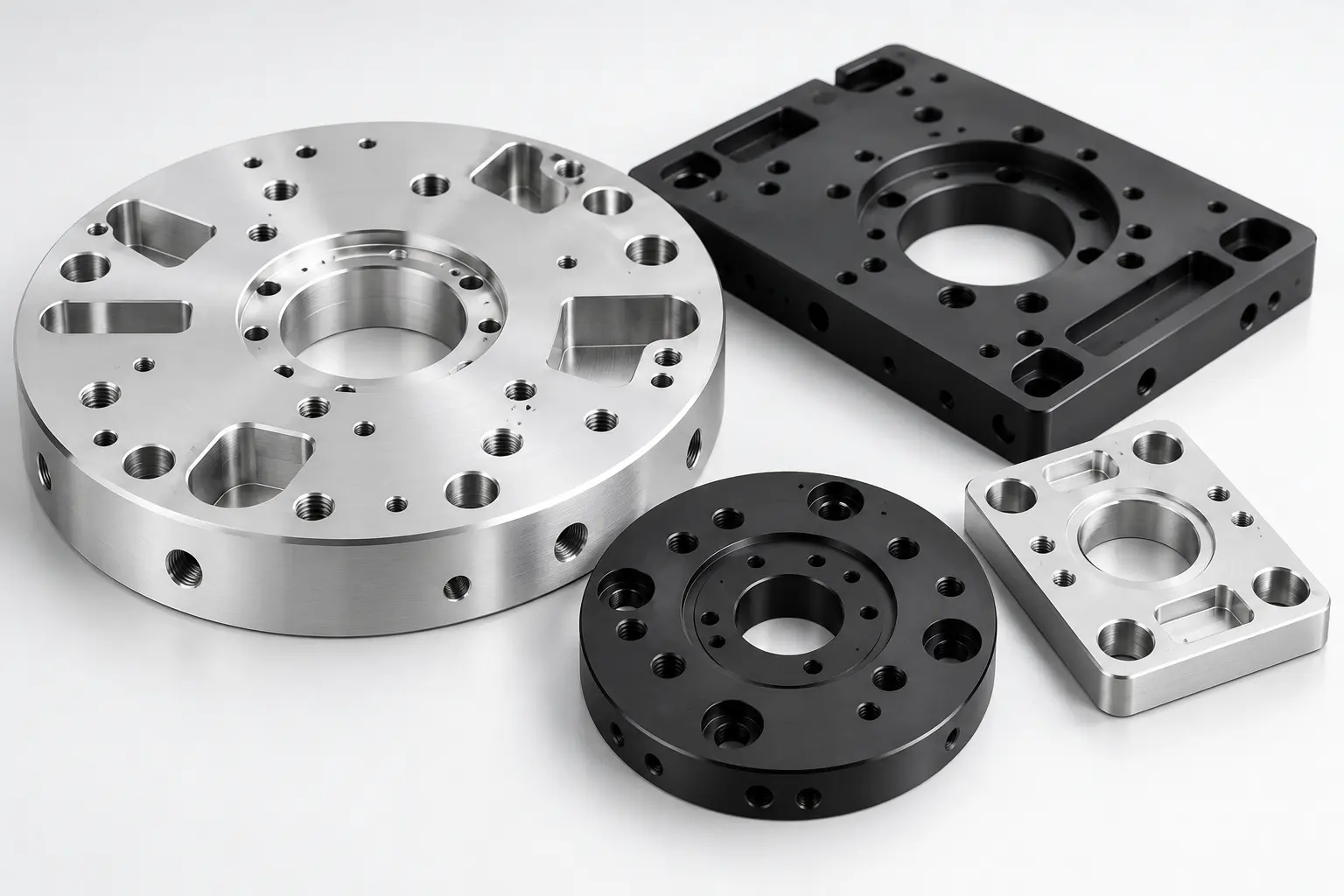

| Part Geometry | Round / Square / Rectangular / Thick Plate / Pocketed / Custom |
| Tolerance | Up to ±0.005 mm / According to Drawing |
| Surface Finish | Anodizing / Hard Anodizing / Passivation / Plating / Coating |
| Color | Natural / Black / Material-Dependent |
| Production Volume | Prototype and Low-Volume Production |
| Inspection | CMM / Height Gauge / Micrometer / Caliper / Custom Inspection Plan |
| Documentation | Inspection Reports and Material Documents Upon Request |
| Applications | Humanoid Robots / Collaborative Robots / IIndustrial Robots / Collaborative Robots / Humanoid Robot Test Platforms / Automation Cells / Machine Tending / Robotic Workstations |
| Custom Service | OEM and ODM Supported |
Three Key Customization Aspects, Tailored to Your Needs
Customized CNC machining solutions for complex robotic components and precision assembly requirements.
Precision Manufacturing, Excellent Quality
Large Surface Precision Machining
Precision milling and surface finishing help maintain large, flat mounting areas that provide stable contact between the robot and supporting structure.

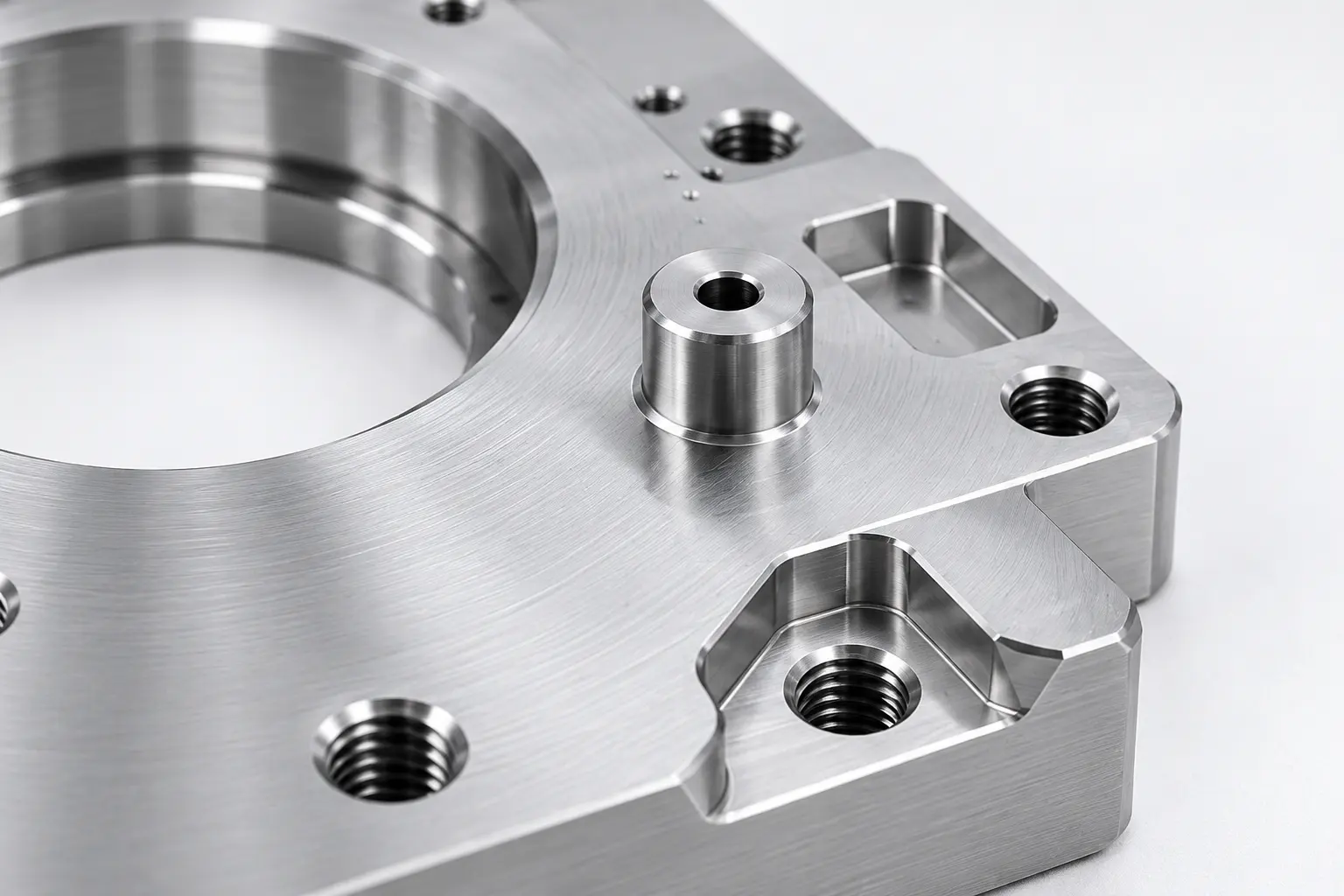

Precision Bolt & Dowel Patterns
Robot bolt patterns, locating holes, dowel holes, threaded holes, and counterbores can be machined according to installation drawings to support accurate positioning.
Structural Rigidity & Weight Optimization
Material, thickness, pockets, ribs, and cutouts can be selected according to stiffness, payload, equipment layout, and weight requirements.
Precision Inspection
CMM, surface plates, height gauges, micrometers, and other inspection equipment can verify flatness, hole position, datum relationships, parallelism, and critical mounting dimensions before delivery.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ

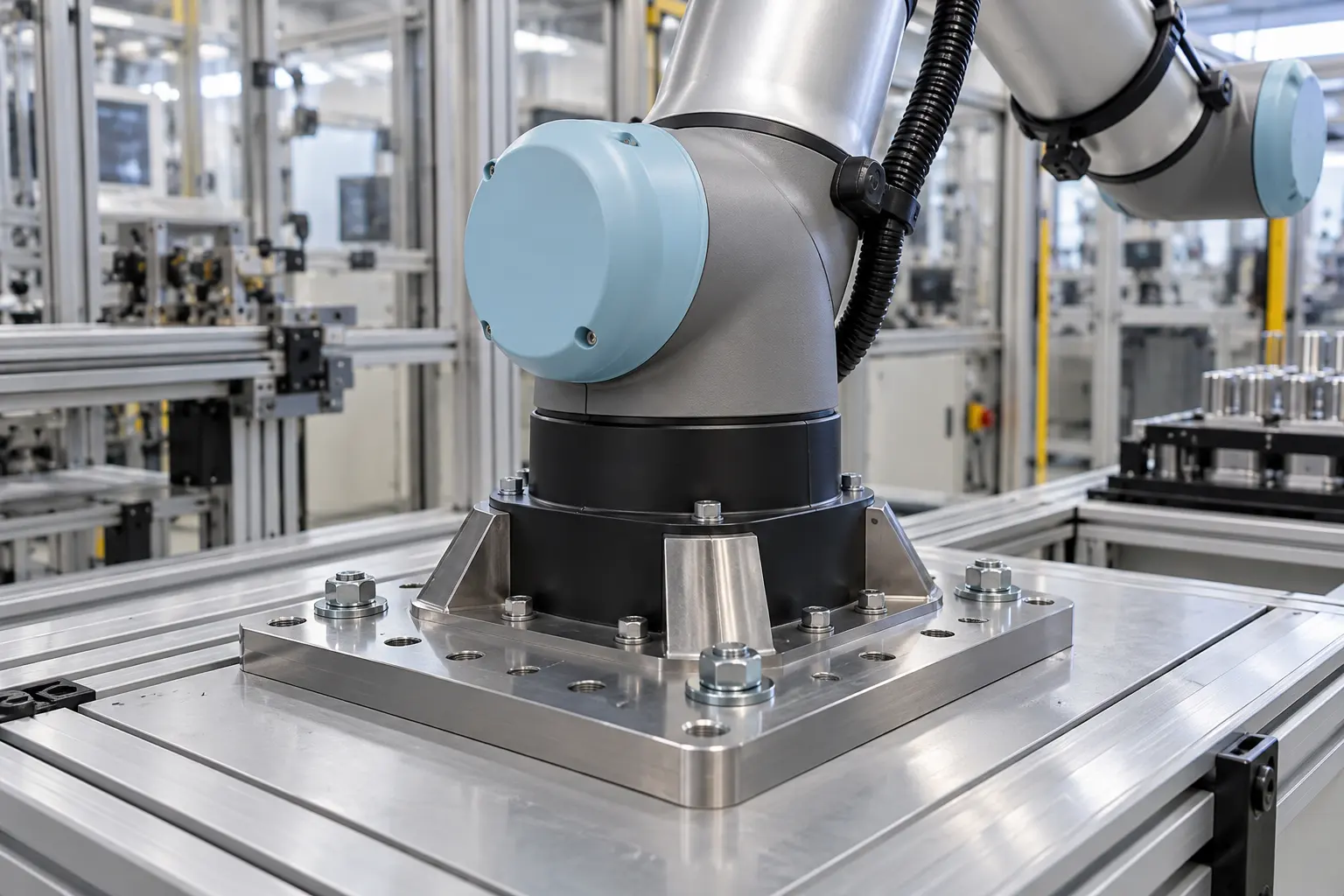

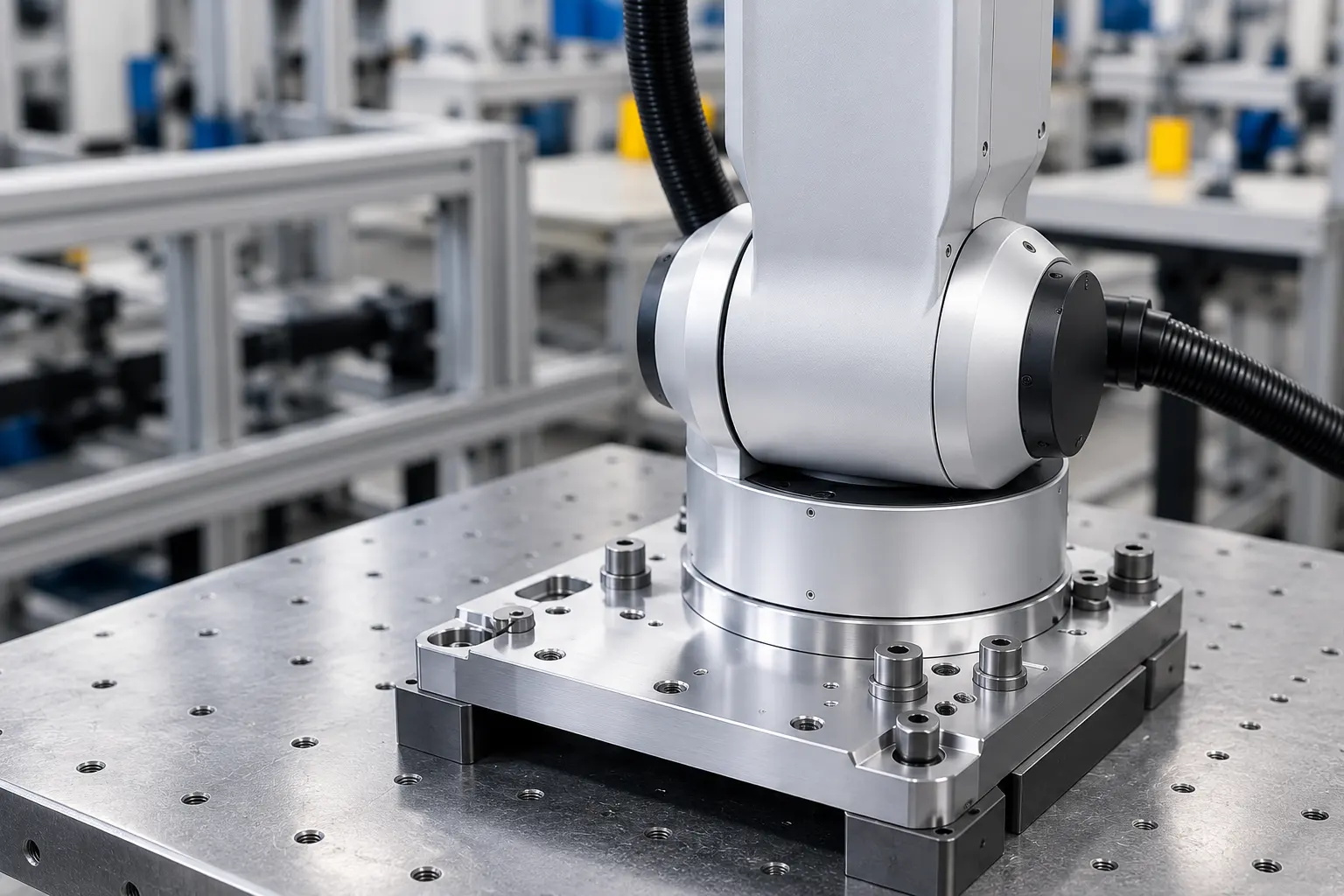

Q1: What is a robot base plate? A robot base plate is a structural mounting component used to secure a robot to a floor, machine, frame, pedestal, automation cell, or other supporting structure.
Q2: Why is flatness important for a robot base plate?
A flat mounting surface helps provide stable contact between the robot and supporting structure, reducing installation stress and helping maintain consistent alignment.
Q3:Can custom robot bolt patterns be machined?
Yes. Bolt holes, threaded holes, dowel locations, counterbores, cable openings, and other mounting features can be machined according to customer drawings.
Q4: Can large robot base plates be CNC machined?
Yes, depending on plate dimensions, machine travel, thickness, material, and required tolerances. Large-part machining requirements can be reviewed according to the drawing.
Q5: Can pockets and cable openings be added?
Yes. Weight-reduction pockets, cable passages, recessed areas, slots, and other structural features can be machined according to the robot cell layout.
