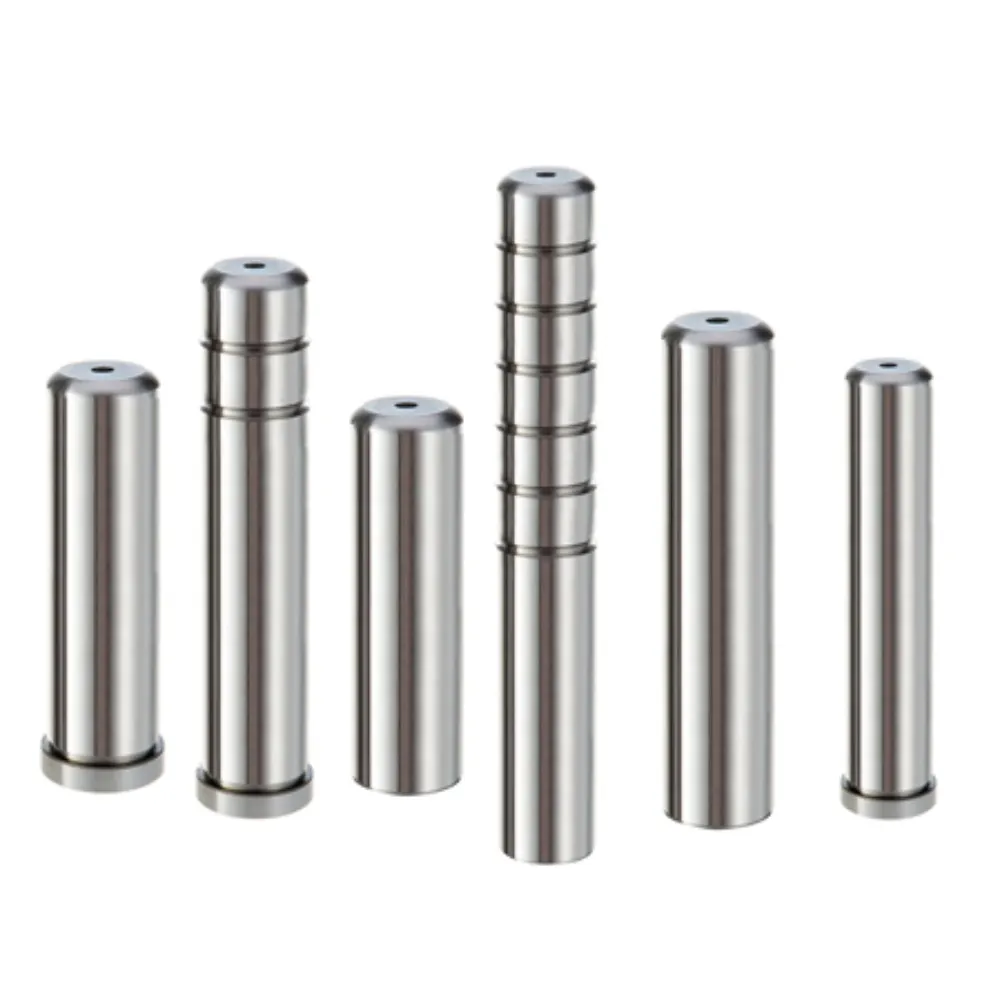

Injection Mold Ejector Plate Guide Pillar
Injection Mold Ejector Plate Guide Pillar is designed to support accurate movement control of ejector plate assemblies in mold systems. It helps maintain stable guidance during mold opening and closing processes, ensuring smooth mechanical operation and consistent positioning performance. The structure contributes to improved coordination within the ejector mechanism and supports reliable cycle operation. With durable construction and stable guiding function, it is suitable for industrial applications requiring precise motion control, long service life, and dependable mold performance.
- Precise Ejector Alignment Control: ensures accurate positioning
- Enhanced Component Movement Smoothness: reduces operational resistance
- Improved System Structural Strength: increases load capacity
- Stable Repeated Cycle Operation: supports continuous production
Product Description
Introduction
Injection Mold Ejector Plate Guide Pillar is a precision component used in injection mold ejector systems to ensure accurate alignment and stable movement of the ejector plate. It plays a key role in maintaining controlled motion during mold opening and closing, helping the ejector system operate smoothly and reliably. By ensuring proper guidance, it reduces misalignment and improves overall mold performance in high-cycle production environments.
The product is manufactured from high-quality bearing steel, alloy steel, or hardened tool steel and undergoes heat treatment and precision grinding. These processes provide excellent hardness, strong wear resistance, and stable dimensional accuracy. The finely finished surface ensures smooth contact with matching guide bushings, reducing friction and ensuring consistent guiding performance even under continuous and high-frequency ejection operations.
Injection Mold Ejector Plate Guide Pillar is widely used in plastic injection molds, automotive component molds, electronic product housings, household appliance molds, and industrial tooling systems. It is especially suitable for applications requiring stable ejector plate guidance and precise alignment under repeated operating cycles. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or technical requirements. This makes it a reliable solution for improving ejector system stability, reducing wear, and ensuring long-term operational efficiency in modern mold manufacturing environments.
Specifications
| Item | Description |
|---|---|
| Product Name | Injection Mold Ejector Plate Guide Pillar |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Straight / Standard Guide Type |
| Surface Finish | Precision Ground |
| Function Type | Ejector Plate Guidance |
| Tolerance | High Precision Standard |
| Size Range | Standard and Custom Sizes |
| Service Life | Long Cycle Industrial Use |
