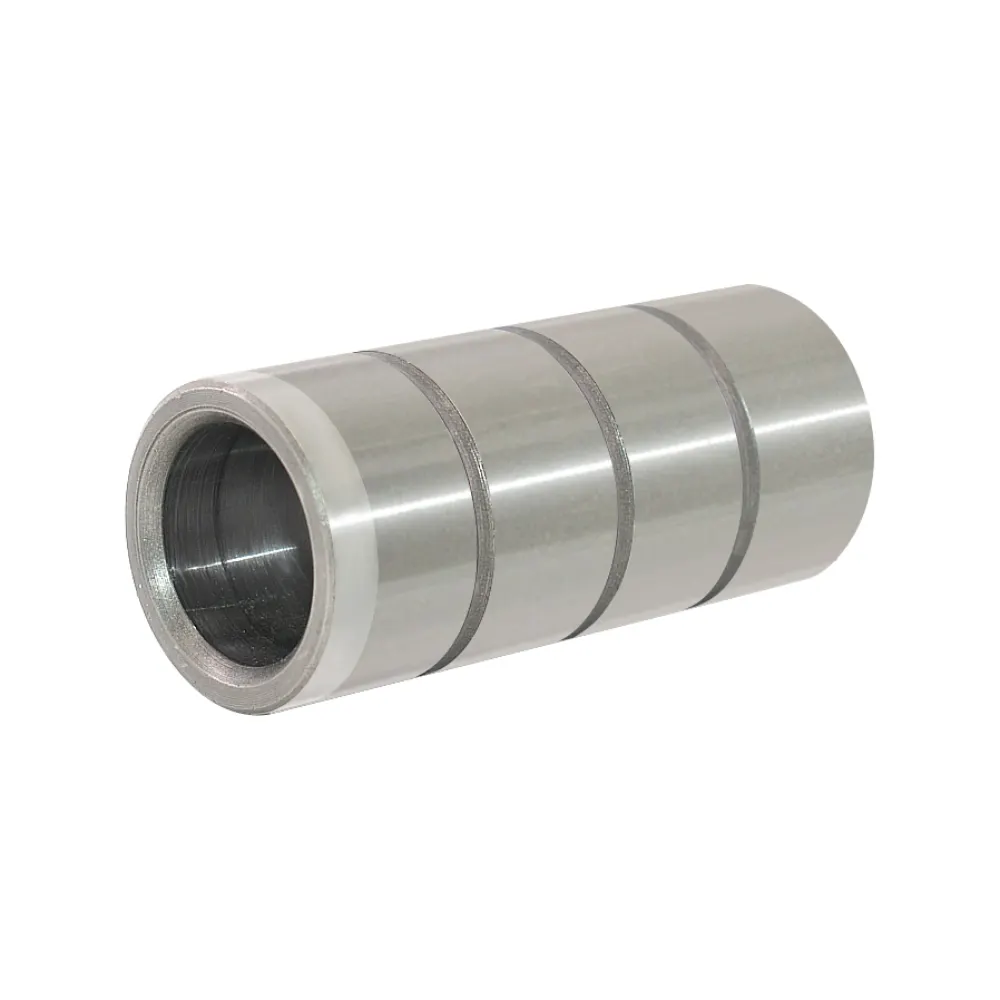

Outer Guide Bushing
Outer Guide Bushing is an external mold alignment component designed to support accurate guiding between die assemblies. It helps stabilize motion paths and maintain consistent positioning during stamping processes. With its robust structure and precise machining, it ensures dependable performance in industrial production environments, supporting smooth operation and improved tooling efficiency over long-term use.
- Load Stability: Maintains steady force handling
- Assembly Precision: Ensures accurate fitting alignment
- Impact Resistance: Handles repeated stamping force
- Wear Reduction: Extends component service life
Product Description
Introduction
Outer Guide Bushing is a precision external alignment component designed for mold systems that require stable and accurate guiding performance. Installed on the outer structure of die assemblies, it works together with guide pillars and internal bushings to maintain consistent positioning during stamping and forming operations. This ensures smooth linear movement, reduces mechanical deviation, and improves overall mold accuracy in high-speed production environments.
Manufactured from high-quality bearing steel or hardened tool steel, Outer Guide Bushing provides excellent wear resistance, high strength, and long service life. Advanced CNC machining, precision grinding, and heat treatment processes ensure tight dimensional tolerances up to ±0.002 mm. The finely polished inner surface minimizes friction between guiding components, allowing stable and smooth motion even under continuous heavy-duty operation. This helps reduce maintenance frequency and improves production efficiency.
Outer Guide Bushing is widely used in automotive stamping, electronics manufacturing, household appliance production, progressive die systems, and industrial metal forming applications. It is suitable for both standard and customized mold structures, offering flexible options in size, material, and lubrication design. Its reliable performance makes it an essential component for maintaining precise alignment, improving tool life, and ensuring stable operation in demanding industrial environments.
Specifications
| Item | Description |
|---|---|
| Product Name | Outer Guide Bushing |
| Installation Type | External / Outer Mount |
| Material | Bearing Steel / Hardened Tool Steel |
| Hardness | HRC 58–62 |
| Tolerance | ±0.002 mm |
| Inner Diameter | Standard or Customized |
| Outer Diameter | Standard or Customized |
| Length | Customized |
| Surface Finish | Precision Ground / Polished |
| Lubrication Type | Oil Groove Optional |
| Manufacturing Process | CNC Machining + Grinding + Heat Treatment |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Flexible Installation Design
Outer Guide Bushing supports external mounting, allowing easier integration into different mold structures. It improves assembly flexibility and adapts well to various die layouts and installation requirements.
Improved Structural Support
It provides additional external guiding strength, helping stabilize mold movement and reducing deviation during repeated stamping cycles in industrial production environments.
Efficient Load Distribution
The design helps distribute mechanical stress more evenly across the guiding system, reducing localized wear and improving overall operational balance during high-pressure applications.
Reliable Long-Term Operation
Manufactured with precision machining and hardened materials, it maintains consistent guiding accuracy and stable performance even under extended industrial use conditions.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is an Outer Guide Bushing used for?
It is used in mold systems to provide external alignment support and ensure stable guiding of die components during operation.
2. How does an Outer Guide Bushing function?
It works with guide pillars and internal bushings to maintain precise alignment and smooth linear motion in stamping and molding processes.
3. What materials are used for Outer Guide Bushing?
It is commonly made from hardened steel or bearing steel to ensure durability and wear resistance.
4. Where is Outer Guide Bushing commonly applied?
It is widely used in stamping dies, injection molds, automotive parts manufacturing, and industrial tooling systems.
5. Can Outer Guide Bushing be customized?
Yes, it can be customized in size, tolerance, material, and lubrication features based on specific application requirements.
