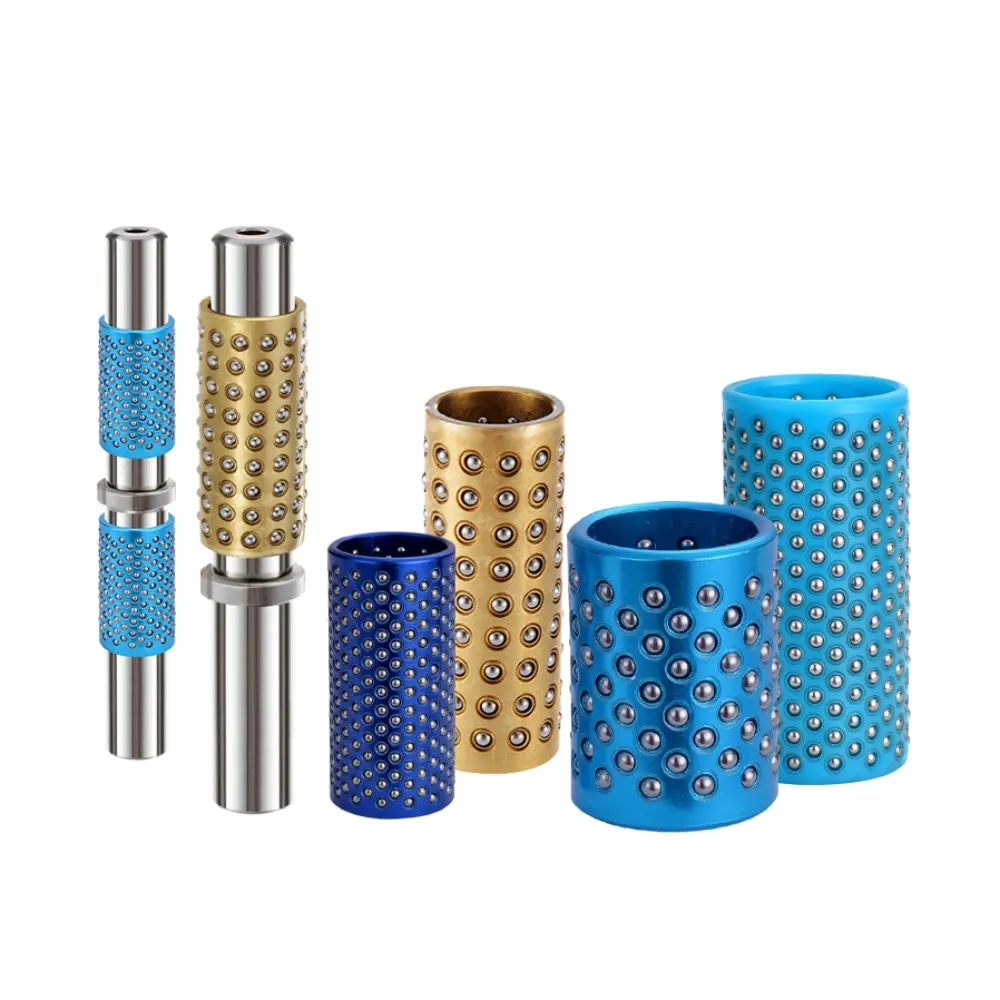

Precision Ball Guide Bush
Precision Ball Guide Bush is developed for mold systems that require accurate guidance and smooth mechanical movement. It provides stable support for high-speed positioning between mold components, ensuring consistent alignment during repetitive operations. The rolling structure improves motion efficiency while reducing resistance and mechanical stress. With reliable construction and steady performance characteristics, it is suitable for precision manufacturing environments where accuracy, durability, and continuous operational stability are critical.
- Stable Rolling Guidance System: maintains smooth motion consistency
- Reduced Friction Contact Variation: minimizes resistance fluctuation
- Improved Load Distribution Balance: enhances structural stability
- Reliable Continuous Operation Support: ensures long production use
Product Description
Introduction

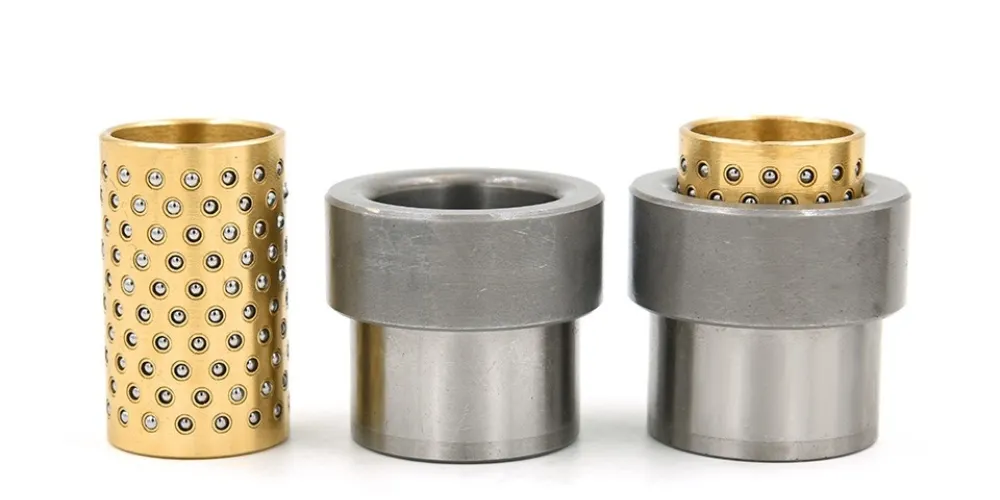

Precision Ball Guide Bush is a high-accuracy guiding component designed for mold systems that require smooth motion and precise alignment. It uses a rolling ball structure to replace traditional sliding contact, allowing stable and low-resistance movement between guide pillars and mold bases. This helps maintain consistent positioning accuracy during high-speed and repetitive production cycles, improving overall mold efficiency and operational stability.

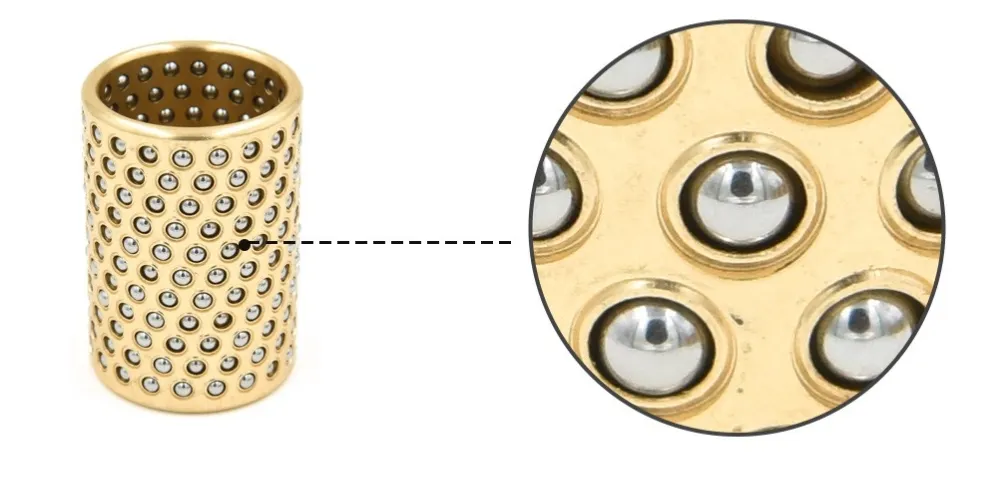

The product is manufactured from high-quality bearing steel and undergoes advanced heat treatment and precision grinding processes. These manufacturing methods ensure excellent hardness, strong wear resistance, and stable dimensional accuracy under continuous operation. The internal ball cage structure enables uniform rolling contact, effectively reducing friction, heat buildup, and mechanical wear, which enhances long-term performance in demanding industrial environments.
Precision Ball Guide Bush is widely used in high-speed injection molds, progressive stamping dies, electronic component molds, automotive manufacturing systems, semiconductor tooling equipment, and industrial automation machinery. It is especially suitable for applications requiring ultra-smooth movement and high positioning accuracy. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or specific engineering requirements, making it a reliable solution for improving precision, reducing maintenance frequency, and ensuring stable long-term operation in modern manufacturing systems.
Specifications
| Item | Description |
|---|---|
| Product Name | Precision Ball Guide Bush |
| Material | SUJ2, GCr15, Bearing Steel |
| Structure Type | Ball Cage Type |
| Hardness | HRC 58–62 |
| Surface Finish | Precision Ground |
| Motion Type | Rolling Contact System |
| Friction Level | Ultra Low |
| Accuracy Grade | High Precision Standard |
| Service Life | Long Cycle Operation |
