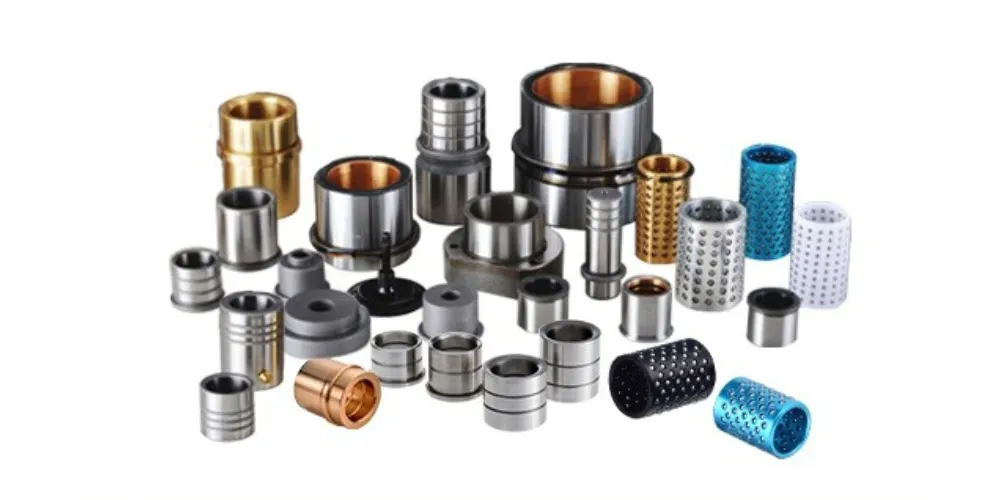

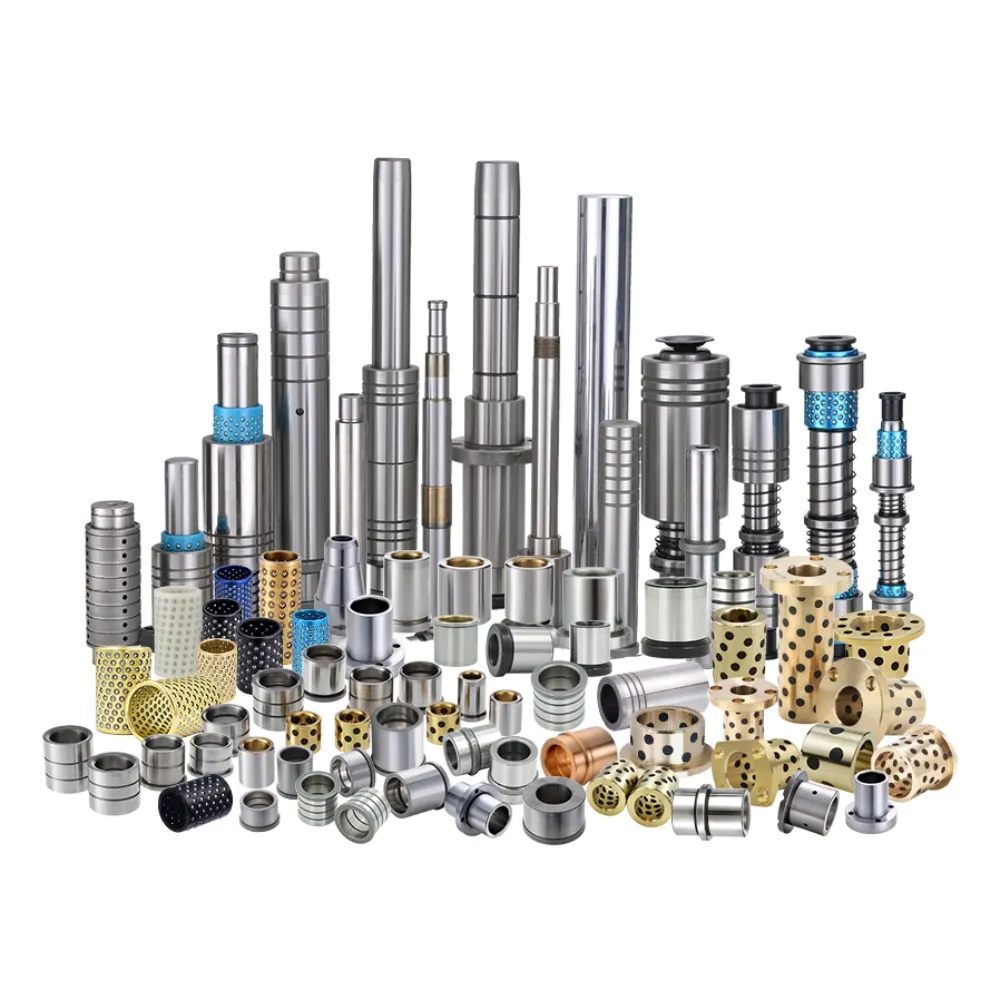

Custom Guide Bushing
Custom Guide Bushing is a key mold alignment component used to support precise guiding motion in die and mold systems. It helps maintain stable movement between parts under repeated operation. Designed for industrial use, it offers reliable structural support, consistent performance, and adaptability for different tooling configurations in high-demand manufacturing environments.
- Dimensional Precision: Ensures exact fit in mold systems
- Smooth Movement: Improves guiding efficiency during operation
- Load Resistance: Supports heavy stamping pressure
- Design Flexibility: Adapts to various mold structures
Product Description
Introduction
Custom Guide Bushing is a precision mold component designed to ensure accurate alignment and smooth guiding movement in stamping dies and injection mold systems. It works in combination with guide pillars to maintain stable mold operation, reduce friction, and improve positioning accuracy during continuous production. It is especially suitable for non-standard mold structures requiring customized dimensions and performance requirements.
Manufactured from high-quality materials such as hardened tool steel, bronze, and self-lubricating alloys, Custom Guide Bushing provides excellent wear resistance and dimensional stability. Through advanced CNC machining, internal grinding, and precision heat treatment, it achieves tight tolerances up to ±0.002 mm. The smooth inner surface ensures consistent guiding performance, while optimized material properties help extend service life under high-load and high-frequency working conditions.
Custom Guide Bushing is widely used in automotive mold systems, electronics manufacturing, progressive dies, household appliance tooling, and precision hardware production. It is essential for maintaining accurate die movement and stable production quality in industrial applications. Customization options include inner diameter, outer diameter, length, lubrication grooves, and material selection to meet specific engineering requirements. This flexibility makes it a reliable solution for OEM tooling, non-standard molds, and high-precision guiding systems across various manufacturing industries.
Specifications
| Item | Description |
|---|---|
| Product Name | Custom Guide Bushing |
| Material | Steel / Bronze / Self-lubricating alloy |
| Hardness | HRC 58–62 (steel type) |
| Tolerance | ±0.002 mm |
| Inner Diameter | Customized |
| Outer Diameter | Customized |
| Length | Customized |
| Surface Finish | Precision Ground / Polished |
| Lubrication Type | Oil groove / Self-lubricating optional |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Alignment Accuracy
Custom Guide Bushing ensures precise mold alignment with guide pillars, reducing deviation during operation and maintaining consistent positioning accuracy in high-speed stamping and injection molding systems.
Low Friction Performance
Optimized internal surface finishing reduces friction between moving components, enabling smoother guiding motion and minimizing wear during continuous mold operation cycles.
Strong Wear Resistance
Manufactured from hardened steel or bronze alloys, it provides excellent resistance to abrasion and deformation, ensuring long-lasting performance in demanding industrial environments.
Flexible Custom Design
Supports full customization of dimensions, materials, and lubrication structures, allowing adaptation to different mold systems and meeting specific engineering requirements.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
