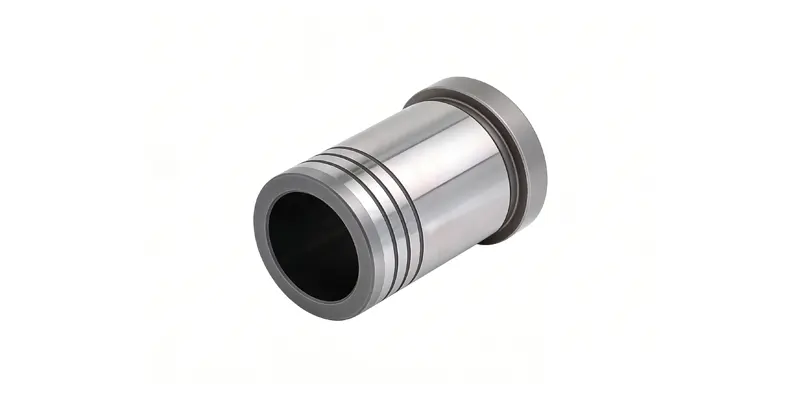

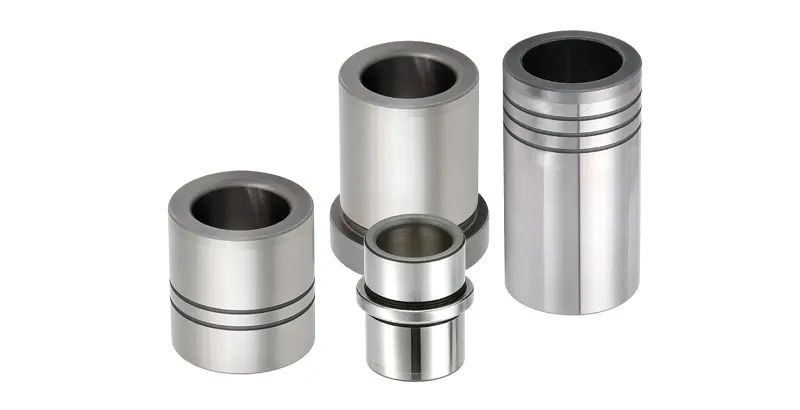

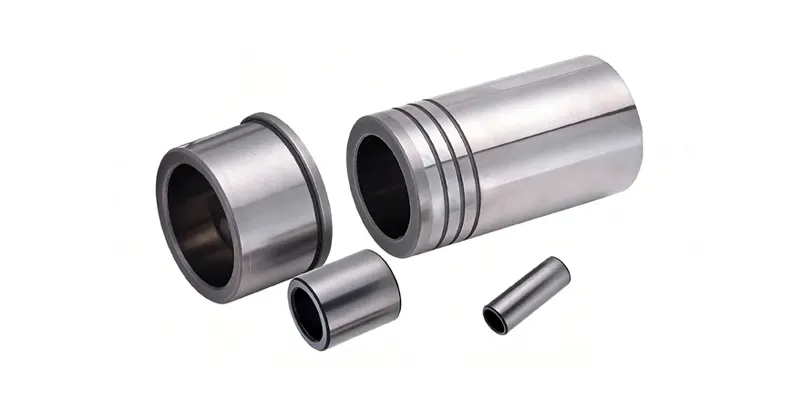

Mold Guide Bushing
A mold guide bushing is a precision alignment component used in injection molds, stamping dies, and tooling systems to ensure smooth and accurate movement between guide posts and mold plates. The mold guide bushing is manufactured with high-strength materials and precision machining processes to maintain tight tolerances, reduce friction, and provide stable guiding performance.
- Hardness: HRC 58-62
- Materials: SUJ2, S45C, 20CR
- Tolerance Accuracy: ±0.005mm
- Processing Technology: High-frequency/Carburizing heat treatment
- Customization: Standard sizes in stock, non-standard sizes can be customized
Product Description
Introduction
The mold guide bushing improves mold reliability and operational efficiency by reducing wear, enhancing alignment stability, and extending the service life of tooling systems. Compared with standard bushings, it offers better load distribution, smoother guiding motion, and reduced maintenance requirements during high-cycle production. This component is widely used in automotive mold manufacturing, electronics housing production, precision stamping, and plastic injection molding industries where accuracy, durability, and consistent output are essential.
Three Key Customization Aspects, Tailored to Your Needs
Ensure accurate movement and extend service life.
Precision Manufacturing, Excellent Quality
High Hardness
With strong stamping resistance, the guide bushings are made from SUJ2 material and undergo carburizing heat treatment, increasing hardness and enhancing wear resistance by 30%.
High Fit Precision
High-precision fit with guide posts,
The guide bushing and guide post feature high-precision sliding fit, with a fitting gap within ±0.005 on both sides. The tolerance is precise, offering excellent stamping resistance and wear resistance.
High Concentricity
High-precision fit with guide posts,
Concentricity within 0.01, with surface finish Ra 0.6-0.8. The high surface finish improves vertical alignment and enhances wear resistance.
High Precision
Precision tolerance of ±0.005mm, with internal and external diameter tolerance and runout within ±0.005mm. The precise tolerances ensure greater durability.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Customizable Solutions
We offer tailored products and services based on your specific requirements, ensuring a perfect fit for your needs.
High-Quality Materials
We use premium materials for all our products, ensuring durability, reliability, and long-term performance.
Fast Delivery
With a large inventory and efficient production processes, we provide quick delivery at competitive prices, helping you save both time and costs.
Application Range
The preferred choice across various industries.
