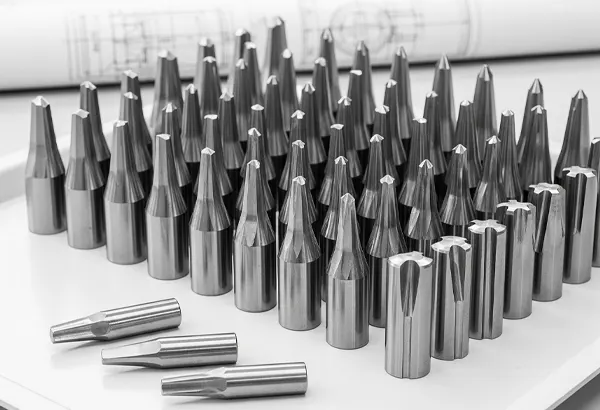

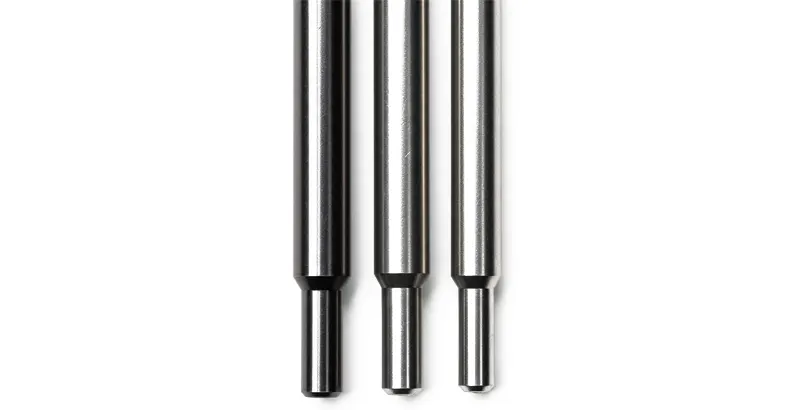

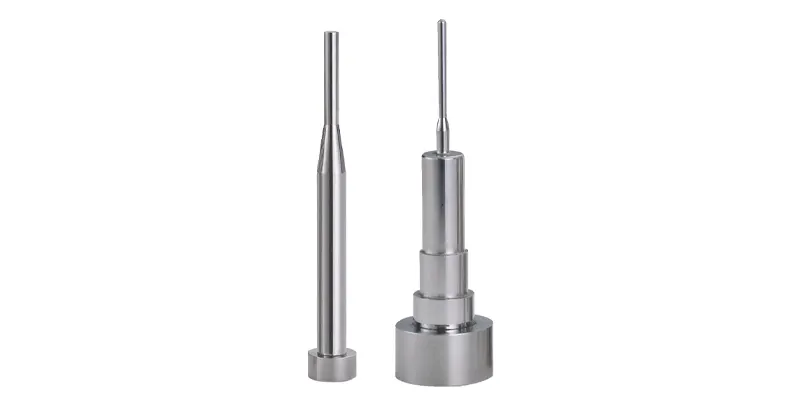

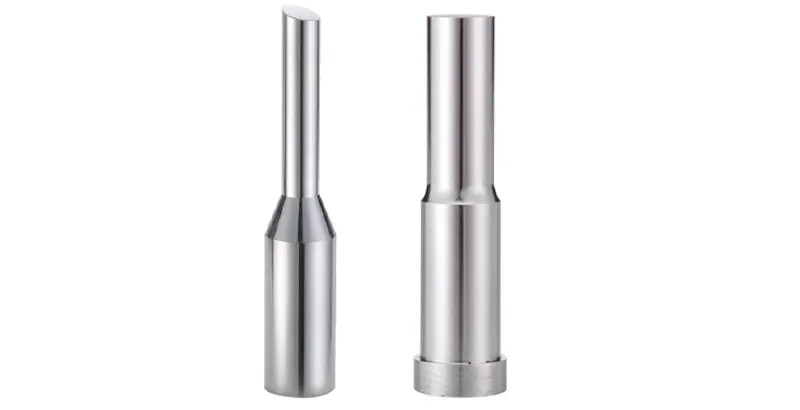

Precision Punch Pin
A precision punch pin is a high-accuracy tooling component designed for stamping, die, and mold applications requiring tight dimensional control and consistent forming performance. The precision punch pin is manufactured with advanced grinding and heat treatment processes to ensure excellent hardness, wear resistance, and long-term dimensional stability. The precision punch pin plays a critical role in achieving accurate punching results in high-speed industrial production environments.
- Specification: Custom Processing Based on Drawings or Samples
- Material: 8566
- Hardness: HRC60-62
- Features: High hardness, excellent toughness, impact and wear-resistant, 1 piece lasts as long as 5 pieces.
Product Description
Introduction
The precision punch pin enhances manufacturing efficiency by delivering stable performance, reduced tool wear, and consistent punching accuracy across high-volume production cycles. Compared with standard punch components, it offers improved durability, better alignment precision, and longer service life, helping reduce downtime and maintenance costs. This component is widely used in automotive stamping, electronics manufacturing, metal fabrication, and precision mold industries where reliability and accuracy directly impact product quality.
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Wear Resistance

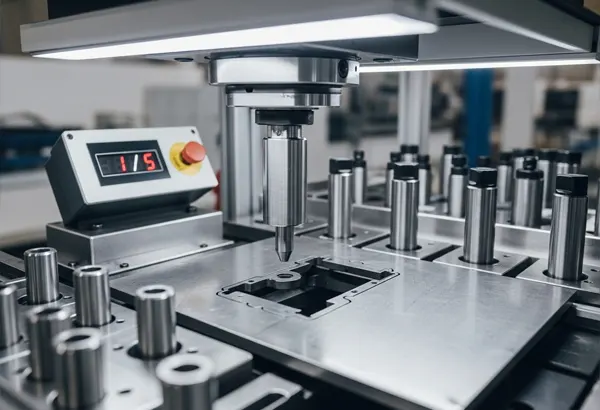

Made from high-quality steel and precision processed, offering superior wear resistance and durability. Ideal for mass hole processing and high-speed continuous stamping, enhancing production capacity.
High Hardness
Premium raw material processing with vacuum heat treatment + ultra-deep cold treatment, enhancing hardness by 35%.
High Precision

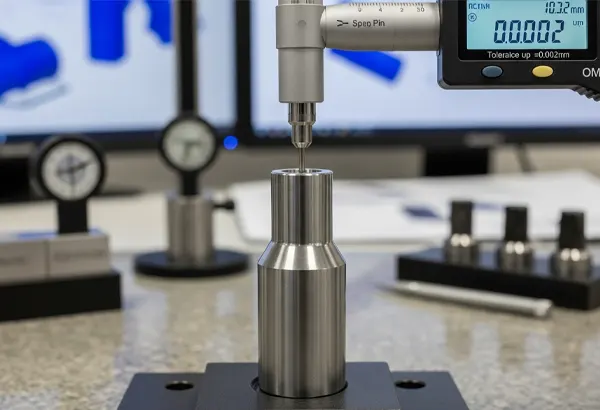

Centerless grinding and precision processing, with tolerance accuracy within ±0.002mm. Matched and formed with the mold in one step, saving mold setup costs.
High Quality
With extensive processing experience and industry expertise, our elite production team of master craftsmen uses precision manufacturing to create high-quality punching pins and punching heads.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Tolerance Precision Up to ±0.002mm
Selected authentic ingredients 1 piece is equivalent to 5 pieces
Batch processing and customization based on drawings, free sampling.
Application Range
The preferred choice across various industries.
