Precision CNC Machining for Robot Arm Links
Robot Arm Link CNC Machining
Precision CNC machining for robot arm links with lightweight pockets, reinforcing ribs, large joint bores, actuator interfaces, cable channels, and critical mounting datums. Supports 5-axis machining, tight GD&T, lightweight materials, and prototype-to-low-volume production.
- 5-Axis CNC for Lightweight Arm Links
- Precision Joint Bores & Axis Alignment
- Pocketed / Ribbed / Thin-Wall Structures
- 6061 / 7075 Aluminum / Titanium
- Prototype & Low-Volume Production
Product Description
Introduction

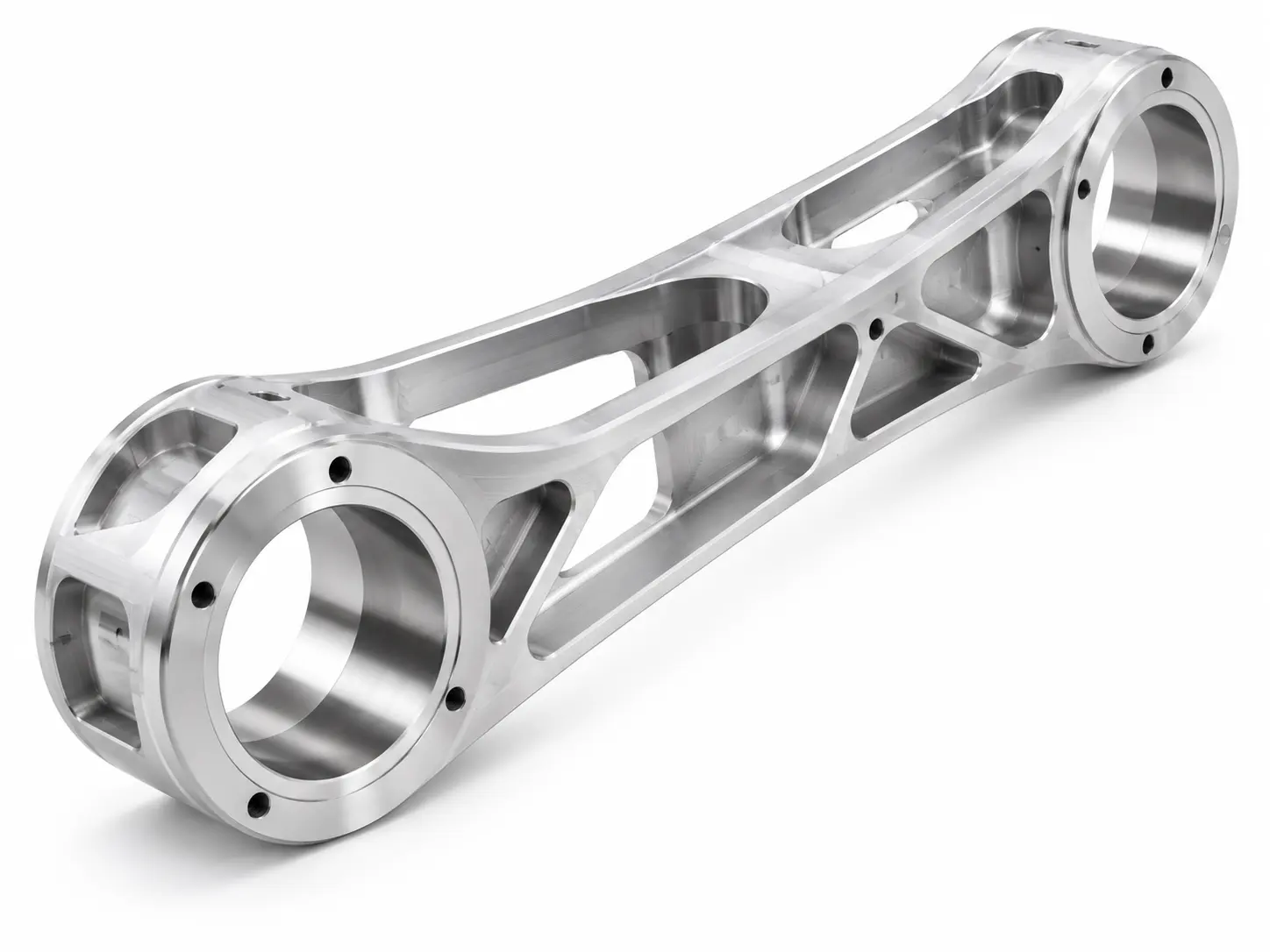

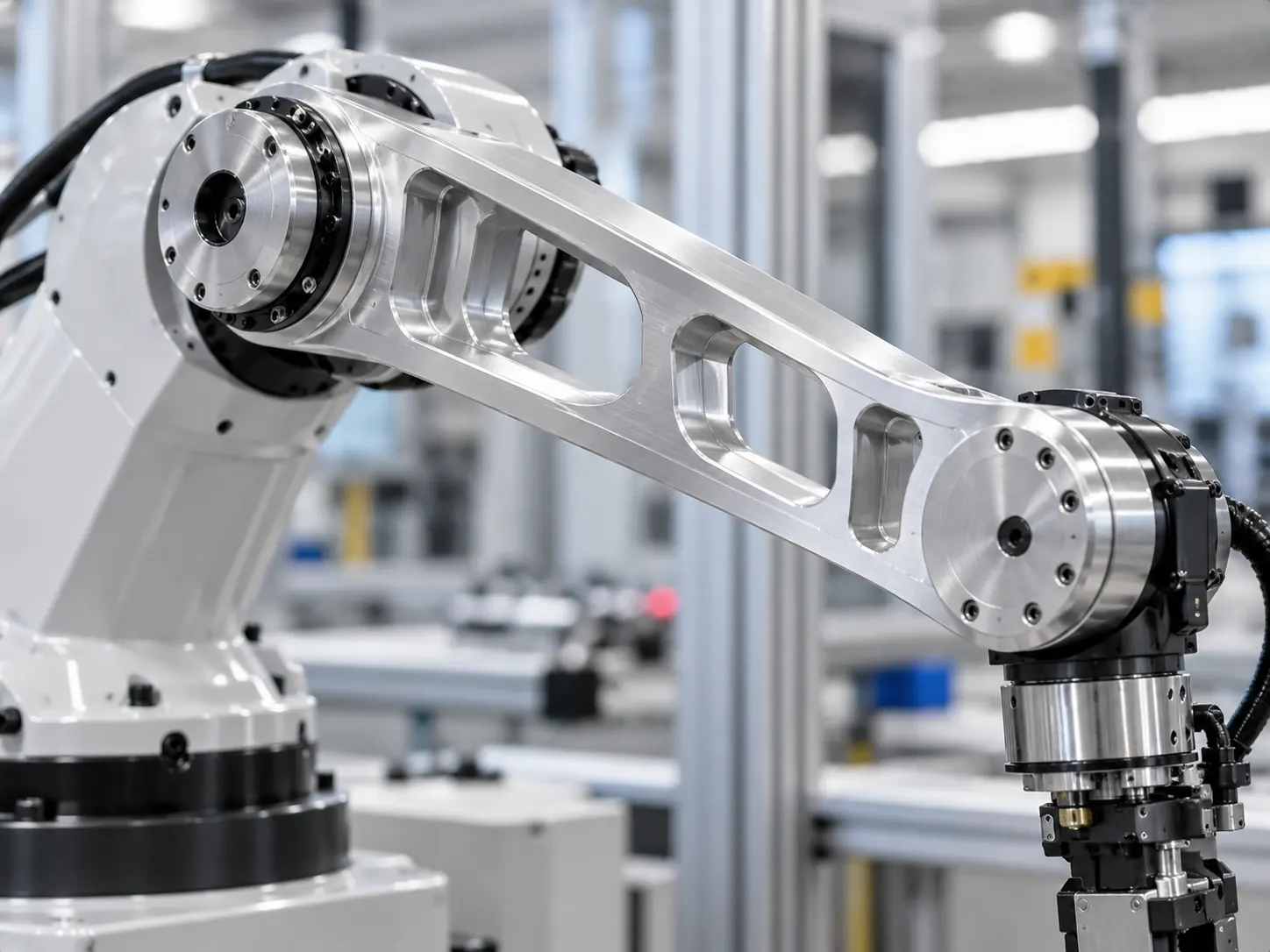

Robot Arm Link CNC Machining is used to manufacture lightweight structural links that connect joints, actuators, wrist modules, and other motion components within robotic systems. These parts require a careful balance of low mass, structural rigidity, dimensional stability, and accurate joint alignment to support fast and repeatable robotic motion.
Robot arm links often contain large joint bores, bearing or actuator interfaces, precision mounting faces, lightweight pockets, reinforcing ribs, cable-routing channels, thin-wall sections, and multi-directional mounting features. Small deviations in bore position, parallelism, flatness, or joint-to-joint alignment can affect assembly accuracy, motion repeatability, vibration, and load distribution across the robot arm.
Our CNC machining capabilities include 3-axis, 4-axis, and 5-axis milling, boring, drilling, threading, tapping, pocket machining, and precision finishing. Machining strategies, fixture design, datum control, material removal sequence, and inspection methods are selected according to link length, wall thickness, critical joint interfaces, GD&T requirements, and distortion risk.
Robot arm links can be machined from 6061 aluminum, 7075 aluminum, titanium, stainless steel, and other engineering materials, with anodizing, hard anodizing, passivation, polishing, coating, and other secondary processes available. Prototype, engineering sample, and low-volume production can be supported according to customer drawings.
Specifications
| Item | Specification |
|---|---|
| Product Name | Robot Arm Link CNC Machining |
| Material | 6061 Aluminum / 7075 Aluminum / Titanium / Stainless Steel / Custom |
| Manufacturing Process | Milling / Turning / Boring / Drilling / Threading / Tapping / Precision Finishing |
| Part Geometry | Long Structure / Thin-Wall / Ribbed / Pocketed / Hollow / Complex Multi-Surface |
| Tolerance | Up to ±0.005 mm / According to Drawing |

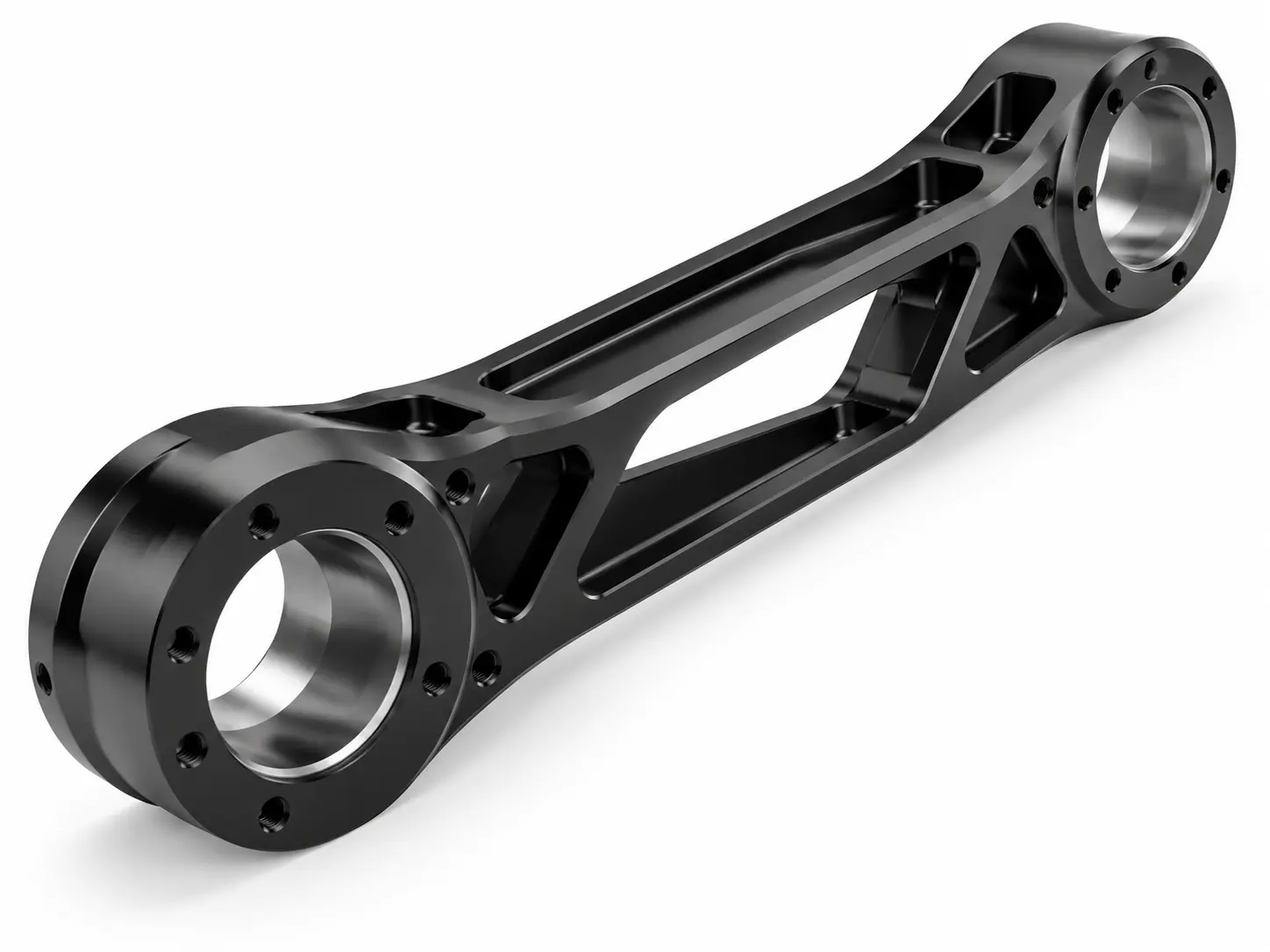

| Surface Finish | Anodizing / Hard Anodizing / Passivation / Plating / Coating |
| Color | Natural / Black / Material-Dependent |
| Production Volume | Prototype and Low-Volume Production |
| Inspection | CMM / Height Gauge / Micrometer / Caliper / Custom Inspection Plan |
| Documentation | Inspection Reports and Material Documents Upon Request |
| Applications | Humanoid Robots / Collaborative Robots / Industrial Robots / Robotic Actuators / Precision Motion Systems |
| Custom Service | OEM and ODM Supported |
Three Key Customization Aspects, Tailored to Your Needs
Customized CNC machining solutions for complex robotic components and precision assembly requirements.
Precision Manufacturing, Excellent Quality
Lightweight Structural Machining
Multi-axis CNC machining supports deep pockets, reinforcing ribs, internal cutouts, and thin-wall structures to reduce arm-link mass while maintaining the rigidity required for robotic motion.
Precision Joint Bore Machining
Large joint bores, bearing interfaces, and actuator mounting features are carefully machined to maintain accurate positioning between connected robotic joints.
Long-Part Distortion Control
Machining sequence, workholding, datum strategy, and material removal are planned to help control distortion in long, thin, or heavily pocketed components.

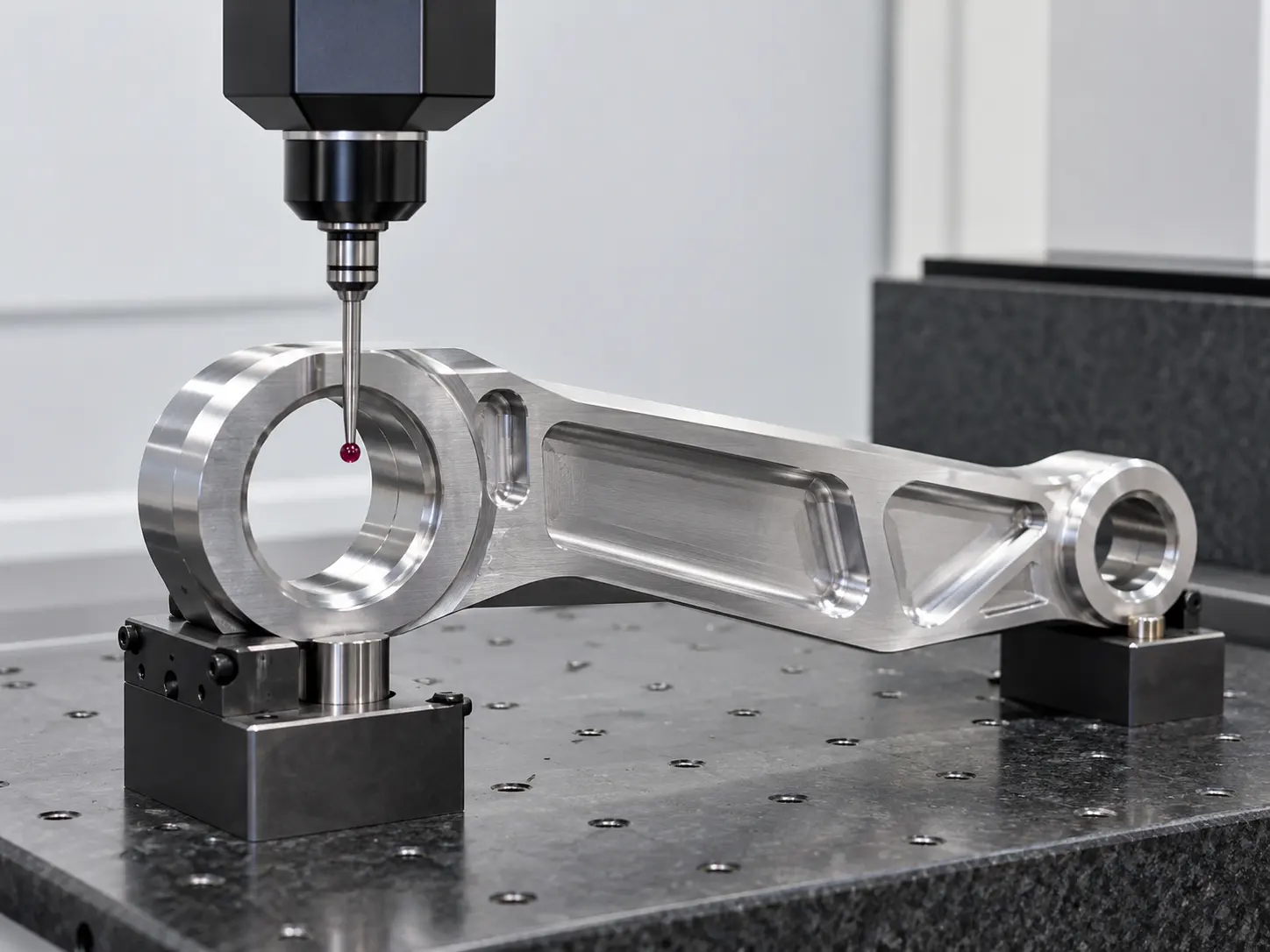

Multi-Surface Inspection
CMM, bore gauges, micrometers, roundness gauges, and other inspection equipment can verify bore size, position, concentricity, runout, flatness, and critical mounting dimensions.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a robot arm link?
A robot arm link is the structural member connecting two robotic joints or motion modules, transferring loads while maintaining the required geometry between rotational axes.
Q2: Why are robot arm links designed with pockets and ribs?
Pockets and cutouts reduce mass and rotational inertia, while ribs help retain structural stiffness in areas where loads are transferred between joints.
Q3:What materials are commonly used for robot arm links?
6061 and 7075 aluminum are commonly used for lightweight structures, while titanium or stainless steel may be selected where higher strength, rigidity, or environmental resistance is required.
Q4: Why is joint bore alignment important?
The relationship between joint bores and mounting interfaces influences robotic axis alignment, assembly accuracy, load distribution, and motion repeatability.
Q5: How do you control distortion in lightweight arm links?
Fixture strategy, machining sequence, balanced material removal, intermediate inspection, and appropriate finishing allowances can be used according to the geometry and material.
