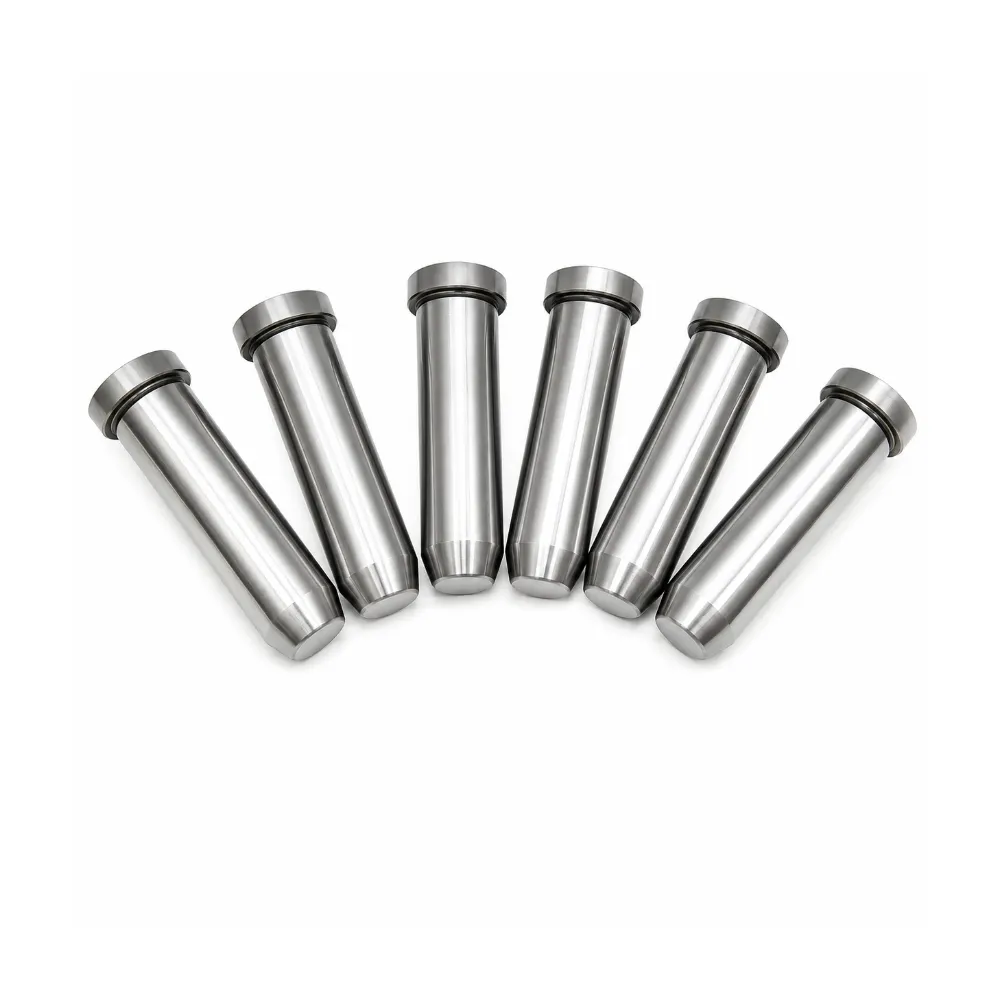

T Type Guide Pillar
T Type Guide Pillar is a precision mold component engineered for secure mounting and dependable guidance in tooling assemblies. Its distinctive T-shaped configuration enhances installation stability while supporting accurate movement between working components. Produced from high-quality hardened steel and processed through precision machining, it offers excellent structural strength and resistance to wear. The guide pillar is suitable for stamping dies, mold bases, and automated equipment where consistent alignment, reliable operation, and long-term durability are essential for production efficiency.
- Firm Installation: Secures components during continuous operation
- Position Accuracy: Improves alignment throughout assembly processes
- Shock Stability: Performs reliably under repeated vibration
- Reliable Service: Supports long-term mold system performance
Product Description
Introduction
T Type Guide Pillar is a specialized guiding component designed for precision mold assemblies, stamping dies, and industrial tooling systems. Featuring a distinctive T-shaped mounting structure, it provides secure installation, accurate positioning, and reliable guidance during repetitive manufacturing operations. The unique design enhances assembly stability and helps maintain precise alignment between moving mold components, contributing to improved production quality and operational efficiency.
Manufactured from high-quality bearing steel and alloy steel materials such as SUJ2 and SKD11, the T Type Guide Pillar undergoes precision grinding, heat treatment, and surface finishing processes. These advanced manufacturing techniques ensure excellent hardness, dimensional accuracy, wear resistance, and long-term durability. The polished surface minimizes friction during operation, promoting smooth movement and reducing wear between mating components in high-cycle industrial applications.
Designed for demanding production environments, the T Type Guide Pillar delivers dependable performance under continuous operation and heavy mechanical loads. It is widely used in stamping molds, injection molds, die sets, automated manufacturing equipment, and precision tooling systems. Available in multiple sizes and specifications, the product can be customized according to customer drawings and technical requirements. Its robust construction, stable guiding performance, and compatibility with international mold standards make it an ideal solution for manufacturers seeking enhanced tooling accuracy, reduced maintenance costs, and extended mold service life.
Specifications
| Item | Specification |
|---|---|
| Product Name | T Type Guide Pillar |
| Material | SUJ2 / SKD11 / SCM440 |
| Hardness | HRC 58–62 |
| Surface Treatment | Polishing / Hard Chrome Plating |
| Precision Grade | Precision Ground |
| Surface Roughness | Ra 0.2 – Ra 0.8 |
| Diameter Range | 5mm – 80mm |
| Length Range | 20mm – 800mm |
| Straightness | ≤0.01mm/100mm |
| Tolerance | Custom Available |
| Mounting Type | T-Type Structure |
| Custom Service | OEM & ODM Supported |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Secure T-Mount Design
The T-shaped mounting structure provides firm attachment within tooling systems, helping prevent displacement and ensuring reliable positioning during demanding production operations.
Enhanced Assembly Accuracy
Designed for precise installation, it improves component positioning accuracy and supports consistent assembly results across various mold and tooling configurations.
Vibration Resistance Performance
Maintains stable operation under vibration and repeated mechanical movement, helping improve equipment reliability in high-speed manufacturing environments.
Extended Mold Reliability
Supports dependable guiding performance throughout long production cycles, reducing operational interruptions and contributing to more reliable mold system functionality.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a T Type Guide Pillar used for?
A T Type Guide Pillar is used to provide accurate guidance and secure positioning in mold assemblies, stamping dies, and industrial tooling systems.
Q2: What are the advantages of the T-shaped design?
The T-shaped structure offers stronger mounting stability, improved positioning accuracy, and enhanced resistance to movement during operation.
Q3: Which materials are commonly available?
Common materials include SUJ2, SKD11, and SCM440, providing excellent hardness, wear resistance, and long service life.
Q4: Can T Type Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, materials, and surface treatments can be produced according to customer drawings and technical specifications.
Q5: What industries use T Type Guide Pillars?
They are widely used in stamping molds, injection molds, automotive tooling, precision die systems, industrial automation equipment, and metal forming machinery.
