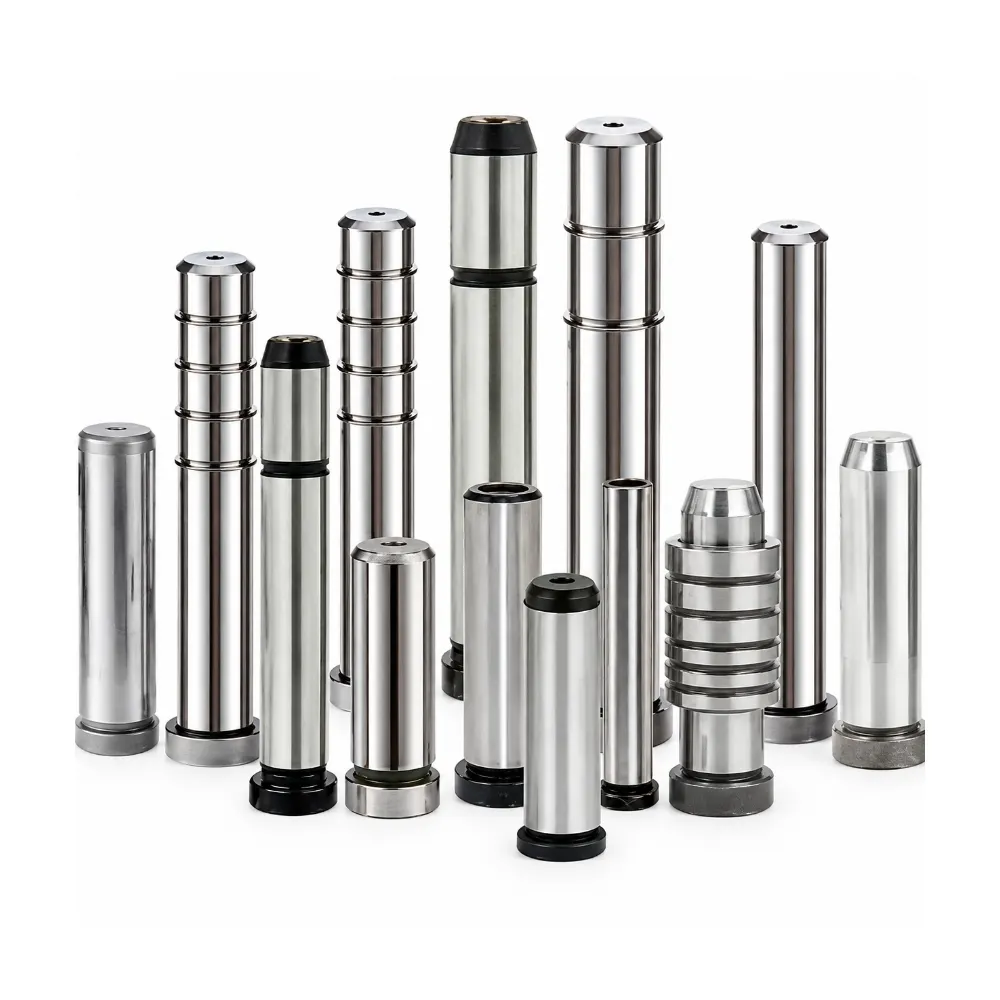

Headed Guide Pillar
Headed guide pillar is a structural alignment component used in mold systems to support accurate positioning and stable movement between die plates. Its integrated head design enhances installation strength and improves overall mechanical reliability during continuous operation. Manufactured from hardened alloy steel with precision finishing, it delivers strong load-bearing capacity, reduced friction, and long-term durability. The component is widely applied in industrial tooling environments requiring consistent alignment, operational stability, and efficient production performance.
- Secure Fit: Prevents movement during mold operation
- Stress Balance: Reduces uneven force on components
- Fast Setup: Simplifies installation and alignment process
- Steady Guidance: Ensures stable mold movement accuracy
Product Description
Introduction
Headed Guide Pillar is a precision mold guiding component designed with an integrated head structure to improve positioning stability and assembly accuracy in mold systems. It is widely used to ensure smooth alignment between mold plates during stamping, injection molding, and die-casting processes, reducing misalignment and improving production efficiency.
Manufactured from high-strength alloy steel such as SUJ2 or SKD11, the headed guide pillar undergoes advanced heat treatment and precision grinding. This process ensures excellent hardness, dimensional stability, and superior wear resistance. The headed design increases mounting strength and enhances load distribution, making it suitable for high-impact and high-cycle industrial environments.
This component is commonly used in mold base systems where reliable guidance and structural stability are essential. It is compatible with international mold standards and supports customized production based on customer drawings. With its robust structure and high-precision finish, it plays a key role in improving mold life, reducing maintenance costs, and ensuring consistent manufacturing quality.
Specifications
| Item | Description |
|---|---|
| Product Name | Headed Guide Pillar |
| Material | SUJ2 / SKD11 / SCM440 / Customized |
| Hardness | HRC 58–62 (heat treated) |
| Surface Treatment | Polished / Hard chrome plated / Anti-rust coating |
| Precision Grade | High precision grinding (±0.005mm optional) |
| Straightness | ≤ 0.01mm / 100mm |
| Surface Roughness | Ra 0.2 – Ra 0.8 |
| Diameter Range | 5mm – 60mm |
| Length Range | 20mm – 600mm |
| Customization | OEM / ODM supported based on drawings |

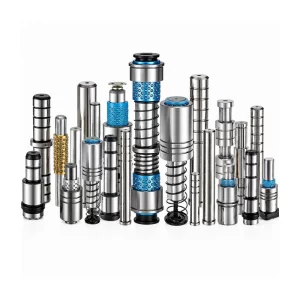

Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Strong Mounting Stability
Headed structure provides secure installation support, preventing displacement during operation and ensuring stable fixation within mold base systems under continuous industrial production conditions.
Improved Load Distribution
The integrated head design distributes mechanical force evenly across the component, reducing stress concentration and enhancing overall durability in high-pressure stamping and molding applications.
Enhanced Assembly Efficiency
Designed for easier positioning and installation, it simplifies mold assembly processes, reduces setup time, and improves operational efficiency in manufacturing environments.
Consistent Alignment Performance
Maintains precise guiding accuracy during repeated mold cycles, ensuring reliable alignment between components and supporting stable high-volume production without performance deviation.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a headed guide pillar used for?
It is used to guide and align mold components in stamping, injection molding, and die-casting systems, ensuring stable and precise movement during production.
Q2: Why does it have a head design?
The head design improves mounting strength, enhances stability during operation, and helps distribute load more evenly across the mold structure.
Q3: What materials are available for this product?
Common materials include SUJ2, SKD11, and SCM440 hardened steel, chosen for high strength, wear resistance, and durability in industrial use.
Q4: Can headed guide pillars be customized?
Yes, diameter, length, tolerance, and surface treatment can all be customized according to customer drawings and specific mold requirements.
Q5: What surface treatments are offered?
Options include polishing, hard chrome plating, and anti-corrosion coatings to improve wear resistance, reduce friction, and extend service life.
