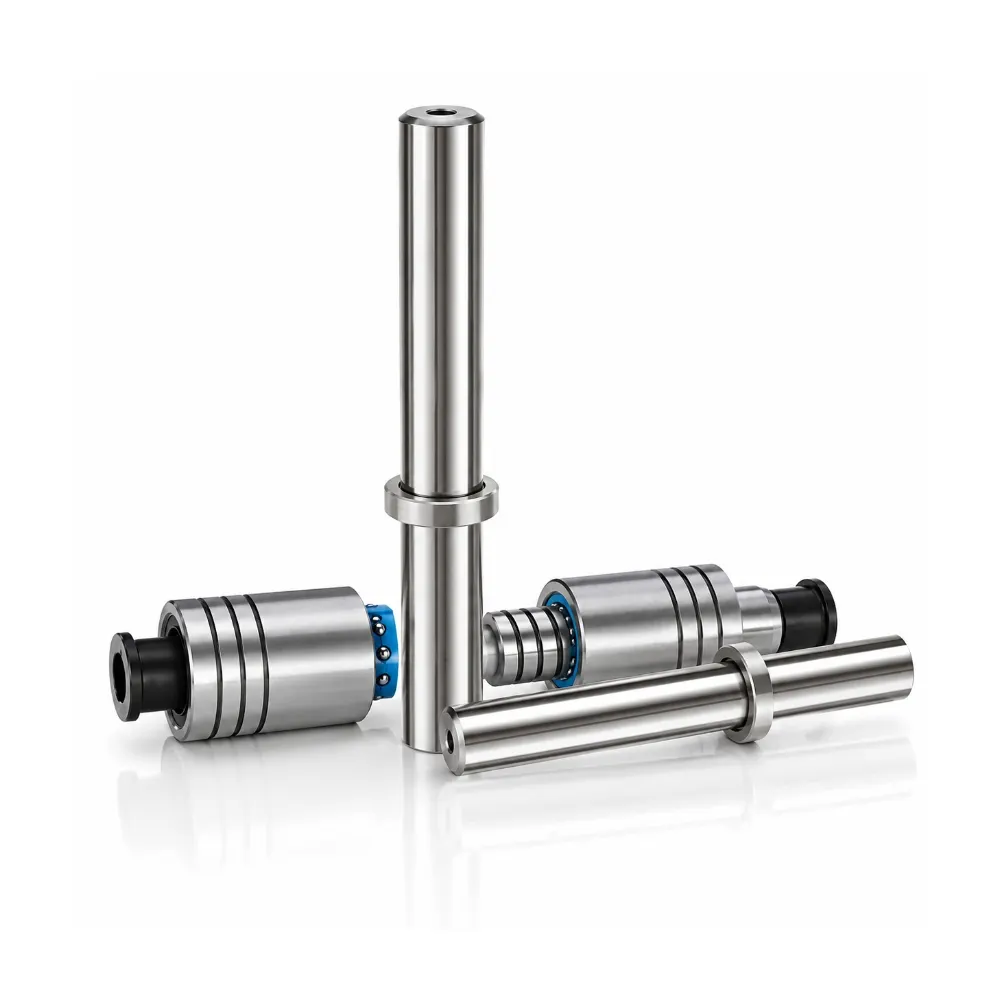

Rolling Guide Pillar
Rolling Guide Pillar is developed for industrial guidance systems that require low-resistance movement and dependable alignment performance. Its rolling-action design allows components to travel smoothly while maintaining precise positioning throughout operation. Produced from high-quality hardened bearing steel and finished with advanced machining processes, it offers exceptional strength, wear resistance, and dimensional accuracy. Commonly used in molds, tooling assemblies, automated machinery, and precision manufacturing equipment, this guide pillar helps optimize motion efficiency and long-term operational stability.
- Ensures Consistent Rolling Movement: Maintains smooth guidance throughout operation.
- Improves Mechanical Positioning Accuracy: Supports precise tracking of components.
- Handles Demanding Industrial Workloads: Performs reliably under continuous usage.
- Increases Overall Equipment Stability: Promotes balanced and controlled motion.
Product Description
Introduction
Rolling Guide Pillar is a precision guiding component designed for molds, dies, mold bases, and industrial machinery requiring smooth rolling movement and accurate alignment. By utilizing a rolling guidance mechanism, it significantly reduces friction between moving parts, providing stable motion control and improved operational efficiency. This advanced guiding structure helps maintain precise positioning while minimizing wear during continuous production processes.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Rolling Guide Pillar undergoes precision machining, heat treatment, grinding, and polishing processes. These advanced manufacturing techniques ensure outstanding hardness, dimensional stability, wear resistance, and fatigue strength. The precision-finished surface and rolling guidance design work together to deliver smooth movement, accurate tracking, and long-term reliability in demanding industrial environments.
Rolling Guide Pillars are widely used in injection molds, stamping dies, mold base systems, progressive tooling, automation equipment, and precision mechanical assemblies. Available in multiple diameters, lengths, and precision grades, they can meet both standard industrial requirements and customized engineering applications. OEM and ODM services are available according to customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Rolling Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø120 mm |
| Length Range | 80 mm – 1800 mm |
| Guiding Type | Rolling Guidance |
| Straightness | ≤0.003 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Standard / Custom Mounting |
| Precision Grade | High Precision |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
