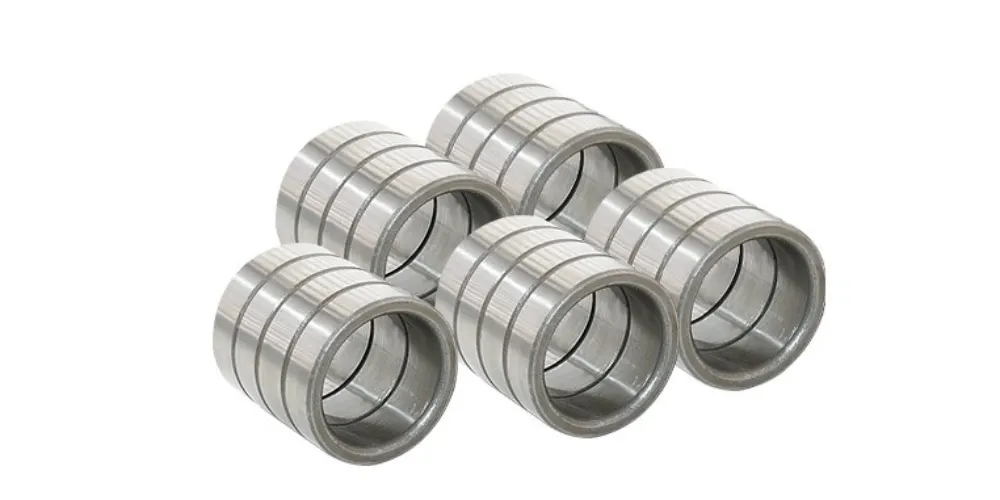

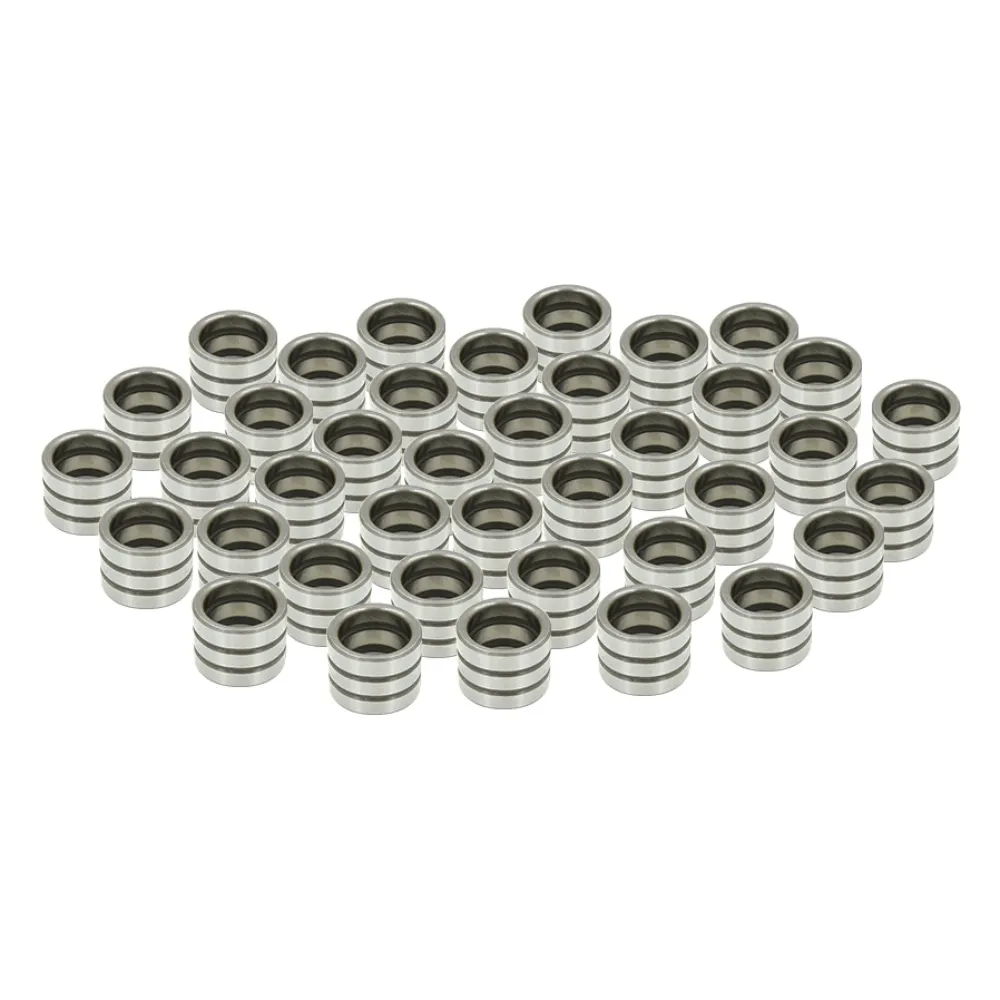

Miniature Guide Bushing
Miniature Guide Bushing is a compact precision part used to support accurate linear guidance in small mechanical assemblies. It helps maintain controlled movement and stable alignment in confined structures. Designed for micro applications, it ensures dependable operation, consistent positioning, and efficient performance in electronic equipment, medical devices, and other high-precision industrial systems.
- Compact Integration: Fits tight mechanical layouts
- High Repeatability: Ensures consistent positioning accuracy
- Energy Saving: Reduces motion resistance
- Operational Stability: Maintains smooth continuous use
Product Description
Introduction
Miniature Guide Bushing is a precision-engineered micro guiding component designed for compact mold systems and high-accuracy mechanical assemblies. It ensures stable linear guidance for guide pillars, helping maintain precise alignment in extremely limited installation spaces. This improves motion control accuracy and supports consistent performance in micro-scale manufacturing environments where precision and stability are essential.
Manufactured from high-quality bearing steel or hardened tool steel, Miniature Guide Bushing provides excellent wear resistance, structural rigidity, and long service life. Advanced CNC micro-machining, precision internal grinding, and heat treatment processes ensure tight dimensional control at micron-level tolerances. The finely polished inner surface actively reduces friction, enabling smooth sliding motion even under continuous high-speed operation while maintaining stable guiding performance and minimizing wear over time.
Miniature Guide Bushing is widely applied in electronics manufacturing, semiconductor equipment, medical devices, optical instruments, robotics, and precision automation systems. It supports both standard and customized designs, offering flexible options in micro inner diameter, outer diameter, length, and lubrication configurations. This adaptability allows it to meet diverse engineering requirements and ensures reliable operation in advanced industrial environments where compact structure, high precision, and long-term stability are critical.
Specifications
| Item | Description |
|---|---|
| Product Name | Miniature Guide Bushing |
| Material | Bearing Steel / Hardened Tool Steel |
| Hardness | HRC 58–62 |
| Tolerance | High precision (±0.001–0.002 mm) |
| Inner Diameter | Micro size / Customized |
| Outer Diameter | Micro size / Customized |
| Length | Customized |
| Surface Finish | Precision Ground / Polished |
| Lubrication | Oil / Grease optional |
| Manufacturing Process | CNC Micro Machining + Grinding + Heat Treatment |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Ultra Compact Structure
Miniature Guide Bushing is designed for extremely limited installation spaces, enabling precise alignment and stable linear motion in compact mechanical and mold systems without compromising structural reliability or performance consistency.
High Precision Guidance
It ensures accurate positioning of guide components, reducing deviation and improving repeatability in micro-scale motion systems used in electronics, medical devices, and precision automation equipment.
Low Friction Performance
The finely finished inner surface minimizes contact resistance, allowing smooth and efficient linear movement while reducing energy loss and improving operational stability during continuous motion cycles.
Long Service Reliability
Manufactured from hardened steel with advanced processing, it delivers strong wear resistance and maintains consistent performance over extended periods in demanding industrial environments.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Miniature Guide Bushing used for?
It is used in micro-scale mechanical systems to provide precise linear guidance and stable alignment in compact assemblies.
2. How does a Miniature Guide Bushing work?
It supports controlled sliding or rolling motion between guide components, ensuring accurate positioning and smooth movement.
3. What materials are used for Miniature Guide Bushing?
Common materials include hardened steel, bearing steel, and other high-strength wear-resistant alloys.
4. Where is Miniature Guide Bushing commonly applied?
It is widely used in electronics, medical devices, robotics, semiconductor equipment, and precision automation systems.
5. Can Miniature Guide Bushing be customized?
Yes, it can be customized in size, tolerance, lubrication type, and surface finish based on application requirements.
