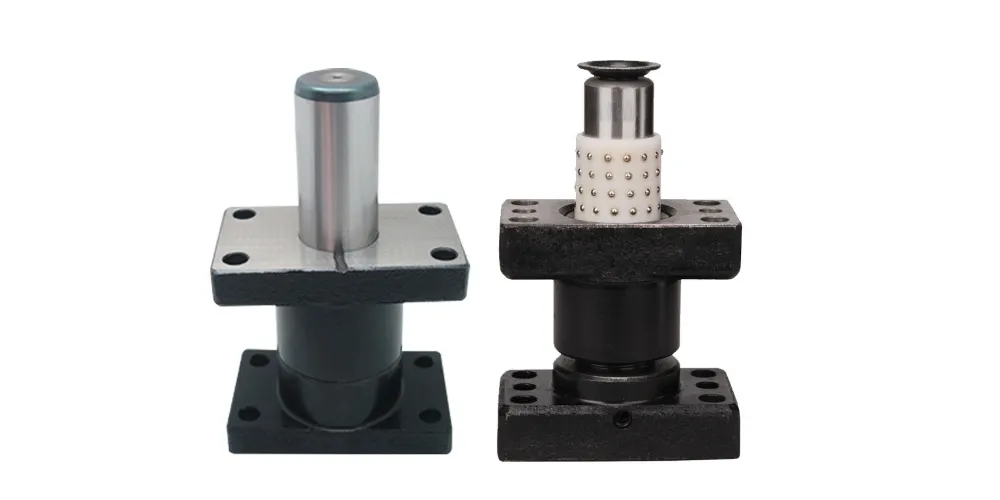

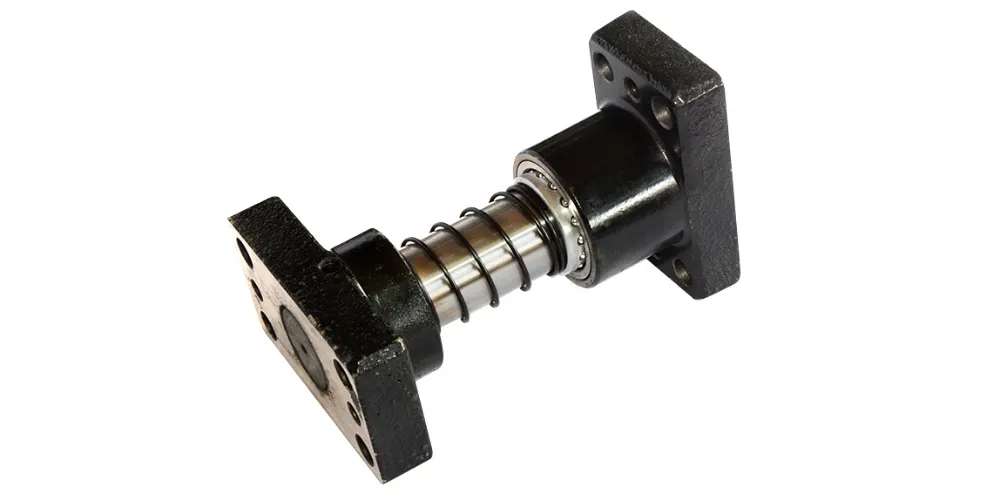

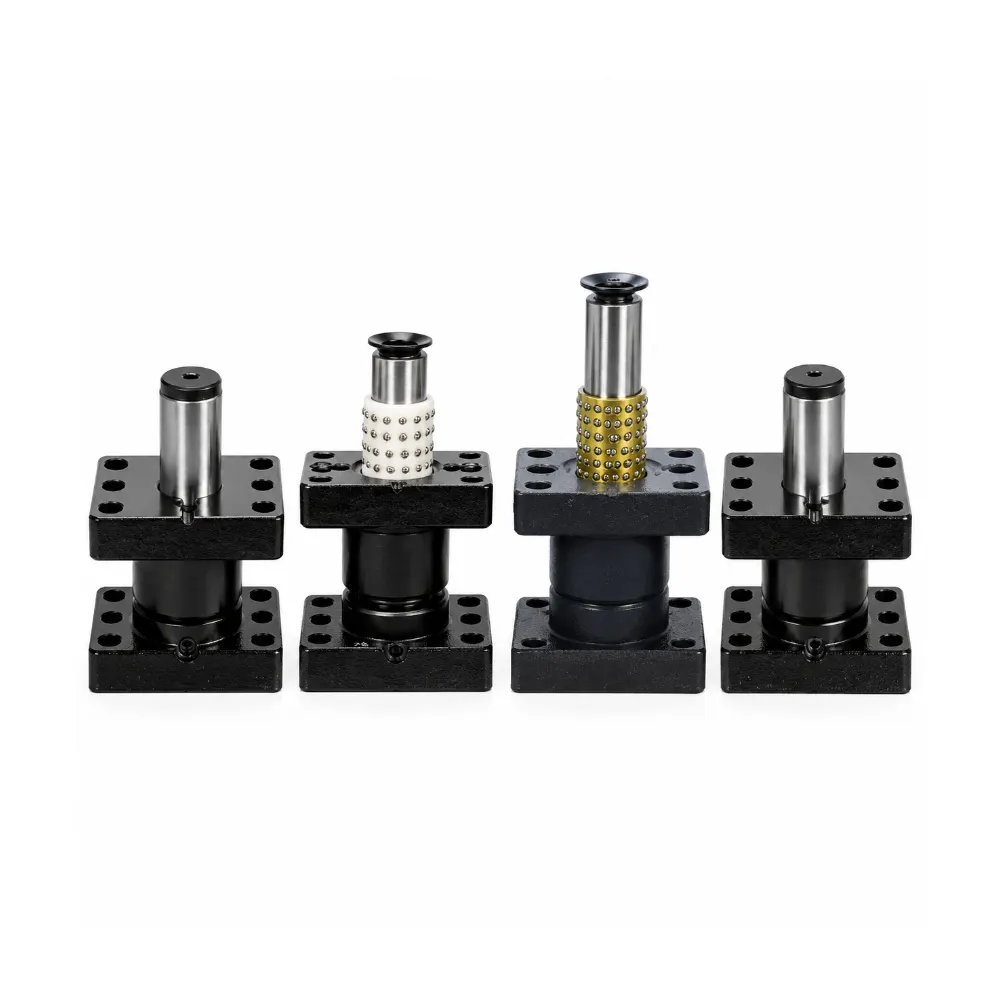

Self-Contained Guide Pillar
Self-Contained Guide Pillar is engineered for precision mold systems requiring reliable alignment and stable guiding performance under continuous production conditions. It features a robust construction that maintains structural accuracy even under repeated load cycles. Manufactured from hardened bearing steel with fine grinding finishing, it offers strong resistance to wear, deformation, and fatigue. The smooth guiding surface ensures consistent motion control and improved assembly precision. It is widely applied in molds, dies, and automated industrial equipment for stable long-term operation.
- Improves Positioning Accuracy: Enhances precise mold alignment control.
- Reduces Assembly Deviation Risk: Minimizes installation and fitting errors.
- Ensures Smooth Guiding Motion: Provides stable low-resistance operation.
- Extends Mold Service Life: Reduces wear on tooling components.
Product Description
Introduction
Self-Contained Guide Pillar is a precision mold guiding component designed to provide stable alignment, accurate positioning, and smooth movement in injection molds, stamping dies, and industrial tooling systems. Its independent structural design ensures reliable guidance between mold components, helping improve assembly accuracy, reduce friction, and enhance overall production stability. It is widely used in precision manufacturing environments where consistent performance is essential.
Manufactured from high-quality bearing steel such as SUJ2 or GCr15, the Independent Guide Pillar undergoes precision turning, heat treatment, cylindrical grinding, and polishing processes. These advanced manufacturing techniques ensure excellent hardness, wear resistance, dimensional stability, and fatigue strength. The precision-ground surface provides smooth guiding action and maintains accurate alignment under continuous high-load and high-cycle operating conditions.
Self-Contained Guide Pillar are widely used in injection molds, progressive dies, stamping tooling systems, automotive molds, electronic component molds, precision mold bases, and automation equipment. Available in various diameters, lengths, and tolerance grades, they can meet both standard industrial requirements and customized engineering designs. OEM and ODM services are available according to customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Self-Contained Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø120 mm |
| Length Range | 80 mm – 1800 mm |
| Guiding Type | Independent Mold Guidance |
| Straightness | ≤0.003 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | High Precision / Ultra Precision |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Enhances Mold Positioning Control
Provides stable and accurate guiding performance that improves mold positioning consistency during repeated opening and closing operations.
Reduces Assembly Misalignment Risk
Helps maintain precise component alignment, minimizing installation deviation and improving overall mold assembly accuracy.
Improves Operational Smoothness
Ensures low-resistance guiding movement, supporting smoother operation and reducing mechanical interference during production cycles.
Extends Tooling Service Life
Reduces wear on key mold components, helping extend overall tooling lifespan and reduce maintenance frequency.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Self-Contained Guide Pillar?
A Self-Contained Guide Pillar is a precision mold guiding component with an integrated structure designed to provide stable alignment and smooth motion in tooling systems.
What is the function of a Self-Contained Guide Pillar?
Its function is to ensure accurate mold positioning, reduce misalignment, and maintain consistent guiding performance during repeated production cycles.
What materials are used for Self-Contained Guide Pillars?
They are typically made from SUJ2 or GCr15 bearing steel, offering high hardness, excellent wear resistance, and long service life.
Can Self-Contained Guide Pillars be customized?
Yes. They can be customized in diameter, length, tolerance, surface finish, and mounting configuration according to customer requirements.
Where are Self-Contained Guide Pillars commonly used?
They are widely used in injection molds, stamping dies, progressive tooling systems, automotive molds, electronic component molds, and precision industrial equipment.
