Independent Guide Pillar
An independent guide pillar is a precision mold component designed to provide stable, accurate, and self-contained guiding support in injection molds and stamping die systems. The independent guide pillar operates separately from integrated guide assemblies, offering flexible installation and enhanced alignment performance in complex tooling structures.
- Model: TRP
- Common Material: SUJ2
- Surface Hardness: HRC58-62
- Precision: Tolerance accuracy controlled within ±0.005mm
- Heat Treatment: High-frequency/Carburizing heat treatment
Non-standard sizes can be customized based on drawings or samples.
Product Description
Introduction
The independent guide pillar improves mold reliability and operational efficiency by ensuring precise alignment, reducing mechanical wear, and maintaining stable guiding performance during high-cycle production. Compared with integrated guide systems, it provides greater design flexibility, easier maintenance, and improved replacement efficiency in tooling setups. This component is widely used in injection molding, precision stamping, automotive tooling, and industrial die systems where accuracy, durability, and consistent performance are essential for high-quality manufacturing output.
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Hardness
Strong stamping resistance. The guide bushing is made from SUJ2 material and undergoes carburizing heat treatment, offering high hardness and a 30% improvement in wear resistance.

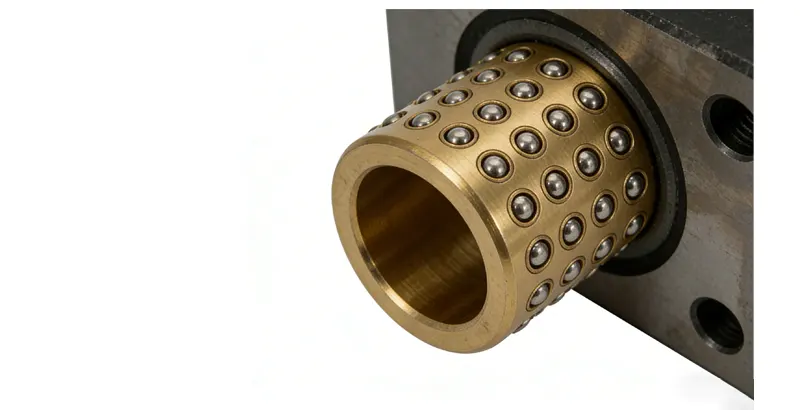

Ball Bushing with Multiple Material Options
Available in various materials to meet different needs. The rolling fit replaces sliding, reducing friction and providing greater durability.
High Parallelism
Parallelism within 0.02/100, with precise tolerance for seamless one-time matching and strong interchangeability with molds.
Good Fit Clearance with Interference Fit
Interference fit of 0.015~0.020 negative clearance with rolling fit, ensuring a longer service life.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
