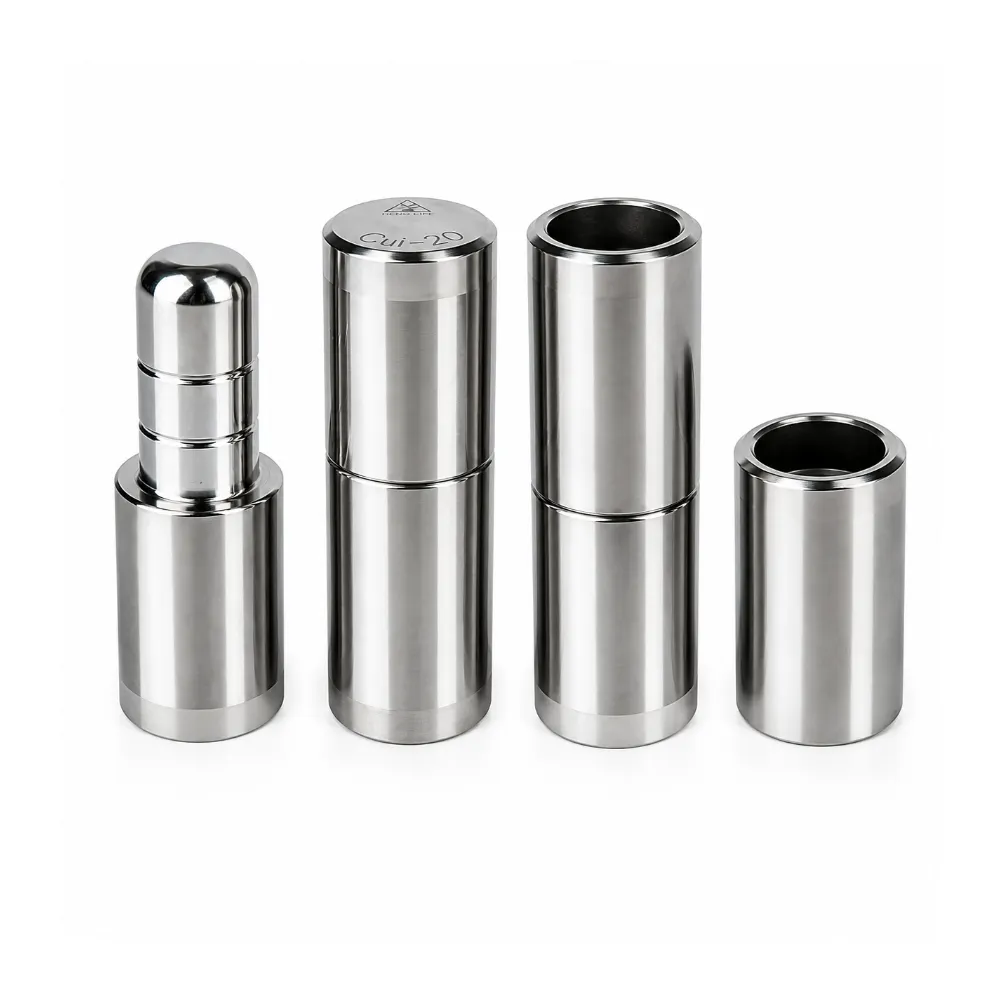

Silicone Mold Guide Pillar
Silicone Mold Guide Pillar is engineered for silicone and rubber molding applications that require precise mold alignment and dependable operational stability. Manufactured from high-grade hardened bearing steel, it delivers excellent strength, wear resistance, and dimensional accuracy. The finely ground guiding surface promotes smooth mold movement while minimizing alignment deviation during production. Commonly used in LSR molds, medical silicone tooling, consumer product molds, and industrial rubber molds, this component helps improve molding consistency and supports efficient long-term manufacturing performance.
- Improves Silicone Molding Accuracy: Supports precise mold positioning throughout production.
- Handles Frequent Operating Cycles: Maintains reliable guidance during repeated use.
- Supports Sensitive Product Applications: Suitable for demanding silicone manufacturing sectors.
- Extends Overall Mold Service Life: Reduces stress on critical tooling components.
Product Description
Introduction
Silicone Mold Guide Pillar is a precision guiding component specifically designed for silicone molds, LSR (Liquid Silicone Rubber) molds, rubber molds, and compression molding systems. It plays a critical role in maintaining accurate alignment between mold halves during opening and closing operations. Reliable guidance helps improve molding precision, reduce wear on mold components, and ensure consistent production quality for silicone and rubber products.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Silicone Mold Guide Pillar undergoes precision turning, heat treatment, cylindrical grinding, and polishing processes. These advanced manufacturing techniques provide excellent hardness, dimensional stability, wear resistance, and fatigue strength. The precision-ground surface ensures smooth interaction with guide bushings while maintaining long-term guiding accuracy under continuous molding operations.
Silicone Mold Guide Pillars are widely used in liquid silicone rubber molds, medical silicone product molds, baby product molds, kitchenware molds, industrial sealing component molds, and precision rubber tooling systems. Available in various diameters, lengths, and precision grades, they can satisfy both standard mold designs and custom engineering requirements. OEM and ODM services are available according to customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Silicone Mold Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø120 mm |
| Length Range | 80 mm – 1500 mm |
| Guiding Type | Mold Alignment Guidance |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | High Precision |
| Operating Condition | Continuous Molding Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Optimized For Silicone Molding Precision
Designed to maintain accurate mold registration, helping achieve consistent dimensions and high-quality surface finishes in silicone product manufacturing.
Performs Reliably Under Repeated Cycles
Maintains stable guiding performance through frequent mold opening and closing operations common in silicone and rubber processing.
Supports Sensitive Product Manufacturing
Suitable for molds producing medical, baby-care, and food-contact silicone products where precision and consistency are essential.
Improves Mold Assembly Longevity
Accurate guidance reduces uneven loading on mold components, helping extend tooling life and lower maintenance requirements over time.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Silicone Mold Guide Pillar?
A Silicone Mold Guide Pillar is a precision guiding component used in silicone and rubber molds to ensure accurate alignment and smooth mold operation.
What is the function of a Silicone Mold Guide Pillar?
Its primary function is to maintain mold positioning accuracy, reduce alignment deviation, improve molding consistency, and support stable production processes.
What materials are commonly used for Silicone Mold Guide Pillars?
Silicone Mold Guide Pillars are typically manufactured from SUJ2 or GCr15 bearing steel, providing high hardness, excellent wear resistance, and long service life.
Can Silicone Mold Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, mounting configurations, surface treatments, and special specifications can be produced according to customer requirements.
Where are Silicone Mold Guide Pillars commonly used?
They are widely used in LSR molds, silicone injection molds, medical silicone product molds, baby-care product molds, silicone kitchenware molds, and industrial rubber molding systems.
