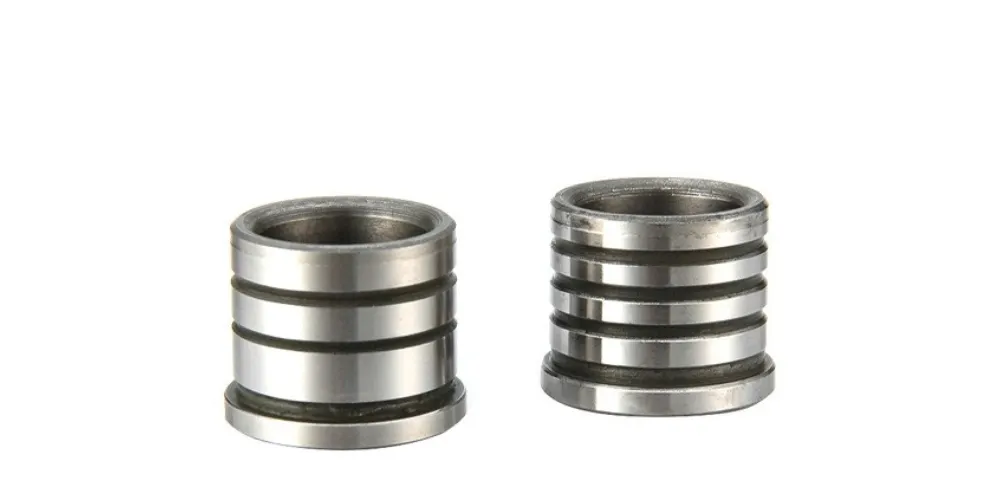

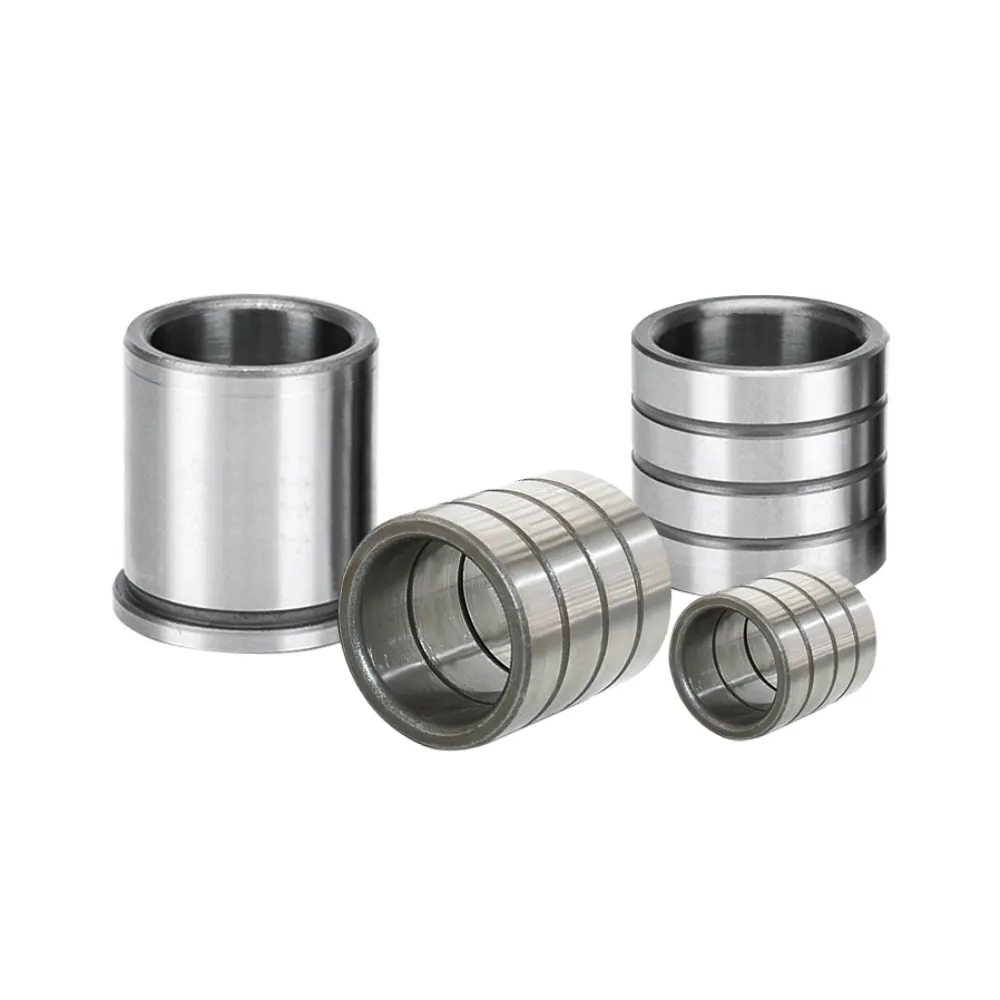

Stripper Guide Sleeve
Stripper Guide Sleeve is a key die component used to support accurate movement and positioning of stripper plates in stamping systems. It helps guide motion paths and maintain operational consistency during forming processes. Designed for industrial applications, it delivers stable performance, supports efficient production cycles, and ensures reliable functionality in precision metal stamping environments.
- Dimensional Stability: Maintains consistent geometry
- Load Distribution: Balances mechanical stress
- Operational Smoothness: Improves motion flow
- Extended Service Life: Reduces replacement frequency
Product Description
Introduction
Stripper Guide Sleeve is a precision component designed for accurate alignment and smooth guiding of stripper plates in stamping die systems. It works together with guide pillars to ensure stable movement during punching operations, helping maintain consistent positioning of die components. This improves overall stamping accuracy, reduces mechanical deviation, and enhances production efficiency in metal forming processes.
Manufactured from high-quality bearing steel or hardened tool steel, Stripper Guide Sleeve offers excellent wear resistance, high strength, and long service life. Advanced CNC machining, precision grinding, and heat treatment processes ensure tight dimensional tolerances up to ±0.002 mm. The finely polished inner surface reduces friction between moving parts, allowing smooth and stable guiding performance even under continuous high-speed stamping conditions, while minimizing maintenance requirements and operational wear.
Stripper Guide Sleeve is widely used in automotive stamping, electronics manufacturing, household appliance production, progressive die systems, and precision hardware industries. It is suitable for both standard and customized mold structures, offering flexible options in size, material, and lubrication design. Its reliable performance makes it an essential component for ensuring stable operation, improving tool life, and maintaining high precision in demanding industrial stamping environments.
Specifications
| Item | Description |
|---|---|
| Product Name | Stripper Guide Sleeve |
| Material | Bearing Steel / Hardened Tool Steel |
| Hardness | HRC 58–62 |
| Tolerance | ±0.002 mm |
| Inner Diameter | Standard or Customized |
| Outer Diameter | Standard or Customized |
| Length | Customized |
| Surface Finish | Precision Ground / Polished |
| Lubrication Type | Oil Groove Optional |
| Manufacturing Process | CNC Machining + Grinding + Heat Treatment |
| Customization | OEM / ODM Available |
