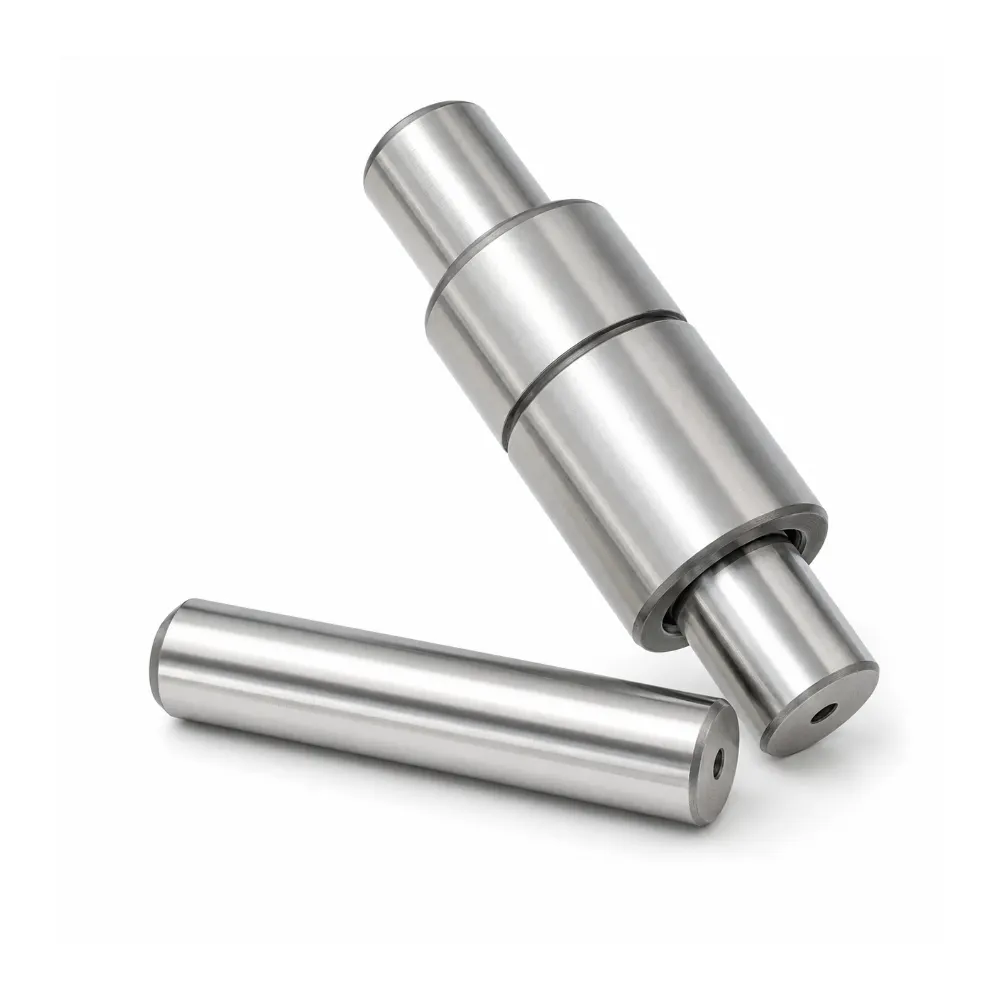

Sliding Guide Pillar
Sliding Guide Pillar is engineered to provide controlled linear guidance in machinery, molds, and automated production systems. Its precision-machined structure supports accurate component movement while helping maintain alignment throughout repetitive operating cycles. Manufactured from hardened bearing steel and finished with advanced grinding technology, it delivers outstanding durability, rigidity, and surface smoothness.
- Supports Continuous Linear Motion Reliability: Maintains stable guidance during prolonged operation.
- Improves Coordination Between Moving Assemblies: Enhances synchronized mechanical movement performance.
- Minimizes Equipment Vibration During Operation: Promotes smoother and more controlled motion.
- Adapts To Diverse Installation Requirements: Suitable for multiple machinery configuration designs.
Product Description
Introduction
Sliding Guide Pillar is a precision guiding component designed for mold systems, automation equipment, tooling assemblies, and industrial machinery that require smooth linear movement and reliable positioning accuracy. It provides stable sliding guidance between moving components, helping maintain proper alignment while reducing operational deviation. Its robust structure supports consistent motion control and contributes to improved equipment performance during long-term operation.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Sliding Guide Pillar undergoes precision machining, heat treatment, fine grinding, and polishing processes. These advanced manufacturing techniques ensure excellent hardness, wear resistance, dimensional stability, and surface quality. The precision-finished guiding surface minimizes friction while delivering smooth sliding performance and dependable operational reliability.
Sliding Guide Pillars are widely used in injection molds, stamping dies, mold bases, automated production equipment, precision machinery, industrial tooling systems, and mechanical guiding assemblies. Available in various diameters, lengths, and installation configurations, they can meet both standard industrial requirements and custom engineering applications. OEM and ODM services are available according to customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Sliding Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø120 mm |
| Length Range | 80 mm – 1500 mm |
| Guiding Type | Sliding Linear Guidance |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | High Precision |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Optimized For Continuous Linear Movement
Designed to support repeated sliding motion with dependable stability, making it suitable for equipment operating under continuous production conditions.
Helps Maintain Equipment Synchronization
Provides controlled guidance between moving assemblies, contributing to coordinated motion and improved mechanical performance across systems.
Reduces Operational Vibration Effects
Stable guiding action helps minimize unnecessary vibration, supporting smoother equipment operation and improved component longevity.
Compatible With Various Installation Layouts
Available for different assembly configurations, offering flexibility for machinery upgrades, replacement projects, and custom engineering designs.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
