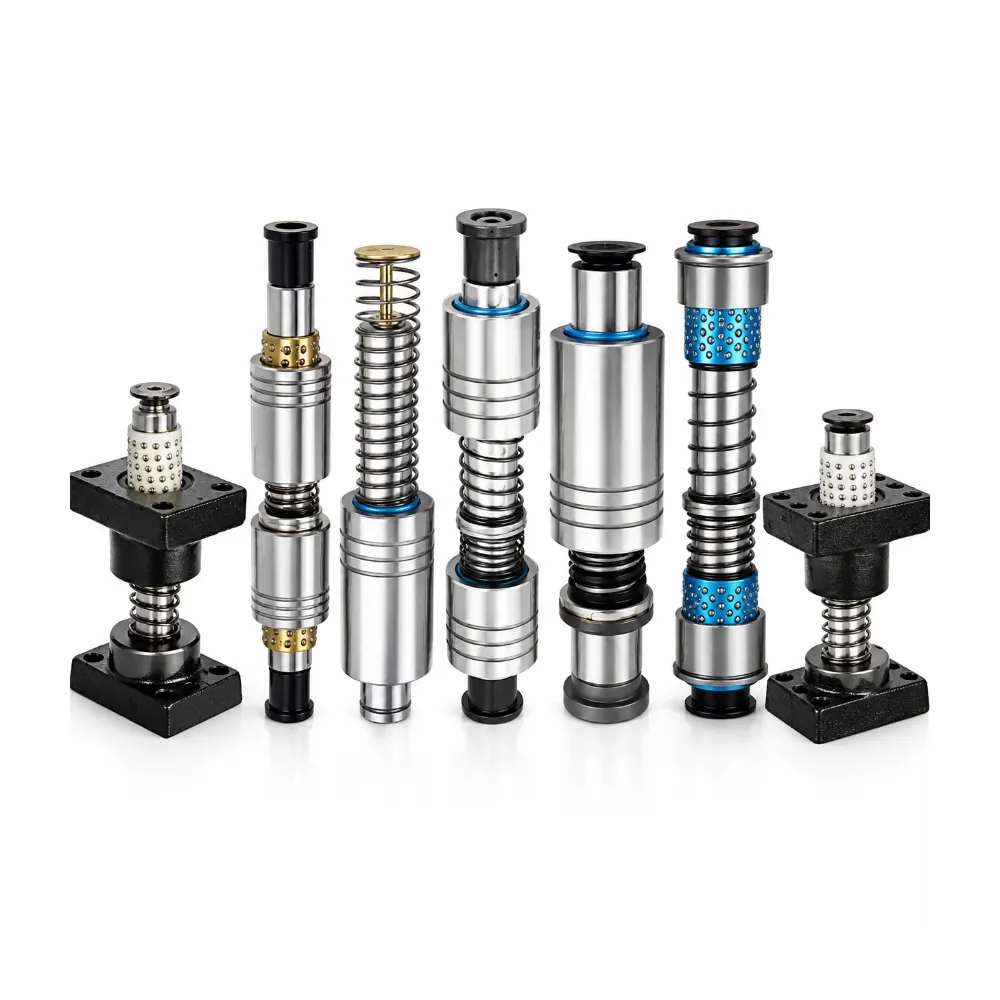

spring guide pillar
Spring guide pillar is a key alignment component used in precision mold assemblies to maintain consistent positioning during repetitive forming operations. It connects and guides mold sections with high accuracy, reducing deviation and improving operational stability. Manufactured from treated alloy steel with fine machining, it delivers strong mechanical strength, excellent resistance to wear, and dependable performance. The component is widely applied in industrial tooling systems requiring durability, smooth movement, and long-term structural reliability.
- High Accuracy: Maintains consistent mold alignment during cycles
- Wear Protection: Reduces surface damage under repeated friction
- Load Resistance: Performs reliably under heavy stamping pressure
- Smooth Guidance: Ensures low-friction stable mold movement
Product Description
Introduction
Spring Guide Pillar is a precision mold component designed to ensure accurate alignment and stable movement between mold plates during stamping, injection molding, and spring forming operations. It plays a key role in maintaining positioning accuracy, reducing friction, and improving overall mold performance in high-speed production environments.
Manufactured from high-strength alloy steel such as SUJ2, SKD11, or equivalent materials, the spring guide pillar undergoes heat treatment and precision grinding processes. This results in excellent hardness, dimensional accuracy, and wear resistance. The surface is finely polished or coated to minimize friction and extend service life, ensuring reliable performance under continuous heavy-duty operation.
The spring guide pillar is widely used in precision tooling systems where stability and alignment are critical. It is compatible with global mold standards and can be customized according to specific industrial requirements. Its robust structure and high-precision finish make it an essential component in improving mold efficiency, reducing downtime, and ensuring consistent product quality.
Specifications
| Item | Description |
|---|---|
| Product Name | Spring Guide Pillar |
| Material | SUJ2 / SKD11 / SCM440 / Customized |
| Hardness | HRC 58–62 after heat treatment |
| Surface Treatment | Polished / Hard chrome plating / Anti-rust coating |
| Precision Grade | High precision grinding (±0.005mm optional) |
| Straightness | ≤ 0.01mm / 100mm |
| Surface Roughness | Ra 0.2 – Ra 0.8 |
| Diameter Range | 3mm – 50mm |
| Length Range | 20mm – 500mm |
| Customization | OEM / ODM available based on drawings |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Precise Position Control
Spring guide pillar provides highly accurate positioning between mold halves, ensuring stable alignment during repetitive operations and improving overall tooling consistency in high-speed manufacturing environments.
Extended Component Durability
Designed with hardened steel structure, it withstands long-term mechanical stress and reduces deformation, significantly extending service life in continuous industrial molding and stamping applications.
Optimized Surface Finish
The finely ground surface reduces contact resistance and improves sliding efficiency, helping minimize wear between guide components and ensuring smoother mold movement performance.
Strong Structural Stability
Maintains rigid support under high load conditions, preventing misalignment during operation and ensuring reliable performance in demanding stamping and injection molding production systems.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
Q1: What is a spring guide pillar used for?
It is used to guide and align mold components during stamping, injection molding, and spring forming processes to ensure stable and precise movement.
Q2: What materials are commonly used?
Common materials include SUJ2, SKD11, and SCM440 hardened steel, selected for high strength, wear resistance, and long service life.
Q3: Can the spring guide pillar be customized?
Yes, diameter, length, tolerance, and material can be customized according to customer drawings and specific mold system requirements.
Q4: Which industries use this component?
It is widely used in automotive manufacturing, precision tooling, metal stamping, plastic molding, and industrial automation systems.
Q5: What surface treatments are available?
Options include polishing, hard chrome plating, and anti-corrosion coating to improve durability, reduce friction, and extend operational life.
