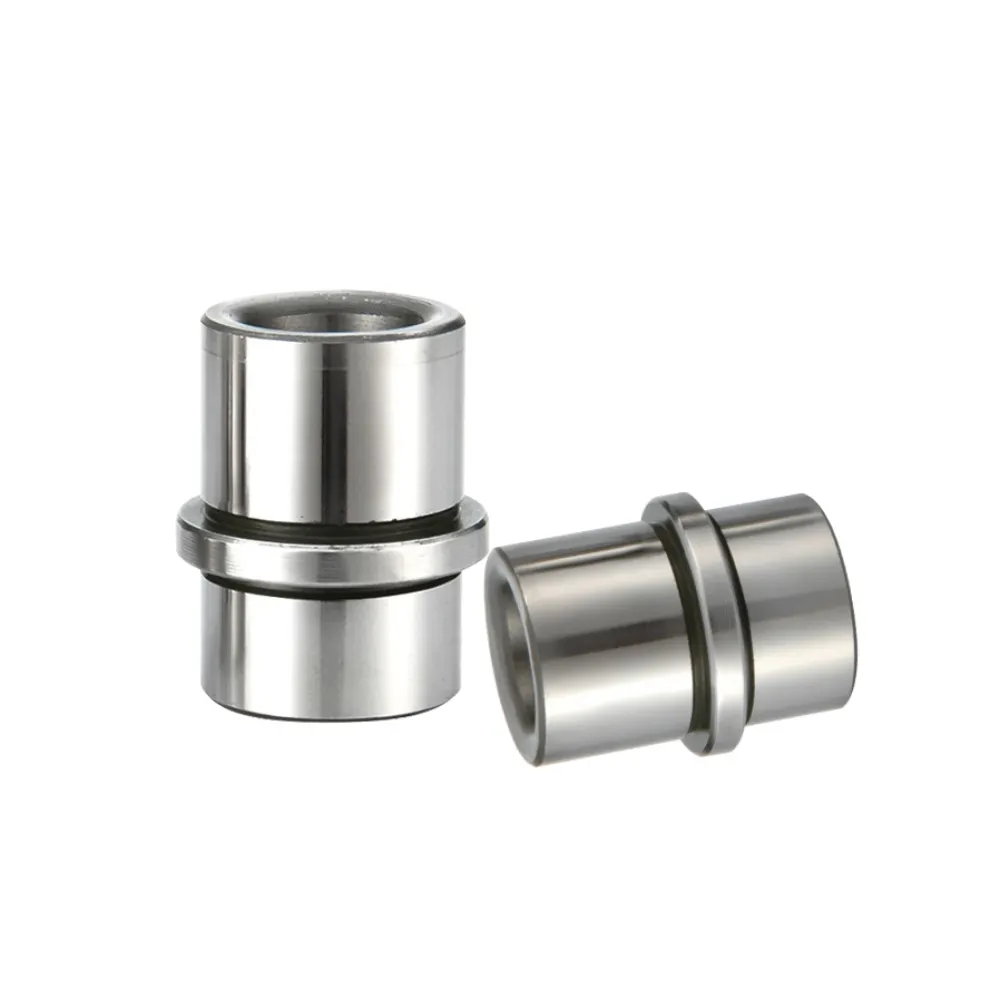

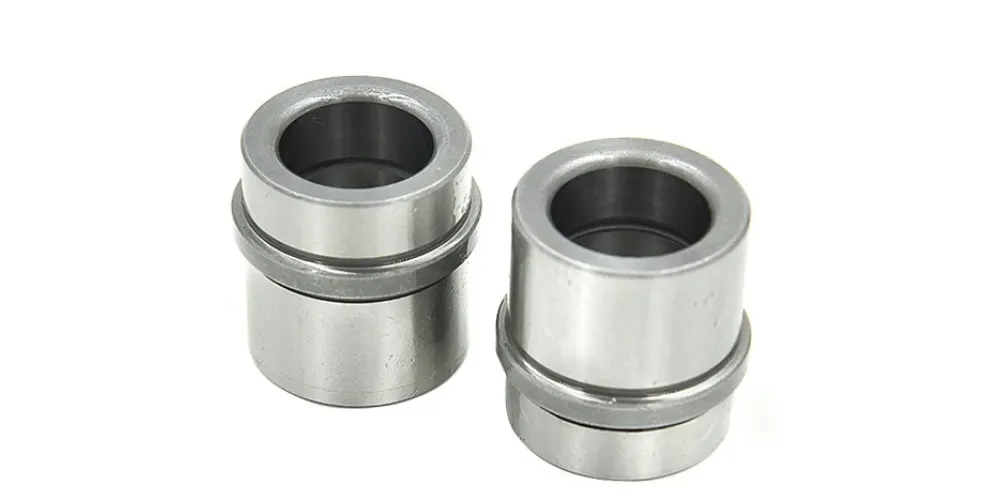

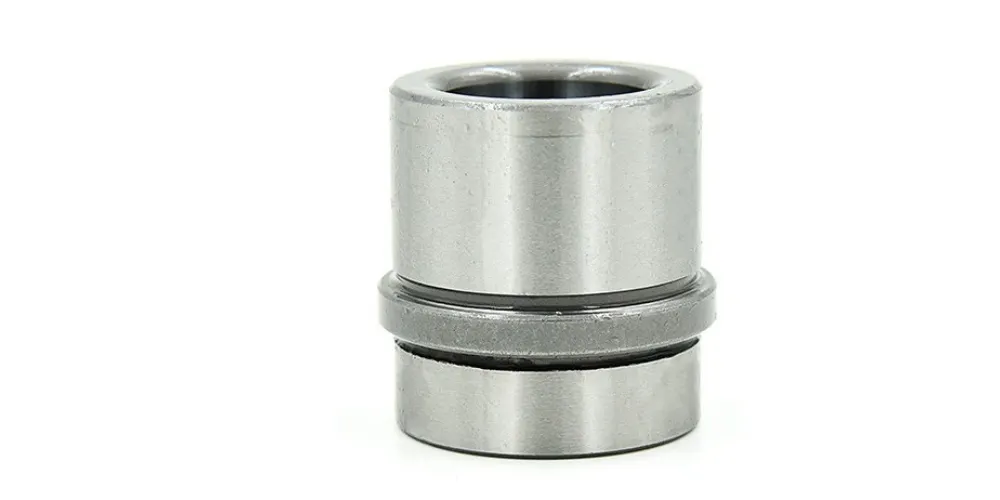

Standard Guide Bushing
Standard Guide Bushing is a key mold alignment component designed to support precise movement between guide pillars and mold plates. It ensures stable operation in stamping and injection systems, helping maintain consistent positioning during production. Built for industrial durability, it performs reliably under repeated cycles and is suitable for various standard mold structures requiring dependable guiding performance.
- Stable Operation: Maintains consistent mold performance
- Reduced Wear: Minimizes surface friction damage
- Easy Installation: Fits standard mold systems
- Long Service Life: Supports extended industrial use
Product Description
Introduction
Standard Guide Bushing is a precision-engineered guiding component used in mold and die systems to ensure accurate alignment between moving parts. It works together with guide pillars to maintain stable positioning during operation, helping improve production accuracy and reduce mechanical deviation. Its reliable guiding function makes it an essential component in stamping dies, injection molds, and other precision tooling applications.
Manufactured from high-quality bearing steel or hardened tool steel, Standard Guide Bushing offers excellent wear resistance, structural strength, and dimensional stability. Advanced CNC machining, precision grinding, and heat treatment processes ensure tight tolerances up to ±0.002 mm. The finely finished internal surface minimizes friction and supports smooth linear movement, contributing to stable mold performance and extended component lifespan.
Standard Guide Bushing is widely used in automotive tooling, electronics manufacturing, household appliance molds, progressive die systems, and precision hardware production. It is suitable for both standard mold assemblies and customized tooling solutions. Available in various sizes and configurations, it can meet different engineering requirements for load capacity and guiding accuracy. With its dependable performance and compatibility with standard guide pillar systems, Standard Guide Bushing provides an efficient solution for maintaining precise mold alignment and ensuring consistent manufacturing quality across a wide range of industrial applications.
Specifications
| Item | Description |
|---|---|
| Product Name | Standard Guide Bushing |
| Material | Bearing Steel / Tool Steel |
| Hardness | HRC 58–62 |
| Tolerance | ±0.002 mm |
| Inner Diameter | Standard or Customized |
| Outer Diameter | Standard or Customized |
| Length | Standard or Customized |
| Surface Finish | Precision Ground |
| Lubrication Type | Oil Groove Optional |
| Manufacturing Process | CNC Machining + Grinding + Heat Treatment |
| Custom Service | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Positioning Accuracy
Standard Guide Bushing ensures precise alignment between guide pillars and mold components, reducing deviation during operation and maintaining consistent positioning accuracy in high-speed stamping and injection molding processes.
Excellent Wear Resistance
Made from hardened bearing steel or tool steel, it provides strong resistance to friction and abrasion, ensuring stable performance and extended service life under continuous industrial use.
Smooth Guiding Movement
Precision internal grinding creates a low-friction surface, allowing smooth linear motion between moving parts and improving overall mold efficiency and operational stability.
Strong Compatibility
Designed to match standard mold systems, it offers easy installation and interchangeability, making it suitable for a wide range of stamping dies and injection mold applications.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
