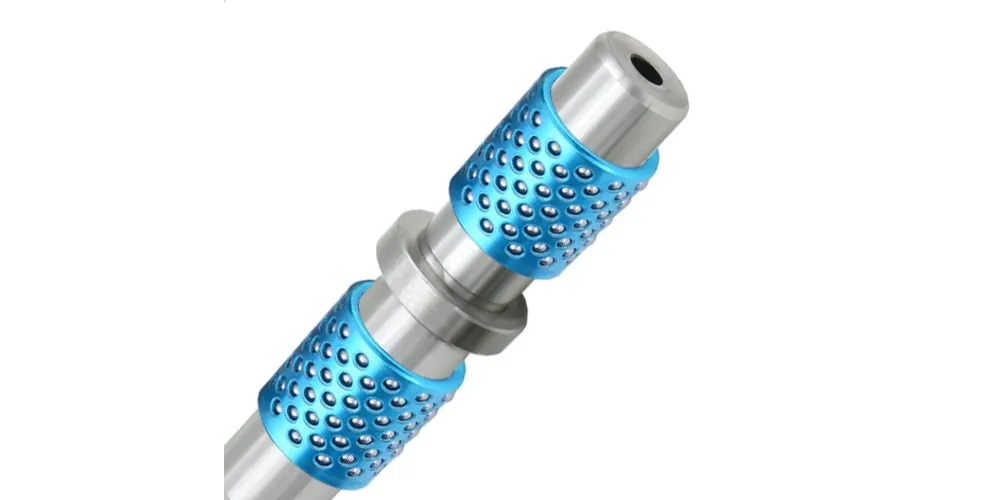

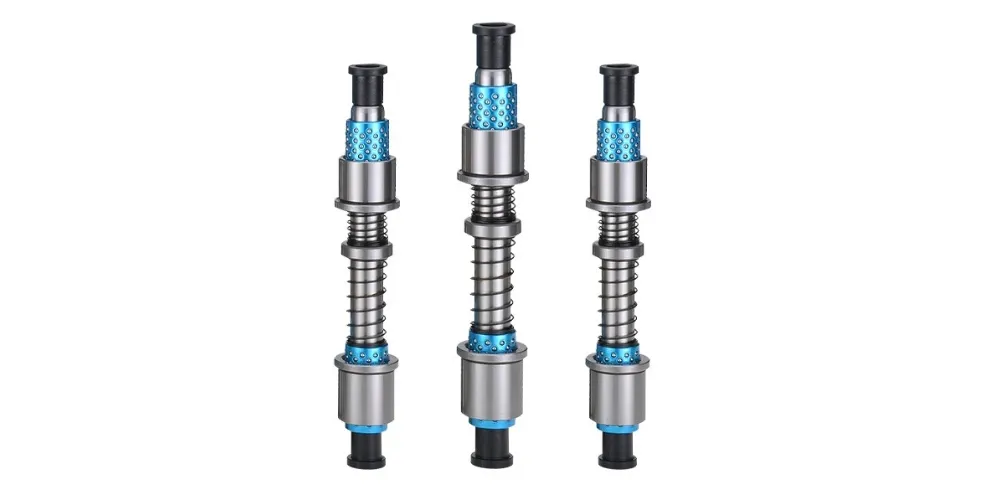

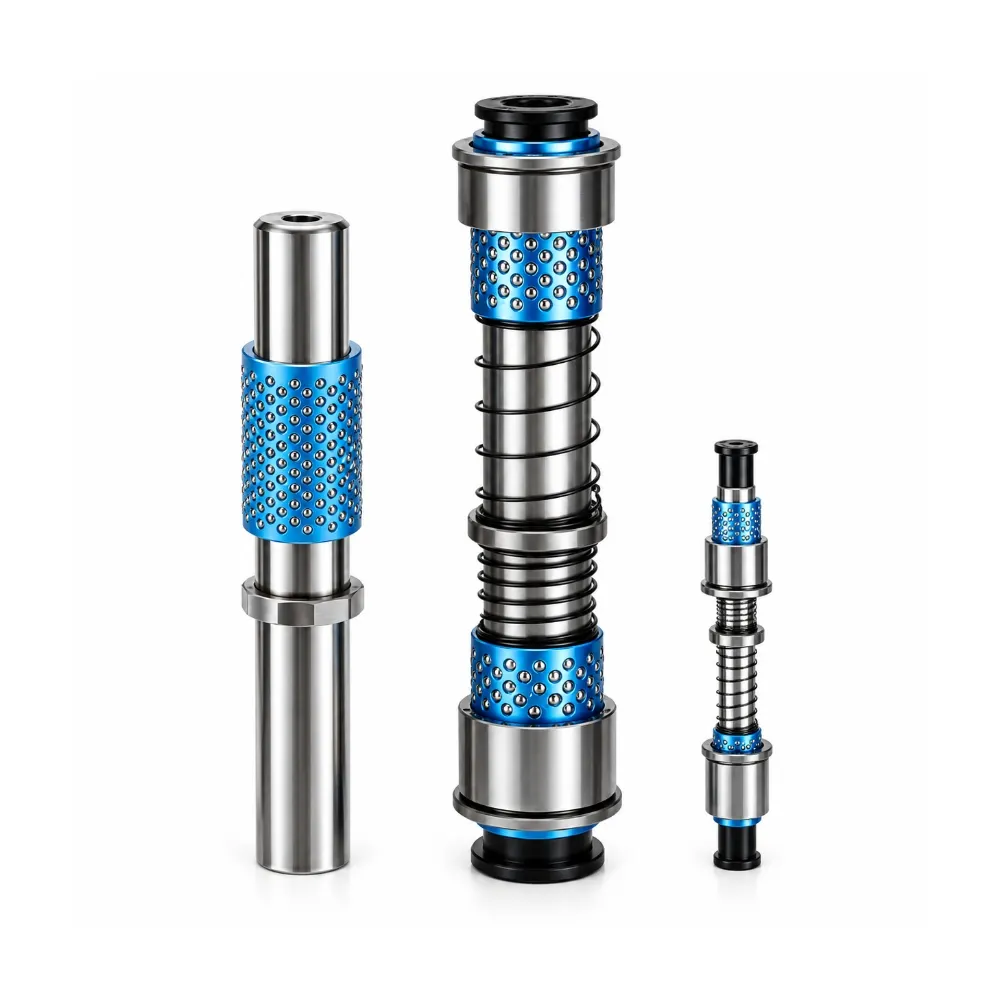

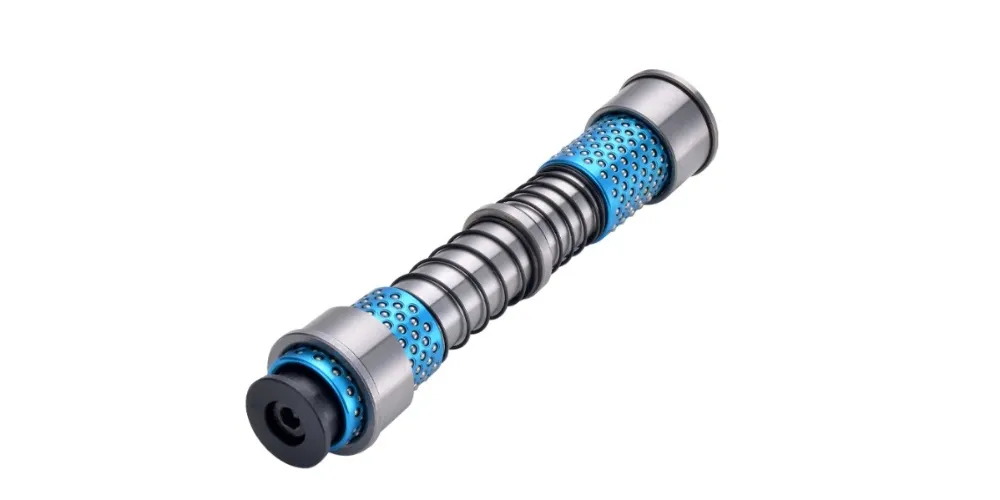

Steel Ball Guide Pillar
Steel Ball Guide Pillar is engineered for precision guidance applications that demand smooth rolling motion and accurate component alignment. Incorporating a steel ball guidance mechanism, it significantly lowers operating resistance while improving movement consistency. Manufactured from high-strength bearing steel and processed through advanced grinding and hardening techniques, it offers exceptional durability and dimensional reliability. Commonly applied in molds, stamping tools, automated machinery, and precision manufacturing systems, it supports stable operation and long-term production efficiency.
- Enhances Rolling Guidance Efficiency: Provides smoother and more controlled movement.
- Minimizes Guiding Surface Wear: Reduces direct friction between components.
- Improves Motion Repeatability Accuracy: Maintains consistent positioning performance.
- Fits Precision Mechanical Systems: Suitable for advanced industrial equipment.
Product Description
Introduction
Steel Ball Guide Pillar is a high-precision mold guiding component designed for applications requiring smooth motion, accurate alignment, and low-friction performance. Featuring an integrated steel ball guidance structure, it effectively reduces sliding resistance and enhances guiding stability during mold operation. This design helps improve positioning accuracy, extend component life, and support consistent production quality in demanding industrial environments.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Steel Ball Guide Pillar undergoes precision turning, heat treatment, grinding, and polishing processes. These advanced manufacturing techniques provide outstanding hardness, wear resistance, dimensional stability, and fatigue strength. The precision-ground guiding surface combined with steel ball rolling elements ensures smooth movement and reliable performance throughout long-term operation.
Steel Ball Guide Pillars are widely used in injection molds, stamping dies, progressive tooling systems, automotive molds, medical device molds, electronic component molds, and precision automation equipment. Available in various diameters, lengths, and precision grades, they can meet both standard industrial applications and customized engineering requirements. OEM and ODM manufacturing services are available according to customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Steel Ball Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø120 mm |
| Length Range | 80 mm – 1800 mm |
| Guiding Type | Steel Ball Rolling Guidance |
| Straightness | ≤0.003 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Standard / Custom Mounting |
| Precision Grade | Ultra High Precision |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Enhances Rolling Guidance Performance
Steel ball technology enables smoother travel between components, helping improve guiding efficiency and maintain stable operational performance.
Reduces Surface Contact Wear
Rolling elements minimize direct sliding contact, helping protect guiding surfaces and extend component lifespan during prolonged use.
Improves Motion Repeatability Accuracy
Provides consistent movement characteristics that support precise positioning and reliable results across repeated production cycles.
Suitable For Precision Mechanical Systems
Widely used in advanced tooling and automation equipment where accurate guidance and smooth motion are critical requirements.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Steel Ball Guide Pillar?
A Steel Ball Guide Pillar is a precision guiding component that uses steel ball rolling elements to provide smooth movement, accurate alignment, and reduced friction in mold systems.
What are the advantages of a Steel Ball Guide Pillar?
It offers low friction operation, smooth rolling movement, high positioning accuracy, reduced wear, and extended service life compared with conventional guide pillars.
What materials are commonly used for Steel Ball Guide Pillars?
Steel Ball Guide Pillars are typically manufactured from SUJ2 or GCr15 bearing steel, providing excellent hardness, durability, and wear resistance.
Can Steel Ball Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, mounting styles, surface treatments, and special specifications can be produced according to customer drawings and requirements.
Where are Steel Ball Guide Pillars commonly used?
They are widely used in injection molds, stamping dies, progressive tooling systems, automotive molds, medical device molds, electronic component molds, and industrial automation equipment.
