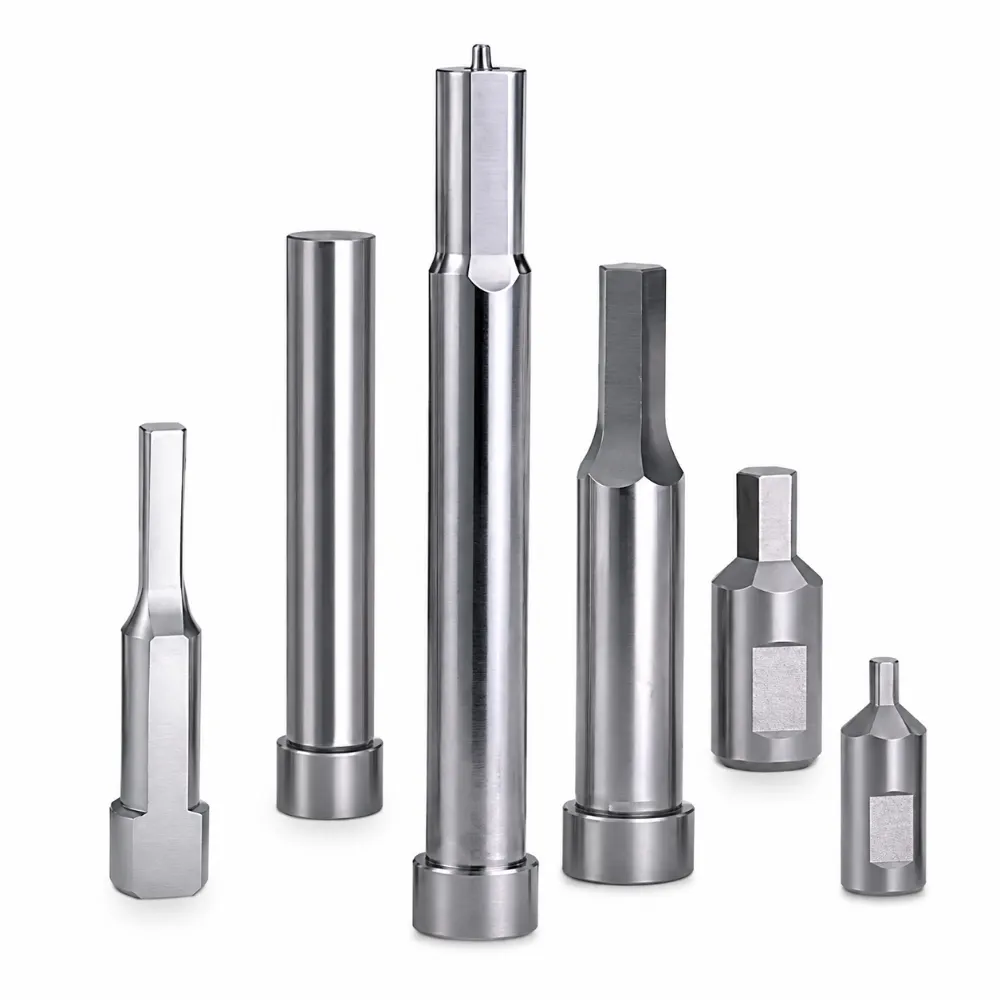

Alloy Steel Punch Pin
Alloy Steel Punch Pins are durable die components used in precision stamping systems. Made from engineered alloy tool steels, they offer a balanced combination of strength and wear resistance. Suitable for continuous production, they maintain stable performance under mechanical stress. Advanced machining and heat treatment ensure consistent quality, making them ideal for industrial punching and forming applications requiring reliability and accuracy.
- Impact Resistance: Withstands heavy stamping force without damage.
- Thermal Stability: Maintains performance under elevated working temperatures.
- Surface Smoothness: Reduces friction for cleaner punching results.
- Consistent Output: Ensures stable performance in mass production cycles.
Product Description
Introduction
Alloy Steel Punch Pins are precision-engineered tooling components designed for metal stamping dies and progressive die systems. Manufactured from high-quality alloy tool steels, they provide an excellent balance of hardness, toughness, and wear resistance. These punch pins are widely used in industrial applications where stable performance, accuracy, and long tool life are required under continuous production conditions.
Produced through advanced CNC machining and precision grinding processes, Alloy Steel Punch Pins achieve tight dimensional tolerances up to ±0.002 mm. With optimized heat treatment, the material structure offers improved strength and resistance to deformation, ensuring reliable operation even in high-load and high-speed stamping environments. Their smooth surface finish also helps reduce friction and wear during repeated punching cycles.
These punch pins are widely applied in automotive parts, electronic components, connectors, terminals, and precision hardware manufacturing. They can be fully customized according to customer drawings, including diameter, length, head shape, and surface coatings such as TiN or TiCN. This flexibility makes Alloy Steel Punch Pins an ideal solution for OEM tooling requirements and demanding industrial production lines requiring consistency and durability.
Technical Specifications
| Item | Description |
|---|---|
| Product Name | Alloy Steel Punch Pin |
| Material | Alloy Tool Steel (Custom Grades Available) |
| Hardness | HRC 58–62 |
| Tolerance | ±0.002 mm |
| Diameter Range | Customized |
| Length | Customized |
| Surface Finish | Precision Ground |
| Heat Treatment | Vacuum Heat Treatment |
| Manufacturing Process | CNC Machining + Precision Grinding |
| Customization | Available (OEM/ODM Supported) |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Strength
Alloy Steel Punch Pins provide excellent mechanical strength and toughness, allowing stable performance under high-impact stamping conditions and reducing the risk of cracking or deformation during continuous production.
Wear Resistance
Optimized alloy composition and heat treatment ensure strong wear resistance, extending tool life and maintaining consistent punching accuracy in long-term stamping operations.
High Dimensional Accuracy
Precision CNC machining and grinding achieve tight tolerances up to ±0.002 mm, ensuring stable and repeatable performance in demanding die applications.
Reliable Production Performance
Designed for high-speed and high-load stamping environments, these punch pins deliver consistent operation, reduced downtime, and improved overall manufacturing efficiency.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Tolerance Precision Up to ±0.002mm
Selected authentic ingredients 1 piece is equivalent to 5 pieces
Batch processing and customization based on drawings, free sampling.
Application Range
The preferred choice across various industries.
