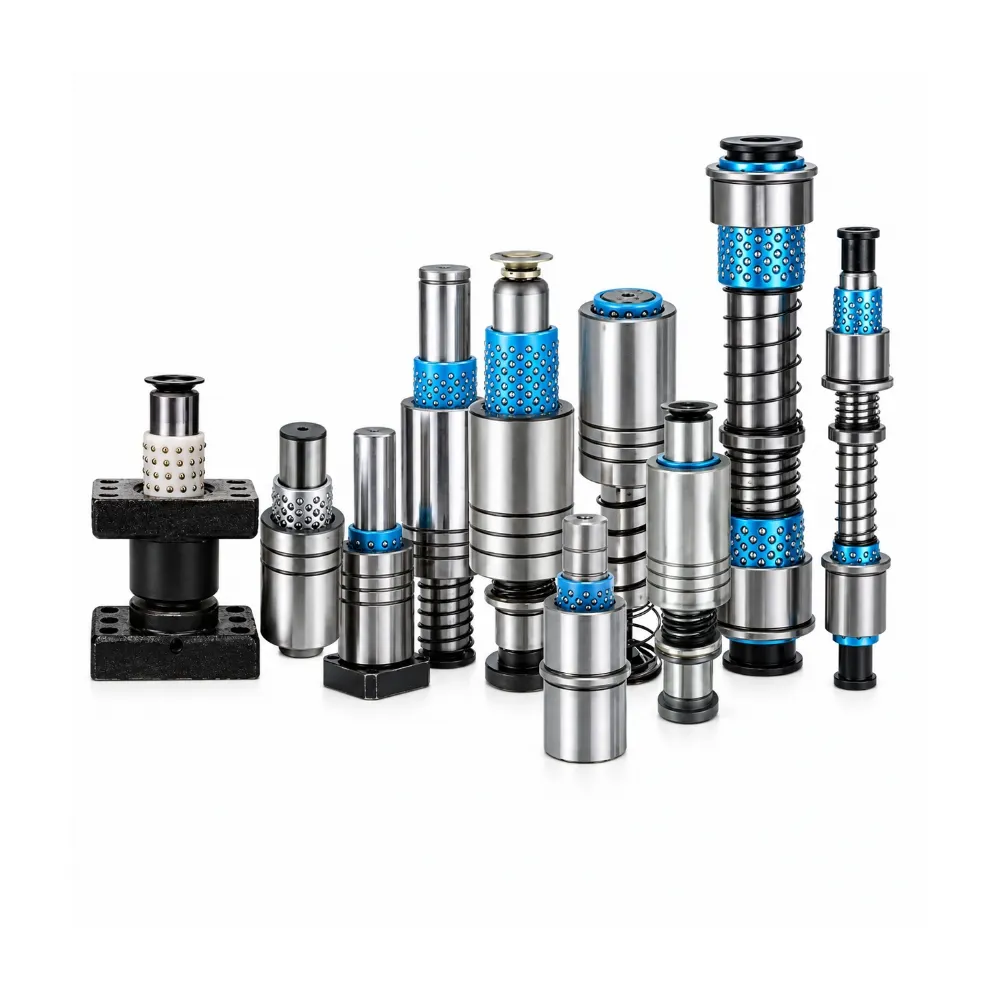

Ball Bearing Guide Pillar
Ball Bearing Guide Pillar is engineered for precision guiding applications that demand low-friction movement and exceptional positioning accuracy. Utilizing a ball-bearing support structure, it enables smooth linear travel while reducing resistance between moving components. Manufactured from hardened bearing steel and finished through advanced grinding processes, it offers outstanding durability, stability, and wear resistance. This guide pillar is widely applied in high-speed molds, progressive dies, automated equipment, and precision tooling systems where reliable motion control is essential.
- Reduces Direct Surface Contact Significantly: Minimizes friction between guiding components.
- Maintains Stability During High Speed Cycles: Supports reliable operation in rapid production.
- Delivers Consistent Repeatable Travel Accuracy: Ensures precise movement across multiple cycles.
- Requires Less Force For Movement: Improves efficiency through lower rolling resistance.
Product Description
Introduction
Ball Bearing Guide Pillar is a high-precision guiding component designed for molds, dies, mold bases, and automated tooling systems requiring smooth linear motion and superior positioning accuracy. Integrated with ball-bearing guidance technology, it significantly reduces friction between moving components, ensuring smoother travel, higher precision, and improved operational efficiency. This design is particularly suitable for applications where stable movement and repeatable positioning are critical.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Ball Bearing Guide Pillar undergoes precision machining, heat treatment, grinding, and polishing processes to achieve exceptional hardness, dimensional stability, and wear resistance. The ball-bearing structure minimizes direct contact between guiding surfaces, helping reduce wear and maintain long-term guiding performance even under continuous production conditions.
Ball Bearing Guide Pillars are widely used in precision stamping dies, injection molds, progressive dies, electronic component molds, automotive tooling systems, and high-speed manufacturing equipment. Available in various diameters, lengths, and precision grades, they can accommodate both standard mold systems and customized engineering projects. OEM and ODM manufacturing services are available according to customer drawings and technical requirements.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Ball Bearing Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø100 mm |
| Length Range | 80 mm – 1200 mm |
| Guiding Type | Ball Bearing Guidance |
| Straightness | ≤0.005 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Precision Grade | High Precision |
| Installation Type | Press Fit / Custom Mounting |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Minimizes Guiding Surface Contact
The ball-bearing mechanism reduces direct metal-to-metal contact, helping decrease friction, improve efficiency, and support smoother movement throughout operation.
Excellent Performance At High Speeds
Designed for rapid cycling applications, maintaining stable guidance and positioning accuracy even in high-speed manufacturing environments.
Improved Motion Repeatability
Ball-guided movement helps achieve highly consistent travel paths, supporting precision production processes that require repeatable positioning performance.
Lower Energy Consumption During Movement
Reduced rolling resistance helps decrease operating force requirements, contributing to smoother motion and improved mechanical efficiency in tooling systems.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Ball Bearing Guide Pillar?
A Ball Bearing Guide Pillar is a precision guiding component that uses ball-bearing technology to provide smooth, low-friction movement and accurate positioning in molds and dies.
What are the advantages of a Ball Bearing Guide Pillar?
It offers reduced friction, improved positioning accuracy, smoother motion, lower wear, and longer service life compared with conventional guide pillars.
What materials are commonly used for Ball Bearing Guide Pillars?
Ball Bearing Guide Pillars are typically manufactured from SUJ2 or GCr15 bearing steel, providing high hardness, excellent durability, and wear resistance.
Can Ball Bearing Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, mounting methods, and surface treatments can be manufactured according to customer drawings and application requirements.
Where are Ball Bearing Guide Pillars commonly used?
They are widely used in precision stamping dies, progressive dies, injection molds, automated equipment, electronic component molds, automotive tooling systems, and high-speed production machinery.
