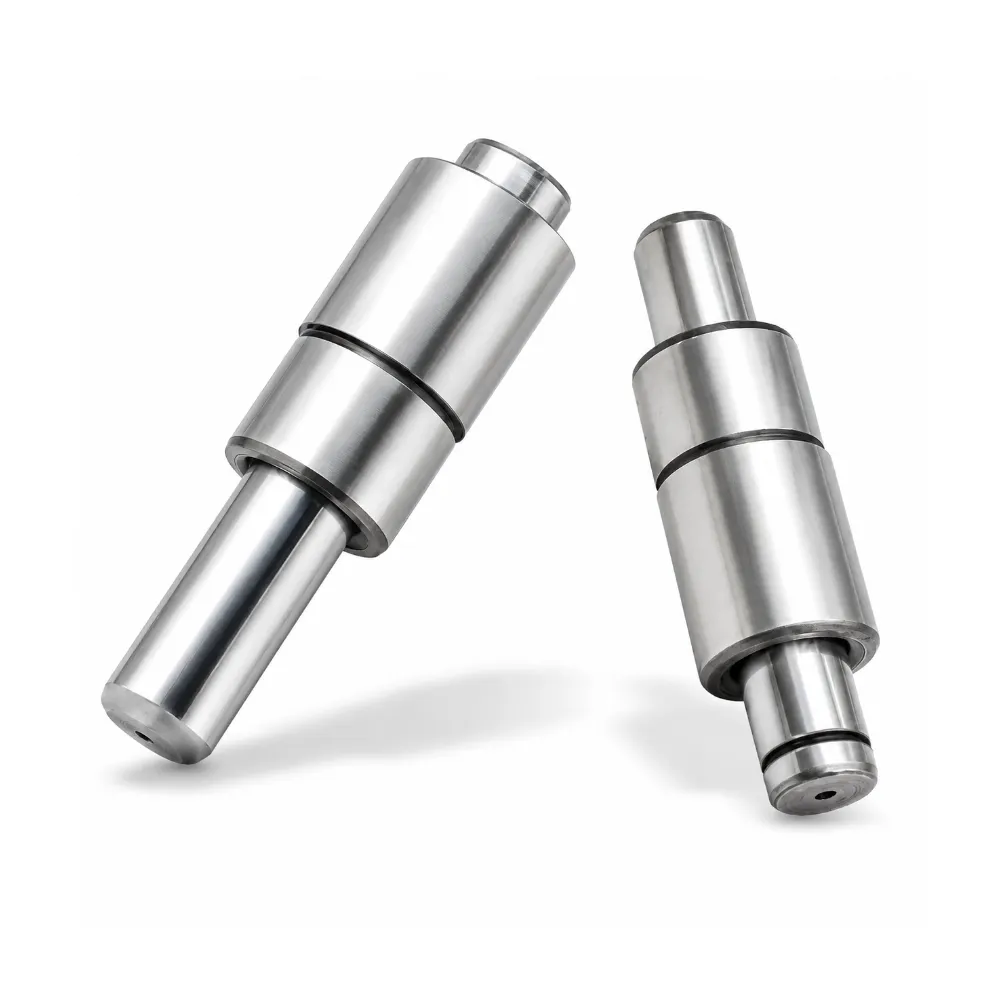

Diagonal Guide Pillar
Diagonal Guide Pillar is engineered for mold systems requiring enhanced positional control and stable guiding performance at diagonal mounting positions. It improves structural balance between mold halves and supports accurate alignment during repeated opening and closing cycles. Manufactured from hardened bearing steel with precision grinding processes, it delivers high strength, wear resistance, and long-term dimensional reliability. Commonly used in injection molds, stamping dies, and precision tooling systems, it helps maintain consistent performance in complex industrial manufacturing environments.
- Enhances Mold Alignment Balance: Improves positional stability in assemblies.
- Supports Complex Tool Structures: Works well in advanced mold designs.
- Distributes Mechanical Load Evenly: Reduces localized stress on components.
- Improves Assembly Accuracy Control: Ensures consistent precision during operation.
Product Description
Introduction
Diagonal Guide Pillar is a precision mold guiding component designed to improve alignment accuracy and operational stability in injection molds, stamping dies, mold bases, and precision tooling systems. Installed in diagonal positions within mold assemblies, it helps maintain accurate mold matching and balanced movement during opening and closing operations. This design contributes to improved guiding performance, reduced component wear, and enhanced production consistency.
Manufactured from premium bearing steel such as SUJ2 or GCr15, the Diagonal Guide Pillar undergoes precision machining, heat treatment, cylindrical grinding, and polishing processes. These advanced production methods ensure excellent hardness, dimensional stability, wear resistance, and fatigue strength. The precision-ground guiding surface provides smooth interaction with guide bushings and supports long-term alignment accuracy under continuous industrial operation.
Diagonal Guide Pillars are widely used in injection molds, progressive dies, stamping tooling, automotive molds, electronic component molds, precision mold bases, and automation equipment. Available in multiple diameters, lengths, and precision grades, they can satisfy both standard mold requirements and customized engineering projects. OEM and ODM manufacturing services are available according to customer drawings and technical specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Diagonal Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Precision Ground & Polished |
| Hardness | HRC 58-62 |
| Diameter Range | Ø10 mm – Ø120 mm |
| Length Range | 80 mm – 1800 mm |
| Guiding Type | Diagonal Alignment Guidance |
| Straightness | ≤0.003 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | High Precision |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Strengthens Mold Alignment Stability
Diagonal positioning enhances overall mold guidance balance, helping maintain accurate assembly movement and reducing alignment-related production issues.
Improves Guidance In Complex Tooling
Suitable for sophisticated mold structures requiring additional positioning support to achieve reliable operation and consistent performance.
Reduces Uneven Component Loading
Balanced guiding action helps distribute operational forces more effectively, minimizing localized stress and extending component lifespan.
Supports Precision Assembly Performance
Provides dependable alignment control that contributes to improved mold accuracy and enhanced manufacturing quality across production cycles.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a Diagonal Guide Pillar?
A Diagonal Guide Pillar is a precision mold component installed at diagonal positions in mold assemblies to improve alignment accuracy and structural stability.
What is the function of a Diagonal Guide Pillar?
Its function is to enhance mold positioning balance, reduce misalignment during operation, and ensure smooth opening and closing movement of molds.
What materials are used for Diagonal Guide Pillars?
Diagonal Guide Pillars are typically made from SUJ2 or GCr15 bearing steel, offering high hardness, wear resistance, and long service life.
Can Diagonal Guide Pillars be customized?
Yes. They can be customized in diameter, length, tolerance, surface treatment, and mounting design according to customer requirements and drawings.
Where are Diagonal Guide Pillars commonly used?
They are widely used in injection molds, stamping dies, progressive tooling systems, automotive molds, electronic component molds, and precision mold bases.
