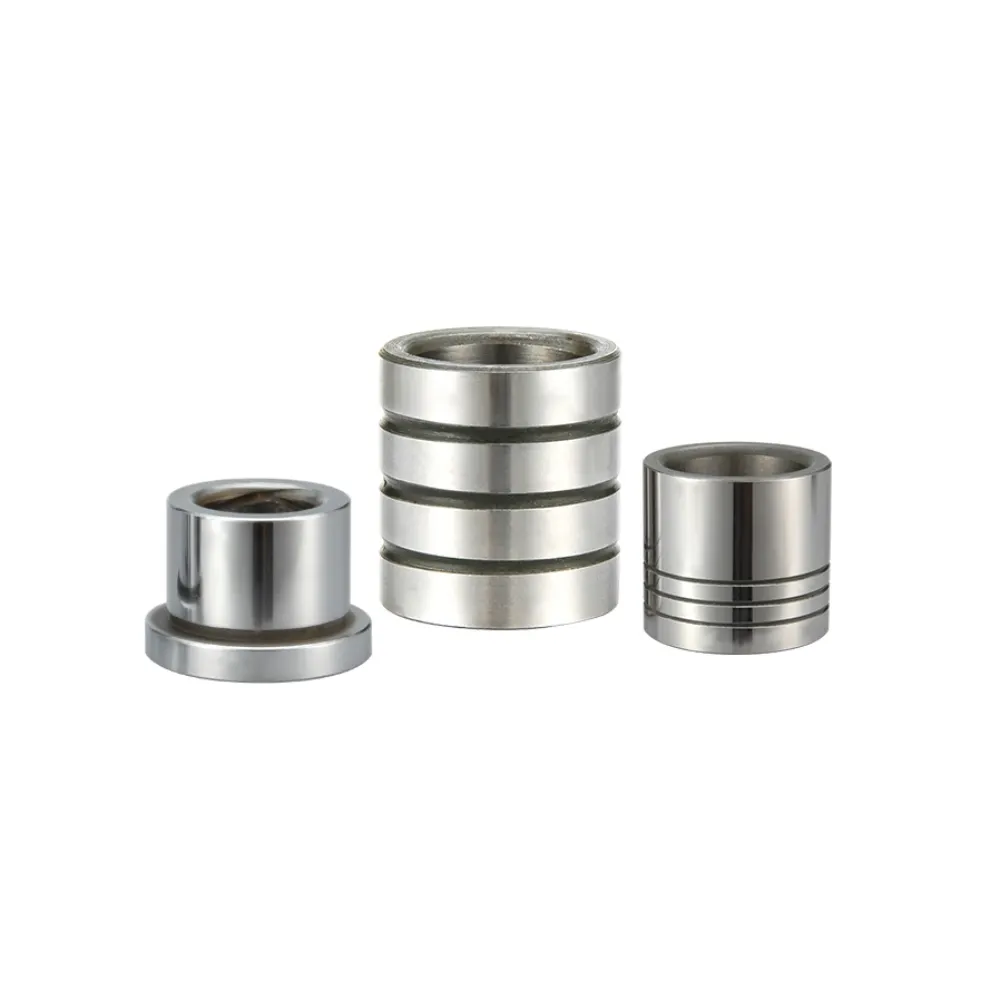

Metal Stamping Guide Bushing
Metal Stamping Guide Bushing is a core die component used to support accurate motion control and alignment in stamping systems. It helps maintain stable operation between moving parts and improves overall forming consistency. Designed for industrial use, it performs reliably under continuous load conditions and is suitable for various metal processing and high-precision manufacturing applications.
- Dimensional Consistency: Maintains stable part geometry
- Vibration Control: Reduces operational shaking
- Assembly Efficiency: Ensures quick installation
- Extended Durability: Supports long production cycles
Product Description
Introduction
Metal Stamping Guide Bushing actively ensures accurate alignment and smooth guiding within stamping die systems. It works in coordination with guide pillars to actively stabilize die plate positioning during punching and forming operations. By maintaining consistent alignment, it actively reduces mechanical deviation, improves stamping precision, and enhances overall production efficiency in metal forming processes.
Manufacturers produce Metal Stamping Guide Bushing from high-quality bearing steel or hardened tool steel to actively achieve excellent wear resistance, high strength, and long service life. Advanced CNC machining, precision internal grinding, and heat treatment processes actively control tolerances within ±0.002 mm. The finely polished inner surface actively reduces friction between moving parts, enabling smooth guiding performance even under high-speed, continuous stamping conditions while actively lowering maintenance demand and wear.
Metal Stamping Guide Bushing is widely applied in hardware manufacturing, automotive sheet metal production, electrical component stamping, household appliance parts, and progressive die systems. It actively supports both standard die structures and customized tooling solutions. Engineers can flexibly design inner diameter, outer diameter, length, lubrication grooves, and material selection to meet diverse industrial requirements. Its reliable performance actively ensures stable operation, high precision, and long-term durability in demanding stamping production environments.
Specifications
| Item | Description |
|---|---|
| Product Name | Metal Stamping Guide Bushing |
| Material | Bearing Steel / Hardened Tool Steel |
| Hardness | HRC 58–62 |
| Tolerance | ±0.002 mm |
| Inner Diameter | Standard or Customized |
| Outer Diameter | Standard or Customized |
| Length | Customized |
| Surface Finish | Precision Ground |
| Lubrication Type | Oil Groove Optional |
| Manufacturing Process | CNC Machining + Grinding + Heat Treatment |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Positioning Accuracy
Metal Stamping Guide Bushing ensures precise alignment between guide pillars and die components, reducing deviation during stamping operations and maintaining consistent positioning accuracy in high-speed production environments.
Smooth Guiding Performance
The precision-ground inner surface minimizes friction, allowing stable and smooth movement of die parts, improving operational efficiency and reducing resistance during continuous stamping cycles.
Excellent Wear Resistance
Made from hardened steel materials, it provides strong resistance to abrasion and deformation, ensuring reliable performance and extended service life under heavy-duty industrial conditions.
Strong Load Capacity
Designed for high-pressure stamping applications, it maintains structural stability under repeated impact loads, ensuring consistent guiding performance and reducing downtime in production lines.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is a Metal Stamping Guide Bushing used for?
It is used in stamping die systems to ensure accurate alignment and smooth guiding of moving die components during production.
2. What materials are used for Metal Stamping Guide Bushing?
Common materials include hardened steel, bearing steel, and other high-strength wear-resistant alloys.
3. Can Metal Stamping Guide Bushing be customized?
Yes, it can be customized in size, tolerance, material, surface finish, and lubrication structure.
4. Where is Metal Stamping Guide Bushing commonly applied?
It is widely used in automotive parts, hardware manufacturing, electronics stamping, and metal forming industries.
5. What is the main advantage of Metal Stamping Guide Bushing?
It provides stable alignment, smooth guiding motion, and long service life in stamping operations.
