Product Description
Introduction

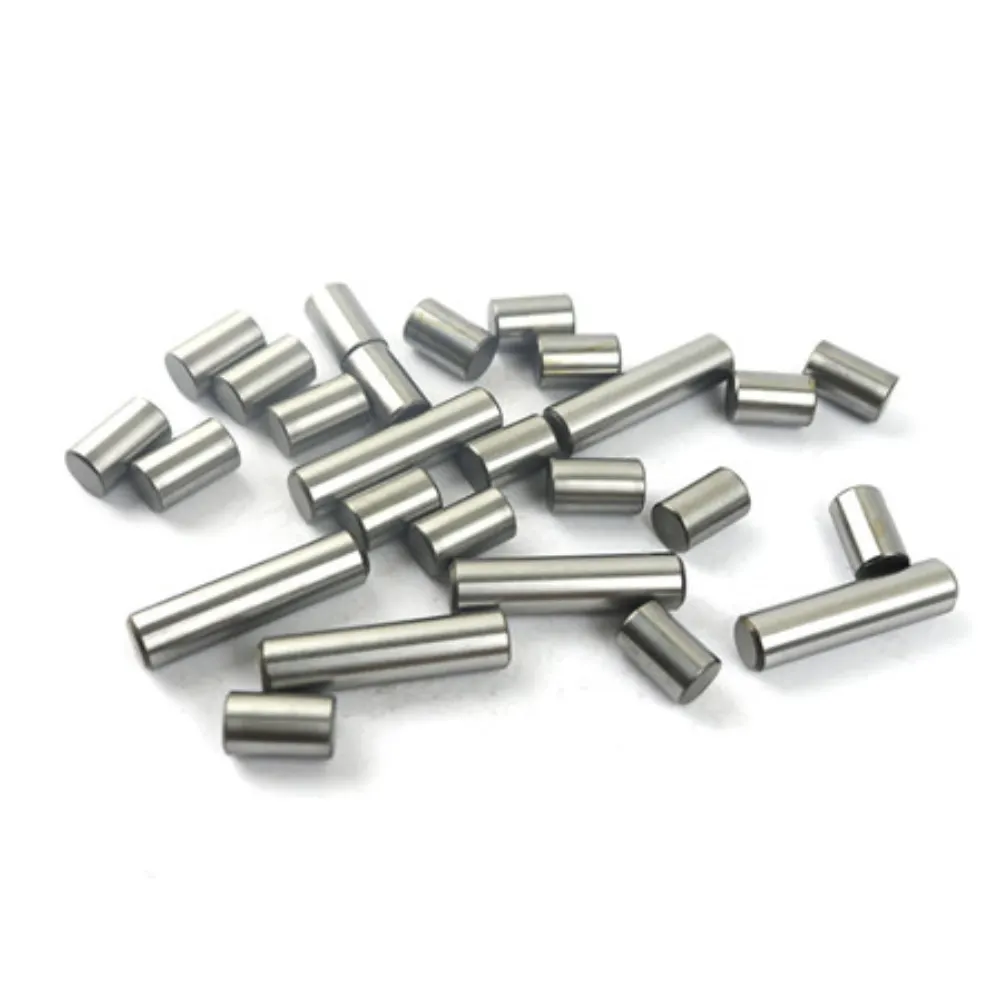

Dowel Pins are precision cylindrical components used for accurate alignment, positioning, and fixing of parts in mechanical assemblies, molds, and tooling systems. They ensure repeatable fit between components, improving structural stability and assembly accuracy. Manufactured from alloy steel, stainless steel, or hardened tool steel, they are designed for demanding industrial environments where precision and reliability are essential.
Produced through advanced CNC machining, grinding, and heat treatment processes, Dowel Pins achieve high dimensional accuracy with tight tolerances up to ±0.002 mm. Depending on material selection, hardness can reach HRC 58–62, providing strong resistance to wear and deformation. Their smooth surface finish ensures easy insertion and stable fit, reducing assembly errors and improving operational efficiency in production lines.
Dowel Pins are widely used in automotive manufacturing, precision machinery, mold and die systems, fixtures, jigs, and industrial automation equipment. They are essential in applications requiring precise alignment and repeatable positioning. Custom options such as diameter, length, tolerance class, material grade, and surface finish are available to meet specific engineering requirements, making them a flexible and reliable solution for OEM and industrial assembly applications.
Technical Specifications
| Item | Description |
|---|---|
| Product Name | Dowel Pin |
| Type | Straight / Tapered / Custom |
| Material | Alloy Steel / Stainless Steel / Tool Steel |
| Hardness | HRC 58–62 (for hardened type) |
| Tolerance | ±0.002 mm |
| Diameter Range | Customized |
| Length Range | Customized |
| Surface Finish | Polished / Precision Ground |
| Heat Treatment | Hardened & Tempered |
| Customization | OEM/ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Positioning Accuracy
Dowel Pins provide precise alignment between components, ensuring repeatable positioning in molds, fixtures, and mechanical assemblies, which improves overall assembly consistency and reduces fitting errors in industrial production.
Excellent Wear Resistance
Made from hardened steel or stainless steel, Dowel Pins offer strong wear resistance, maintaining dimensional stability and reliable performance during repeated assembly and disassembly cycles.
Strong Structural Stability
The rigid cylindrical design ensures secure fastening and stable connection between parts, preventing misalignment and improving mechanical strength in demanding operating conditions.
Wide Material Compatibility
Dowel Pins are compatible with various materials and applications, including steel, aluminum, and tooling systems, making them suitable for diverse industrial and engineering requirements.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Tolerance Precision Up to ±0.002mm
Selected authentic ingredients 1 piece is equivalent to 5 pieces
Batch processing and customization based on drawings, free sampling.
Application Range
The preferred choice across various industries.
