Ejector Rod Guide Bushing
Ejector Rod Guide Bushing is designed to support precise and stable movement of ejector rods in mold ejector systems. It ensures accurate guiding during repetitive mold operations, helping maintain smooth axial motion and reducing system instability. With dependable structural performance and controlled movement characteristics, it enhances overall mold efficiency. This component is suitable for industrial applications requiring consistent ejector performance, reliable alignment control, and long-term operational durability in continuous production environments.
- Precise Rod Travel Guidance: ensures smooth axial movement
- Lower Surface Contact Stress: reduces friction impact
- Stable Long Cycle Operation: supports continuous usage
- Improved Ejection System Efficiency: enhances mold performance consistency
Product Description
Introduction

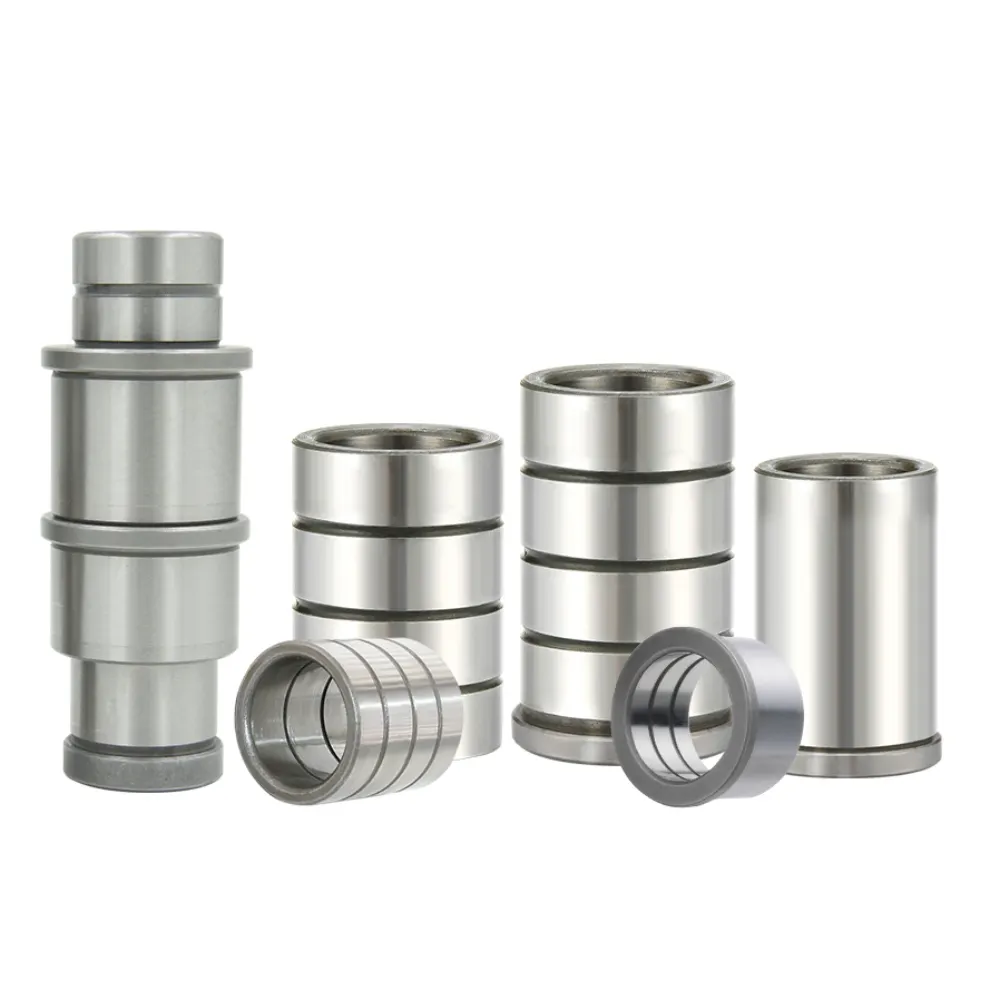

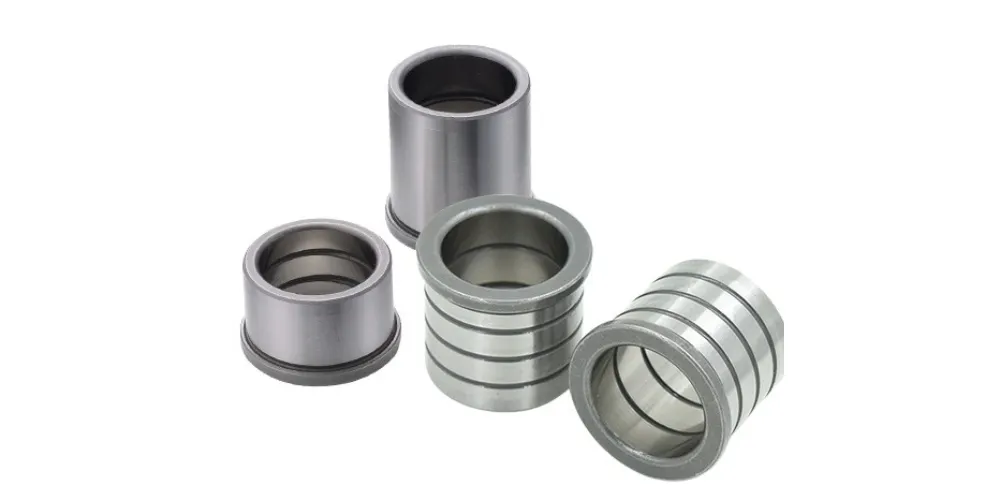

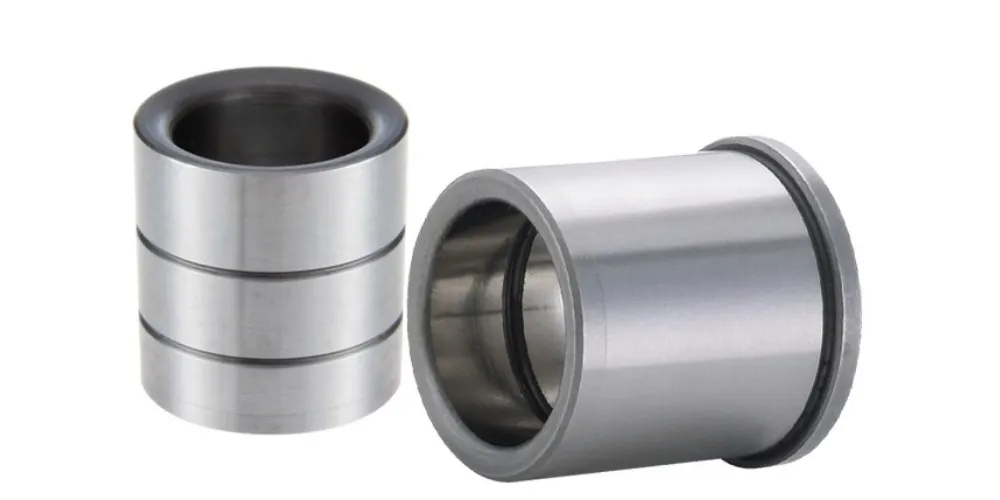

Ejector Rod Guide Bushing is a precision component used in mold ejector systems to ensure stable and accurate axial guidance of ejector rods. It helps maintain correct alignment during mold opening and closing cycles, reducing deviation and improving the smoothness of ejector movement. This contributes to more reliable mold operation and consistent performance in high-frequency production environments.
The product is manufactured from high-quality bearing steel or alloy steel and processed through advanced heat treatment and precision grinding. These processes provide excellent hardness, strong wear resistance, and stable dimensional accuracy under continuous operating conditions. The finely finished inner bore ensures smooth sliding of ejector rods, minimizing friction and mechanical resistance while extending the service life of both the guide bushing and related ejector components.
Ejector Rod Guide Bushing is widely used in injection mold ejector systems, plastic mold bases, stamping dies, die casting molds, automotive component molds, electronic product molds, and industrial tooling equipment. It is especially suitable for applications requiring precise rod guidance and stable long-term performance. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or technical requirements, making it a reliable solution for improving ejector accuracy, reducing wear, and ensuring stable operation in modern manufacturing systems.
Specifications
| Item | Description |
|---|---|
| Product Name | Ejector Rod Guide Bushing |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Straight / Flanged / Custom Type |
| Surface Finish | Precision Ground |
| Function Type | Ejector Rod Guidance |
| Tolerance | High Precision Standard |
| Size Range | Standard and Custom Sizes |
| Service Life | Long Cycle Industrial Use |
