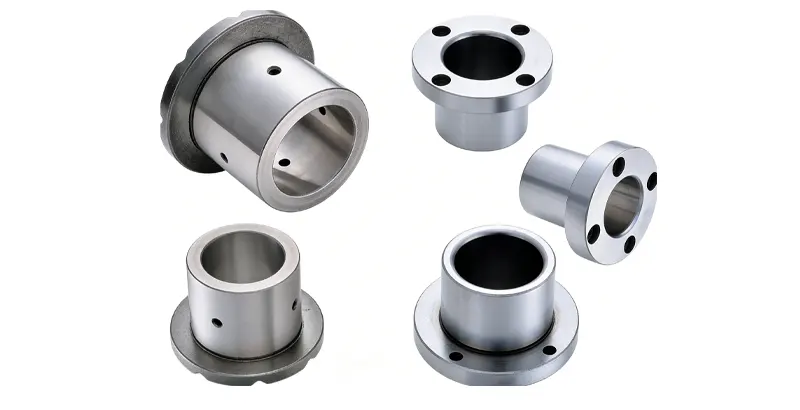

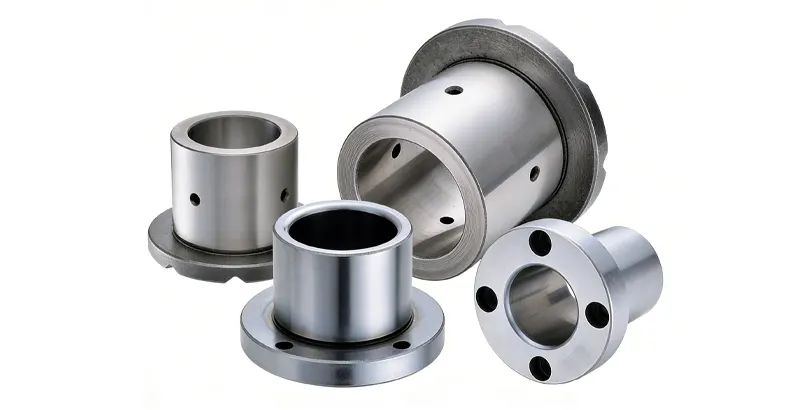

Guide Rod and Guide Bushing
A guide rod and guide bushing system is a precision alignment assembly used in molds, dies, and industrial machinery to ensure smooth, accurate, and stable linear movement between moving components. The guide rod provides rigid structural support, while the guide bushing ensures low-friction guiding and precise alignment during operation.
- Hardness: HRC58-62
- Material: SUJ2, S45C, 20Cr
- Tolerance Accuracy: ±0.005mm
- Processing Technology: High-frequency/Carburizing heat treatment
- Customization: Standard specifications in stock, non-standard can be customized
Product Description
Introduction
The guide rod and guide bushing combination improves tooling efficiency by maintaining precise alignment, reducing friction, and minimizing mechanical wear during repeated high-cycle operations. Compared with basic guiding systems, it offers higher stability, smoother motion control, and extended service life under continuous production conditions. This system is widely used in injection molding, stamping dies, automotive tooling, and precision machinery where accurate alignment, reliable operation, and reduced maintenance costs are essential for consistent product quality.
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Hardness
Strong stamping resistance. The guide bushing is made from SUJ2 material and undergoes carburizing heat treatment, offering high hardness and a 30% improvement in wear resistance.
High Fit Accuracy
Precisely matched with the guide pillar, the guide bushing and guide pillar feature high-precision sliding fit, with a gap tolerance of ±0.005mm on both sides. This ensures precise tolerances, impact resistance, and wear resistance.
High Concentricity
Concentricity within 0.01mm, with surface roughness (Ra) of 0.6-0.8. This ensures higher smoothness, better perpendicularity, and enhanced wear resistance.
High Precision
The inner and outer diameter tolerance accuracy of the guide bushing is within ±0.005mm, ensuring precise tolerances for greater durability.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Customizable Solutions
We offer tailored products and services based on your specific requirements, ensuring a perfect fit for your needs.
High-Quality Materials
We use premium materials for all our products, ensuring durability, reliability, and long-term performance.
Fast Delivery
With a large inventory and efficient production processes, we provide quick delivery at competitive prices, helping you save both time and costs.
Application Range
The preferred choice across various industries.
