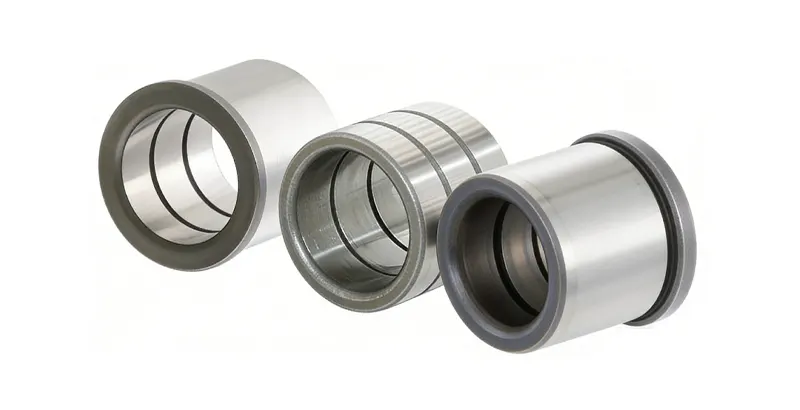

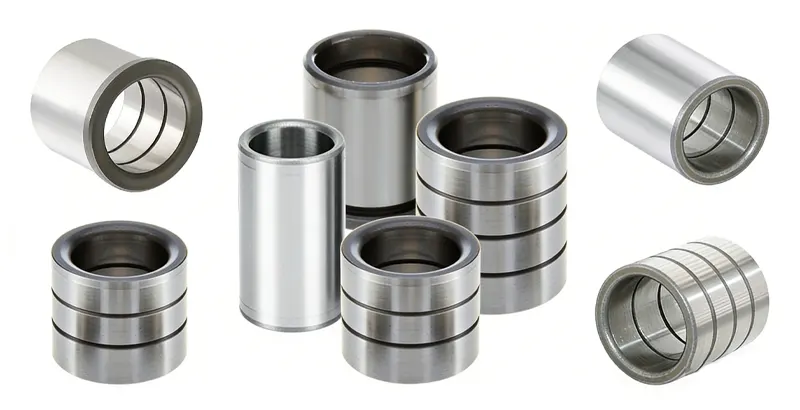

Locator Pin Guide Bushing
A locator pin guide bushing is a precision alignment component designed to ensure accurate positioning and smooth guiding of locator pins in molds, dies, and industrial tooling systems. The locator pin guide bushing is manufactured with high-strength materials and precision machining to maintain tight tolerances, reduce friction, and provide stable guiding performance during repeated assembly and production cycles.
- Factory Direct Sales: No middlemen, no markup.
- Premium Steel: Hardness HRC58-62.
- Special Processing: High-frequency/Carburizing heat treatment.
- Precision Tolerance: Can reach ±0.005mm.
- Customizable: Standard stock available, customized based on drawings.
- Quality Assurance: 100% full inspection before shipment.
Product Description
Introduction
The locator pin guide bushing improves tooling efficiency by enhancing positioning accuracy, minimizing wear between mating components, and extending the service life of mold and die systems. Compared with standard guide components, it provides higher alignment stability, smoother insertion performance, and reduced maintenance requirements in high-cycle production environments. This component is widely used in injection molding, stamping dies, automotive tooling, and precision assembly systems where reliable positioning, repeatability, and production consistency are critical.
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Hardness
Strong stamping resistance. The guide bushing is made from SUJ2 material and undergoes carburizing heat treatment, offering high hardness and a 30% improvement in wear resistance.
High Fit Accuracy
Precisely matched with the guide pillar, the guide bushing and guide pillar feature high-precision sliding fit, with a gap tolerance of ±0.005mm on both sides. This ensures precise tolerances, impact resistance, and wear resistance.
High Concentricity
Concentricity within 0.01mm, with surface roughness (Ra) of 0.6-0.8. This ensures higher smoothness, better perpendicularity, and enhanced wear resistance.
High Precision
The inner and outer diameter tolerance accuracy of the guide bushing is within ±0.005mm, ensuring precise tolerances for greater durability.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Customizable Solutions
We offer tailored products and services based on your specific requirements, ensuring a perfect fit for your needs.
High-Quality Materials
We use premium materials for all our products, ensuring durability, reliability, and long-term performance.
Fast Delivery
With a large inventory and efficient production processes, we provide quick delivery at competitive prices, helping you save both time and costs.
Application Range
The preferred choice across various industries.
