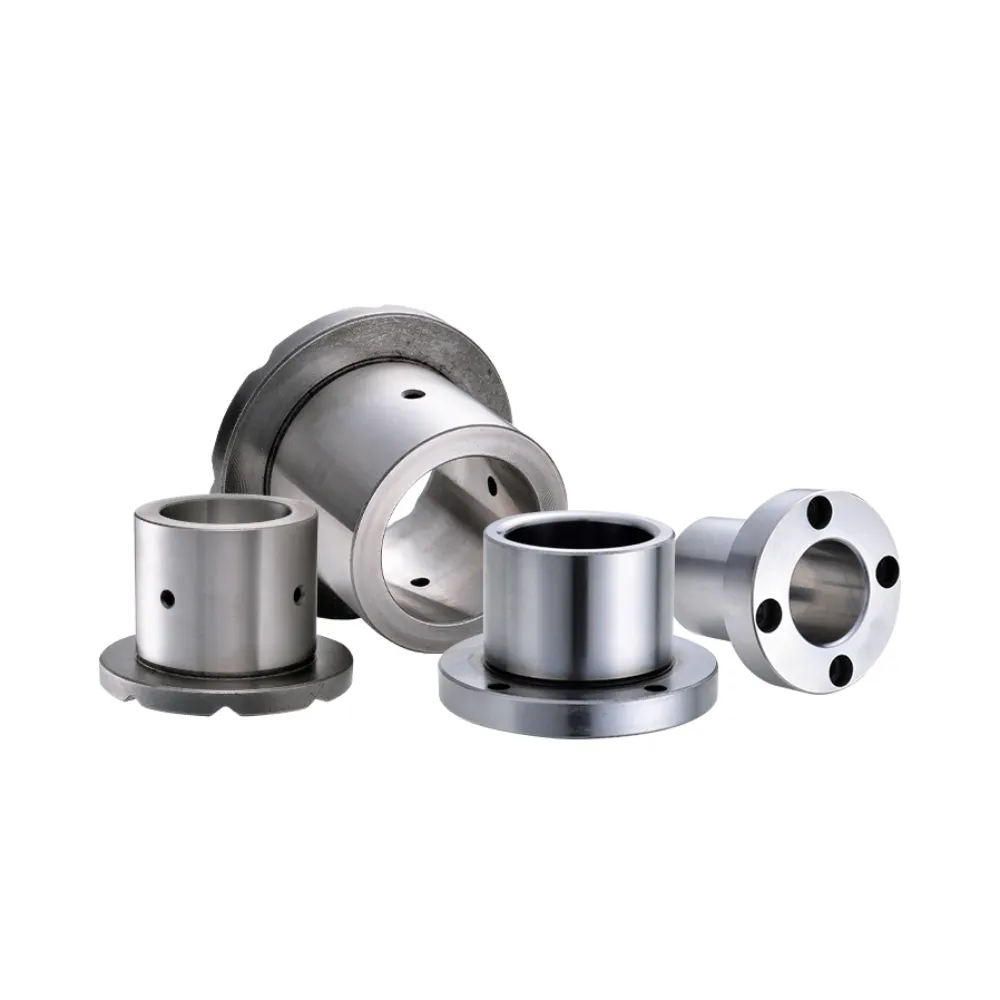

Guide Rod Bushing
Guide Rod Bushing is designed to provide stable support and accurate guiding for rod movement in mold assemblies. It helps maintain controlled linear travel of components, ensuring consistent performance during mold operation cycles. With reliable structural characteristics and precise fit design, it contributes to smoother mechanical interaction and improved system coordination. This component is suitable for industrial applications requiring dependable guidance, stable assembly behavior, and sustained functionality in continuous production environments.
- Stable Guide Rod Support Structure: maintains steady positioning
- Lower Friction Contact Interaction: reduces resistance loss
- Improved Assembly Precision Control: enhances fitting accuracy
- Consistent Long Term Reliability: ensures durable performance
Product Description
Introduction
Guide Rod Bushing is a precision component used in mold systems to ensure stable and accurate guidance of guide rods within mold base assemblies. It maintains smooth linear movement between connected mold parts, helping reduce misalignment and improve overall operational stability. This makes it essential for achieving consistent performance in high-cycle and high-precision molding environments.
The product is manufactured from high-quality bearing steel, alloy steel, or hardened tool steel and processed through heat treatment and precision grinding. These processes provide excellent hardness, strong wear resistance, and stable dimensional accuracy under continuous working conditions. The finely finished inner bore ensures smooth contact with guide rods, reducing friction and supporting low-resistance movement during repeated mold opening and closing operations.
Guide Rod Bushing is widely used in injection mold guide systems, stamping dies, plastic mold bases, die casting molds, automotive tooling, electronic component molds, and industrial machinery equipment. It is especially suitable for applications requiring precise alignment and reliable linear motion support. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or technical requirements, making it a dependable solution for improving guiding accuracy, reducing wear, and ensuring long-term operational stability in modern manufacturing systems.
Specifications
| Item | Description |
|---|---|
| Product Name | Guide Rod Bushing |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Straight / Flanged / Custom Type |
| Surface Finish | Precision Ground |
| Function Type | Guide Rod Support |
| Tolerance | High Precision Standard |
| Size Range | Standard and Custom Sizes |
| Service Life | Long Cycle Industrial Use |
