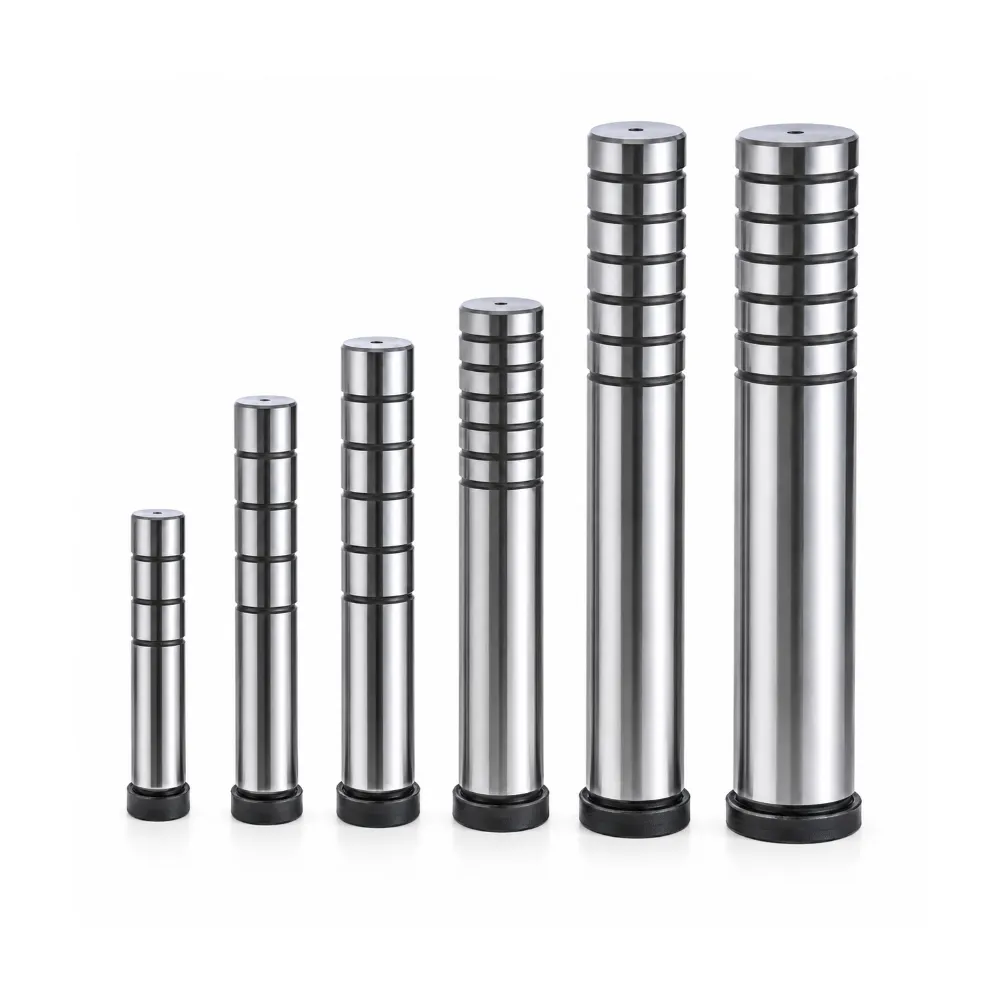

High Precision Guide Pillar
High Precision Guide Pillar is designed for advanced tooling and mold systems where exact alignment and repeatable movement are essential. Produced from premium bearing steel and finished through ultra-precision grinding processes, it delivers exceptional straightness, surface quality, and wear resistance. The high-accuracy guiding surface helps reduce positional deviation and supports stable operation over extended production periods. Commonly applied in semiconductor tooling, medical molds, electronic component manufacturing, and precision automation equipment, it ensures dependable performance in demanding environments.
- Delivers Exceptional Positioning Accuracy: Ensures precise alignment for critical applications.
- Serves Precision Manufacturing Industries: Suitable for advanced technical production.
- Maintains Long Term Dimensional Stability: Preserves accuracy throughout extended operation.
- Supports Ultra Fine Tolerances: Enables highly controlled component movement.
Product Description
Introduction
High Precision Guide Pillar is a premium mold guiding component designed for applications requiring exceptional positioning accuracy, smooth movement, and long-term dimensional stability. It is widely used in precision injection molds, stamping dies, semiconductor tooling, medical device molds, and high-accuracy automation equipment. The guide pillar ensures precise alignment between moving mold components, helping improve product consistency and manufacturing reliability.
Manufactured from high-quality bearing steel such as SUJ2 or GCr15, the High Precision Guide Pillar undergoes advanced heat treatment, precision grinding, super-finishing, and polishing processes. These manufacturing technologies provide outstanding hardness, wear resistance, straightness, and surface quality. The precision-ground guiding surface minimizes clearance variation and maintains highly accurate movement throughout extended production cycles.
High Precision Guide Pillars are suitable for precision mold bases, connector molds, optical component molds, medical equipment molds, electronic product molds, and industrial automation systems. Available in a wide range of diameters, lengths, and tolerance grades, they can satisfy both standard industrial requirements and custom engineering projects. OEM and ODM manufacturing services are available based on customer drawings and specifications.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | High Precision Guide Pillar |
| Material | SUJ2 / GCr15 Bearing Steel |
| Surface Finish | Super Precision Ground |
| Hardness | HRC 58-62 |
| Diameter Range | Ø8 mm – Ø120 mm |
| Length Range | 50 mm – 1800 mm |
| Guiding Type | Precision Alignment Guidance |
| Straightness | ≤0.002 mm/100 mm |
| Surface Treatment | Hard Chrome Optional |
| Installation Type | Press Fit / Custom Mounting |
| Precision Grade | Ultra High Precision |
| Operating Condition | Continuous Industrial Operation |
| Service Life | Long-Term Industrial Use |
| Customization | OEM & ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Achieves Exceptional Positioning Accuracy
Manufactured to tight tolerances, ensuring highly precise alignment for demanding applications where dimensional consistency is critical to product quality.
Ideal For Precision Manufacturing Industries
Widely used in medical, electronic, semiconductor, and optical tooling systems requiring reliable guidance and exact component positioning.
Maintains Superior Dimensional Stability
Advanced material processing helps preserve geometric accuracy under continuous operation, supporting dependable long-term guiding performance.
Supports Ultra-Fine Tolerance Requirements
Designed for applications requiring extremely small clearance variations, enabling accurate movement and improved assembly precision.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
What is a High Precision Guide Pillar?
A High Precision Guide Pillar is a precision alignment component used in molds, dies, and automation systems to ensure accurate positioning and smooth guiding performance.
What are the benefits of a High Precision Guide Pillar?
It provides superior alignment accuracy, excellent dimensional stability, reduced wear, smooth movement, and reliable long-term operation.
What materials are commonly used for High Precision Guide Pillars?
High Precision Guide Pillars are typically manufactured from SUJ2 or GCr15 bearing steel, offering high hardness, wear resistance, and durability.
Can High Precision Guide Pillars be customized?
Yes. Custom diameters, lengths, tolerances, surface treatments, mounting configurations, and precision grades can be produced according to customer specifications.
Where are High Precision Guide Pillars commonly used?
They are widely used in precision injection molds, stamping dies, semiconductor tooling, medical device molds, electronic component molds, optical product molds, and industrial automation equipment.
