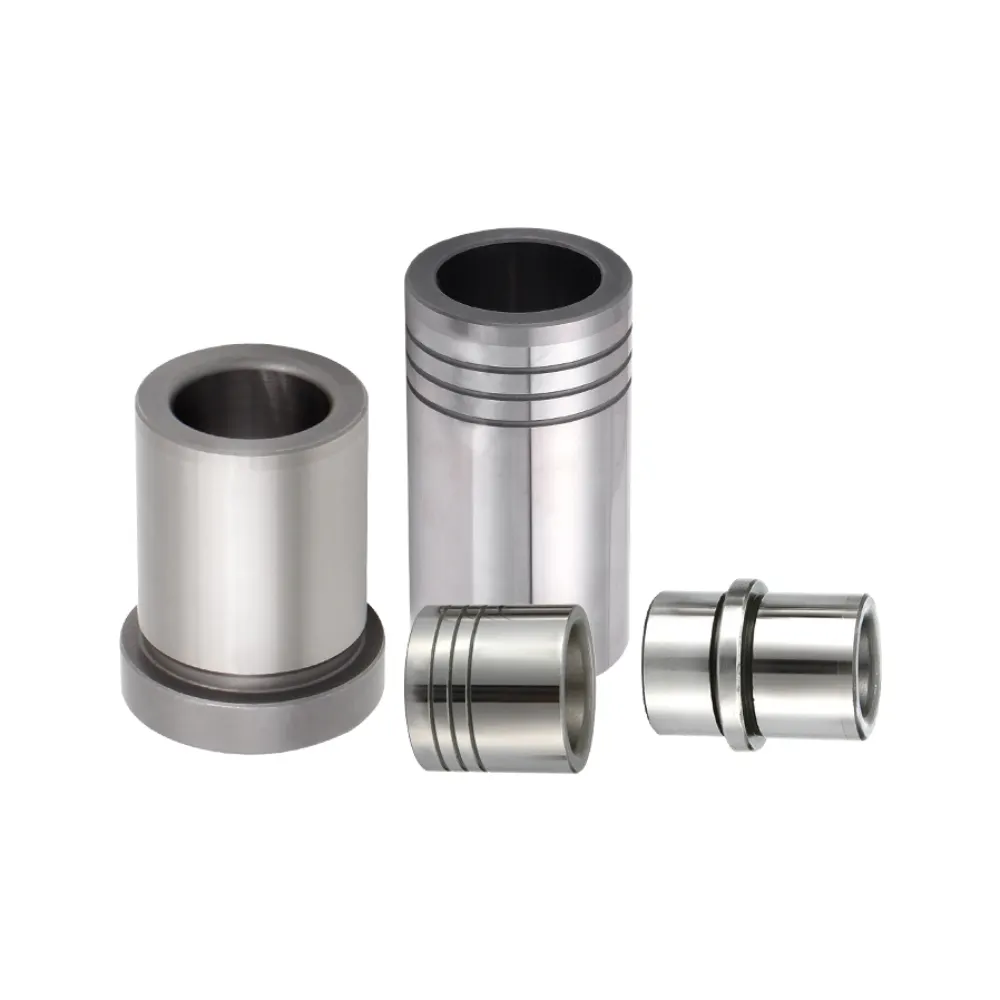

Injection Mold Guide Bushing
Injection Mold Guide Bushing is a precision mold component designed to support accurate guiding and alignment in injection molding systems. It helps ensure stable movement between mold parts during operation and improves overall production consistency. Built for industrial use, it performs reliably under repeated cycles and is suitable for various plastic molding applications requiring dependable alignment performance.
- Dimensional Accuracy: Maintains precise mold fitting
- Operational Stability: Supports steady production cycles
- Reduced Maintenance: Lowers servicing requirements
- Extended Durability: Improves long-term usage lifespan
Product Description
Introduction
Injection Mold Guide Bushing is a precision-engineered component used in plastic injection mold systems to ensure accurate alignment between guide pillars and mold plates. It plays an essential role in maintaining stable mold movement, reducing friction, and improving positioning accuracy during high-speed and high-pressure injection molding operations. It is widely applied in modern manufacturing environments where consistency and reliability are required.
Manufactured from high-quality materials such as hardened tool steel, bronze, or self-lubricating composites, Injection Mold Guide Bushing provides excellent wear resistance, structural strength, and long service life. Through advanced CNC machining, internal precision grinding, and heat treatment processes, it achieves tight dimensional tolerances up to ±0.002 mm. The smooth inner surface ensures stable guiding performance and reduces wear between moving components even under continuous production cycles.
Injection Mold Guide Bushing is widely used in automotive plastic parts, electronic housings, household appliances, medical device components, and precision industrial products. It is suitable for both standard and non-standard mold structures, especially in high-volume production environments. Customization options include inner diameter, outer diameter, length, lubrication type, and material selection. This flexibility allows it to meet diverse engineering requirements and ensures reliable performance across different injection molding applications.
Specifications
| Item | Description |
|---|---|
| Product Name | Injection Mold Guide Bushing |
| Material | Hardened Steel / Bronze / Self-lubricating Alloy |
| Hardness | HRC 58–62 (steel type) |
| Tolerance | ±0.002 mm |
| Inner Diameter | Customized |
| Outer Diameter | Customized |
| Length | Customized |
| Surface Finish | Precision Ground / Polished |
| Lubrication Type | Oil groove / Oil-free optional |
| Manufacturing Process | CNC Machining + Grinding + Heat Treatment |
| Customization | OEM / ODM Available |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
High Alignment Precision
Injection Mold Guide Bushing ensures accurate positioning between guide pillars and mold plates, maintaining stable mold alignment and reducing deviation during high-speed injection molding operations.
Excellent Wear Resistance
Manufactured from hardened steel or bronze materials, it provides strong resistance to friction and abrasion, extending service life under continuous and high-cycle production conditions.
Smooth Guiding Performance
Precision machining and fine internal finishing reduce friction between components, ensuring smooth movement and improving overall mold operating efficiency.
Strong Load Capacity
Designed to withstand high injection pressure and repeated mechanical stress, it maintains structural stability and reliable performance in demanding industrial environments.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
