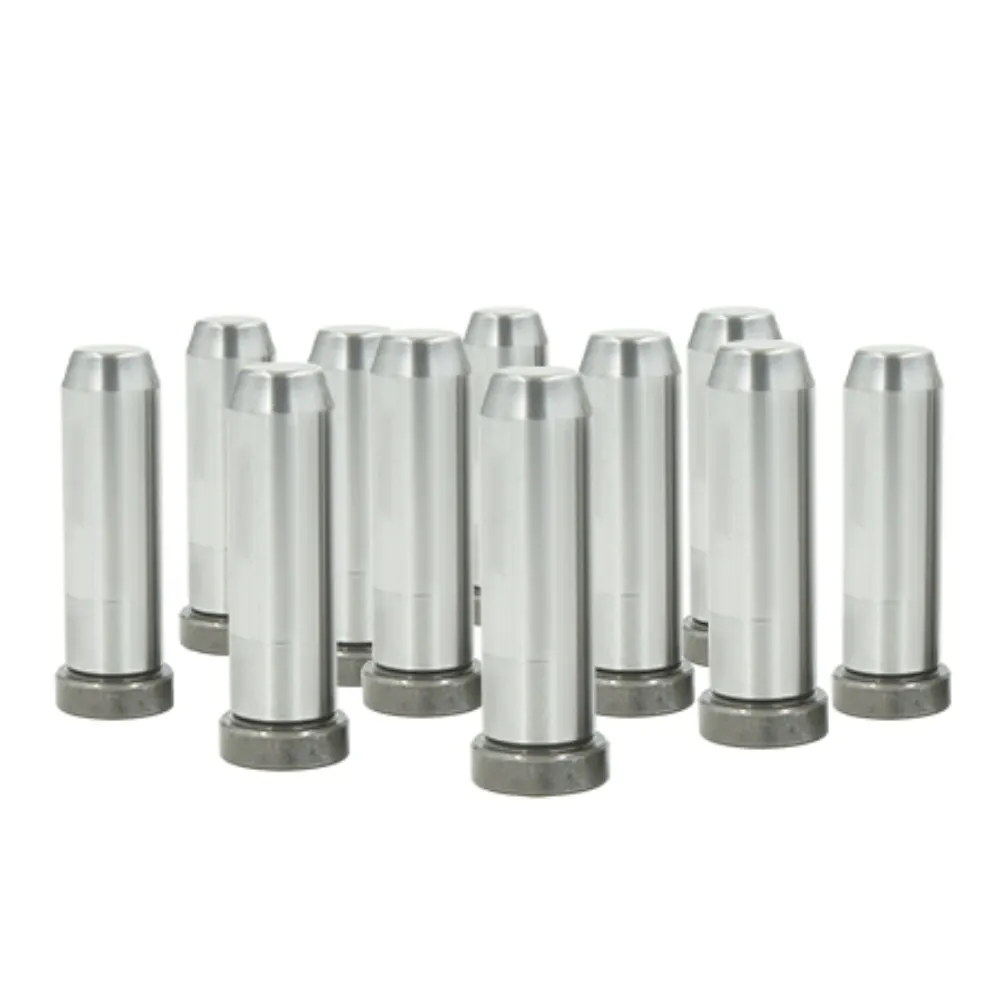

Injection Mold Angled Guide Pillar
Injection Mold Angled Guide Pillar is developed for mold systems that require precise directional control and coordinated movement along inclined paths. It supports accurate guidance in complex mold structures, helping components follow defined angular trajectories during operation. This improves assembly coordination and ensures stable mechanical interaction. With durable construction and consistent guiding behavior, it is suitable for industrial applications that demand reliable motion control, structural stability, and long-term performance in multi-directional molding environments.
- Stable Inclined Motion Guidance: ensures smooth directional travel
- Improved Mold Action Synchronization: enhances coordinated operation
- Lower Wear Contact Stress: reduces surface damage
- Reliable Complex Structure Support: maintains system stability
Product Description
Introduction
Injection Mold Angled Guide Pillar is a precision-engineered component used in injection mold systems to achieve controlled angled guiding movement. It is designed for molds that require side action, inclined motion, or coordinated multi-directional operation. By guiding components along a defined angle, it ensures accurate positioning, smooth motion transfer, and improved stability during mold opening and closing cycles. This helps enhance overall mold performance in complex tooling structures.
The product is manufactured from high-quality bearing steel, alloy steel, or hardened tool steel and undergoes heat treatment and precision grinding. These processes provide excellent hardness, strong wear resistance, and stable dimensional accuracy. The finely machined angled surface ensures smooth engagement with corresponding guide bushings or sliding components, allowing reliable motion control under repeated high-load and high-cycle production conditions.
Injection Mold Angled Guide Pillar is widely used in plastic injection molds, automotive component molds, electronic product housings, appliance manufacturing molds, and industrial tooling systems. It is especially suitable for applications requiring angled movement coordination and precise alignment in complex mold structures. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or technical requirements, making it a dependable solution for improving motion accuracy, reducing wear, and ensuring stable long-term performance in modern mold manufacturing environments.
Specifications
| Item | Description |
|---|---|
| Product Name | Injection Mold Angled Guide Pillar |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Angled / Inclined Guide Type |
| Surface Finish | Precision Ground |
| Function Type | Mold Angle Guidance |
| Tolerance | High Precision Standard |
| Size Range | Standard and Custom Sizes |
| Service Life | Long Cycle Industrial Use |
