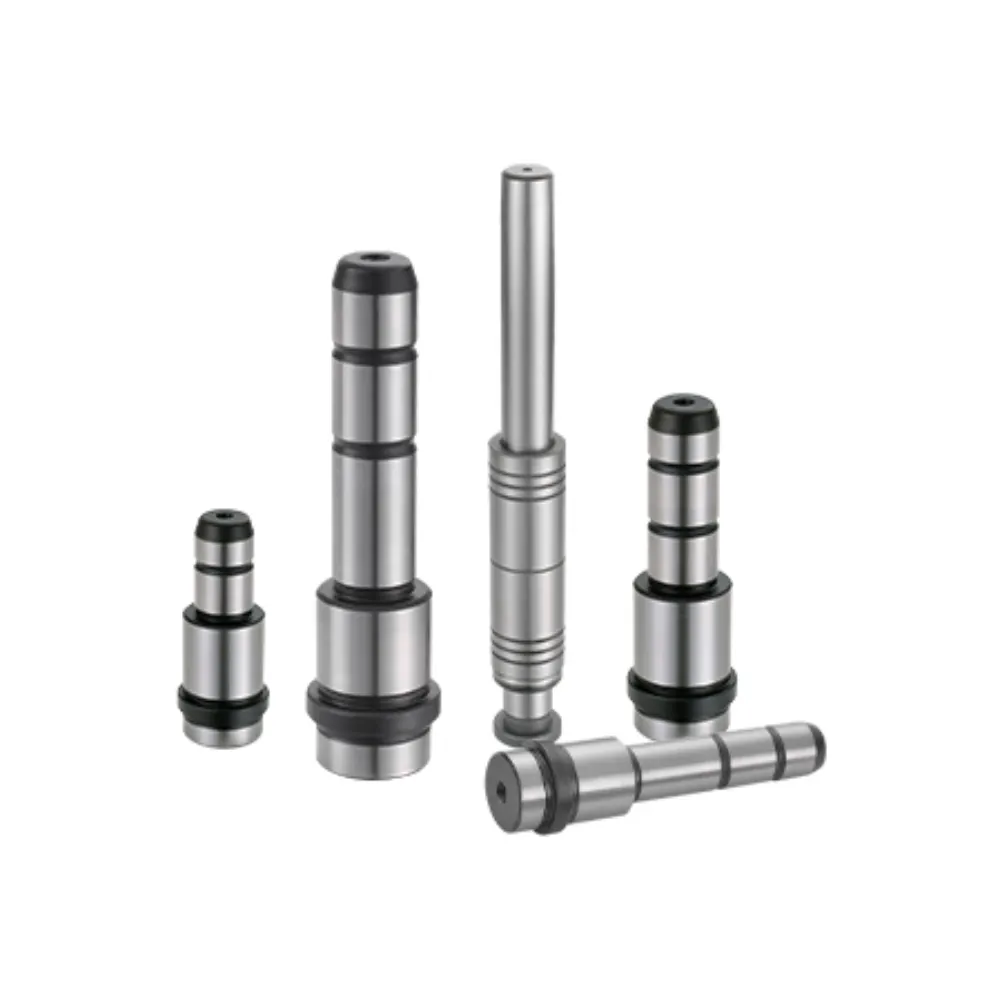

Injection Mold Guide Pillar
Injection Mold Guide Pillar is designed to provide dependable guidance and positioning support within mold assemblies. It helps ensure accurate movement between mating mold components while maintaining alignment consistency during operation. The robust structure enhances mechanical stability and contributes to smooth mold functionality across repeated production cycles. Suitable for a wide range of molding applications, it delivers reliable guiding performance, supports efficient manufacturing processes, and helps maintain operational precision in demanding industrial environments.
- Consistent Alignment Control Stability: ensures precise positioning
- Improved Mechanical Load Distribution: reduces stress concentration
- Enhanced Motion Smoothness Performance: improves operational flow
- Reliable Long Term Durability: supports extended service life
Product Description
Introduction
Injection Mold Guide Pillar is an essential component used in mold base systems to ensure precise alignment and stable guidance during mold opening and closing operations. It helps maintain accurate positioning between mold halves, preventing deviation and supporting smooth mechanical movement throughout the molding process. By providing reliable guiding performance, it contributes to improved product consistency and efficient production in high-volume manufacturing environments.
The product is manufactured from premium bearing steel, alloy steel, or hardened tool steel and is processed through advanced heat treatment and precision grinding. These manufacturing techniques provide excellent surface hardness, high wear resistance, and long-term dimensional stability. The accurately finished outer surface allows smooth engagement with matching guide bushings, reducing friction and ensuring dependable guiding performance under continuous operating conditions.
Injection Mold Guide Pillar is widely used in plastic injection molds, automotive component molds, consumer electronics housings, household appliance molds, packaging molds, and industrial tooling systems. It is particularly suitable for applications requiring high positioning accuracy and dependable mold alignment. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to customer drawings and technical specifications. With strong durability and consistent performance, it helps extend mold service life, reduce maintenance requirements, and maintain stable operation in modern precision mold manufacturing applications.
Specifications
| Item | Description |
|---|---|
| Product Name | Injection Mold Guide Pillar |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Straight Guide Pillar |
| Surface Finish | Precision Ground |
| Function Type | Mold Alignment & Guidance |
| Tolerance | High Precision Standard |
| Size Range | Standard and Custom Sizes |
| Service Life | Long Cycle Industrial Use |
Three Key Customization Aspects, Tailored to Your Needs
Matching different customization methods to meet various requirements.
Precision Manufacturing, Excellent Quality
Accurate Mold Positioning Performance
Maintains precise alignment between mold sections, ensuring consistent positioning accuracy and supporting stable molding results throughout repeated production cycles.
Excellent Surface Hardness Strength
Heat-treated materials provide outstanding hardness characteristics, improving durability and maintaining reliable guiding performance under demanding industrial operating conditions.
Smooth Guide System Operation
Precision-machined surfaces enable seamless interaction with guide bushings, promoting stable movement and reducing operational resistance during mold operation.
Extended Mold Service Reliability
Designed for long-term industrial use, helping reduce maintenance frequency and supporting dependable mold performance in continuous manufacturing environments.
Refined Service, Shortened Delivery Time
From design review to delivery, we provide dedicated one-on-one follow-up throughout the entire process.
Consultation → Provide Drawings → Design Review & Quotation → Order Processing → Quality Inspection → On-time Delivery → After-sales Follow-up
Our Advantages
Backed by over 25 years of engineering experience, our team offers comprehensive services—from customized mold design and precision machining to full-scale production—supported by a robust quality assurance system and proactive customer service. Certified under ISO9001, ISO14001, and IATF 16949, we continually strive for excellence in quality, innovation, and customer satisfaction.
Over 100,000 units in stock, with 2-hour shipment for standard products.
Implementing a three-stage inspection system—initial material check, in-process inspection, and final inspection.
Large inventory and quick turnaround, ensuring on-time delivery with 100% product inspection.
Application Range
The preferred choice across various industries.
FAQ
1. What is an Injection Mold Guide Pillar used for?
It is used to ensure precise alignment and smooth guiding between mold halves during opening and closing operations.
2. What is its main function?
Its main function is to maintain accurate mold positioning and support stable movement throughout the injection molding process.
3. Where is it commonly applied?
It is widely used in plastic injection molds, automotive parts molds, electronic housings, and industrial tooling systems.
4. What materials are used in production?
It is typically made from bearing steel or alloy steel with heat treatment and precision grinding for strength and durability.
5. Can it be customized?
Yes, OEM customization is available, including size, tolerance, and material according to customer requirements.
