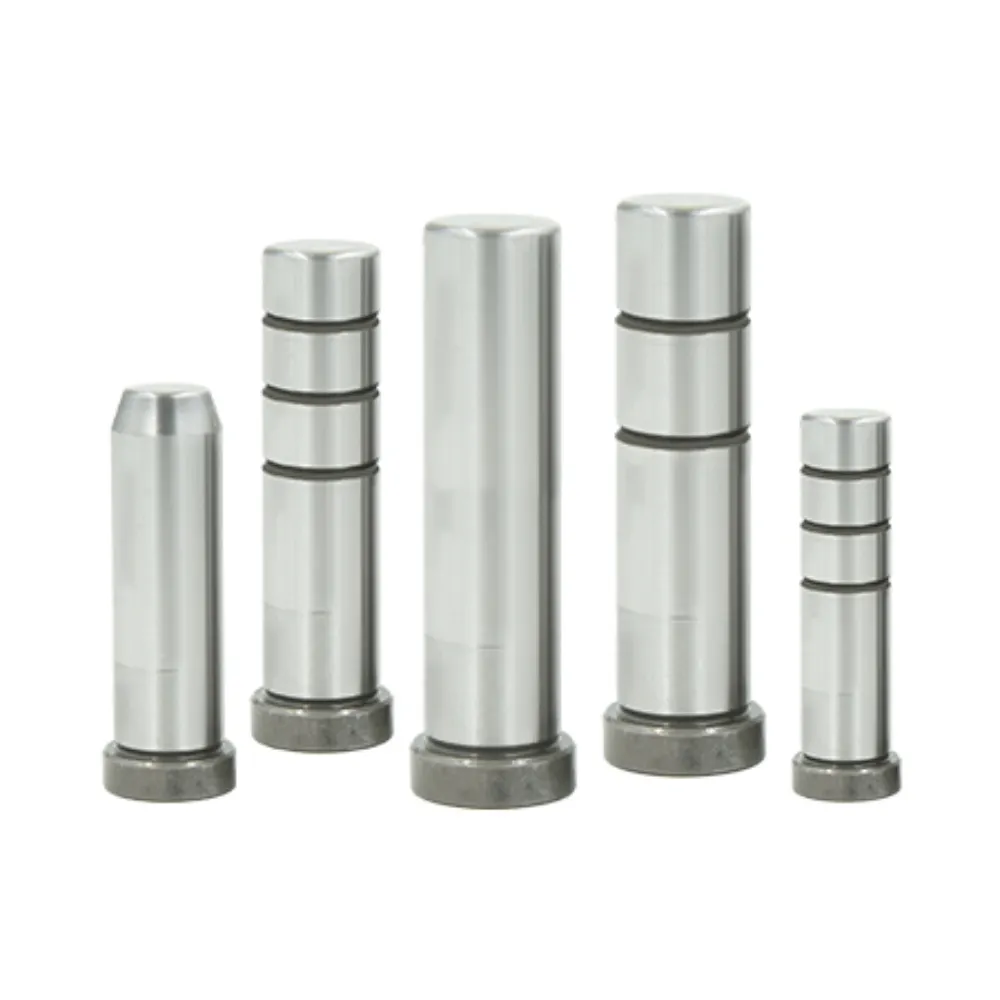

Injection Mold Guide Post
Injection Mold Guide Post is designed to provide stable and precise guidance within mold assembly systems, ensuring reliable alignment during repeated production cycles. It supports smooth interaction between mold components and helps maintain consistent structural positioning throughout operation. The design contributes to improved mechanical coordination and reduces deviation risks. With durable construction and dependable guiding function, it is suitable for industrial environments that require long-term stability, operational consistency, and efficient mold performance in high-demand manufacturing applications.
- Stable Mold Movement Support: ensures consistent operation
- Enhanced Positioning Reliability: improves alignment precision
- Reduced Mechanical Wear Impact: extends service life
- Efficient Cycle Performance Output: supports continuous production
Product Description
Introduction
Injection Mold Guide Post is a precision component used in mold base systems to ensure accurate alignment and stable guidance between upper and lower mold halves. It helps maintain consistent positioning during mold opening and closing operations, reducing misalignment and improving overall operational stability. By supporting smooth guiding movement, it enhances mold performance and contributes to reliable production quality in high-volume injection molding processes.
The product is manufactured from high-quality bearing steel, alloy steel, or hardened tool steel, and undergoes heat treatment and precision grinding. These processes provide excellent hardness, strong wear resistance, and stable dimensional accuracy. The finely polished surface ensures smooth engagement with guide bushings, reducing friction and maintaining consistent guiding performance under continuous and repetitive production cycles.
Injection Mold Guide Post is widely used in plastic injection molds, automotive component molds, electronic product housings, household appliance molds, packaging molds, and industrial tooling systems. It is particularly suitable for applications requiring high alignment precision and stable mold movement. Compatible with international standards such as MISUMI, HASCO, DME, DIN, and ISO, it can also be customized according to drawings or technical requirements. With its reliable guiding performance and durable structure, it helps improve mold efficiency, extend service life, and ensure stable operation in modern precision manufacturing environments.
Specifications
| Item | Description |
|---|---|
| Product Name | Injection Mold Guide Post |
| Material | SUJ2, GCr15, SKD11, Alloy Steel |
| Hardness | HRC 58–62 |
| Structure Type | Straight Guide Post |
| Surface Finish | Precision Ground |
| Function Type | Mold Alignment Guidance |
| Tolerance | High Precision Standard |
| Size Range | Standard and Custom Sizes |
| Service Life | Long Cycle Industrial Use |
